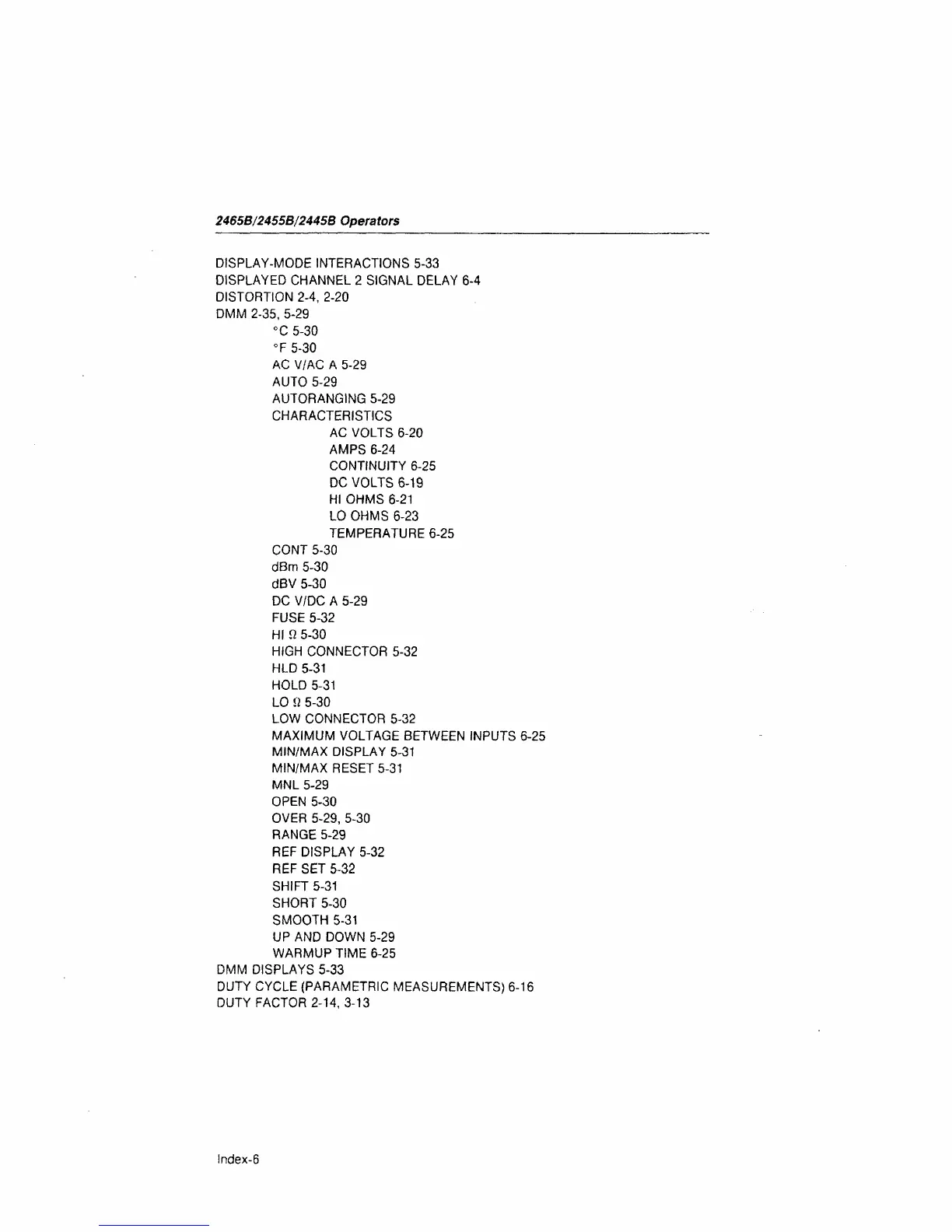

2465B/2455B/2445B Operators
DISPLAY-MODE INTERACTIONS 5-33
DISPLAYED CHANNEL 2 SIGNAL DELAY 6-4
DISTORTION 2-4, 2-20
DMM 2-35, 5-29
°C 5-30
°F 5-30
AC V/AC A 5-29
AUTO 5-29
AUTORANGING 5-29
CHARACTERISTICS
AC VOLTS 6-20
AMPS 6-24
CONTINUITY 6-25
DC VOLTS 6-19
HI OHMS 6-21
LO OHMS 6-23
TEMPERATURE 6-25
CONT 5-30
dBm 5-30
dBV 5-30
DC V/DC A 5-29
FUSE 5-32
HI Q 5-30
HIGH CONNECTOR 5-32
HLD 5-31
HOLD 5-31
LO fi 5-30
LOW CONNECTOR 5-32
MAXIMUM VOLTAGE BETWEEN INPUTS 6-25
MIN/MAX DISPLAY 5-31
MIN/MAX RESET 5-31
MNL 5-29
OPEN 5-30
OVER 5-29, 5-30
RANGE 5-29
REF DISPLAY 5-32
REF SET 5-32
SHIFT 5-31
SHORT 5-30
SMOOTH 5-31
UP AND DOWN 5-29
WARMUP TIME 6-25
DMM DISPLAYS 5-33
DUTY CYCLE (PARAMETRIC MEASUREMENTS) 6-16
DUTY FACTOR 2-14, 3-13
