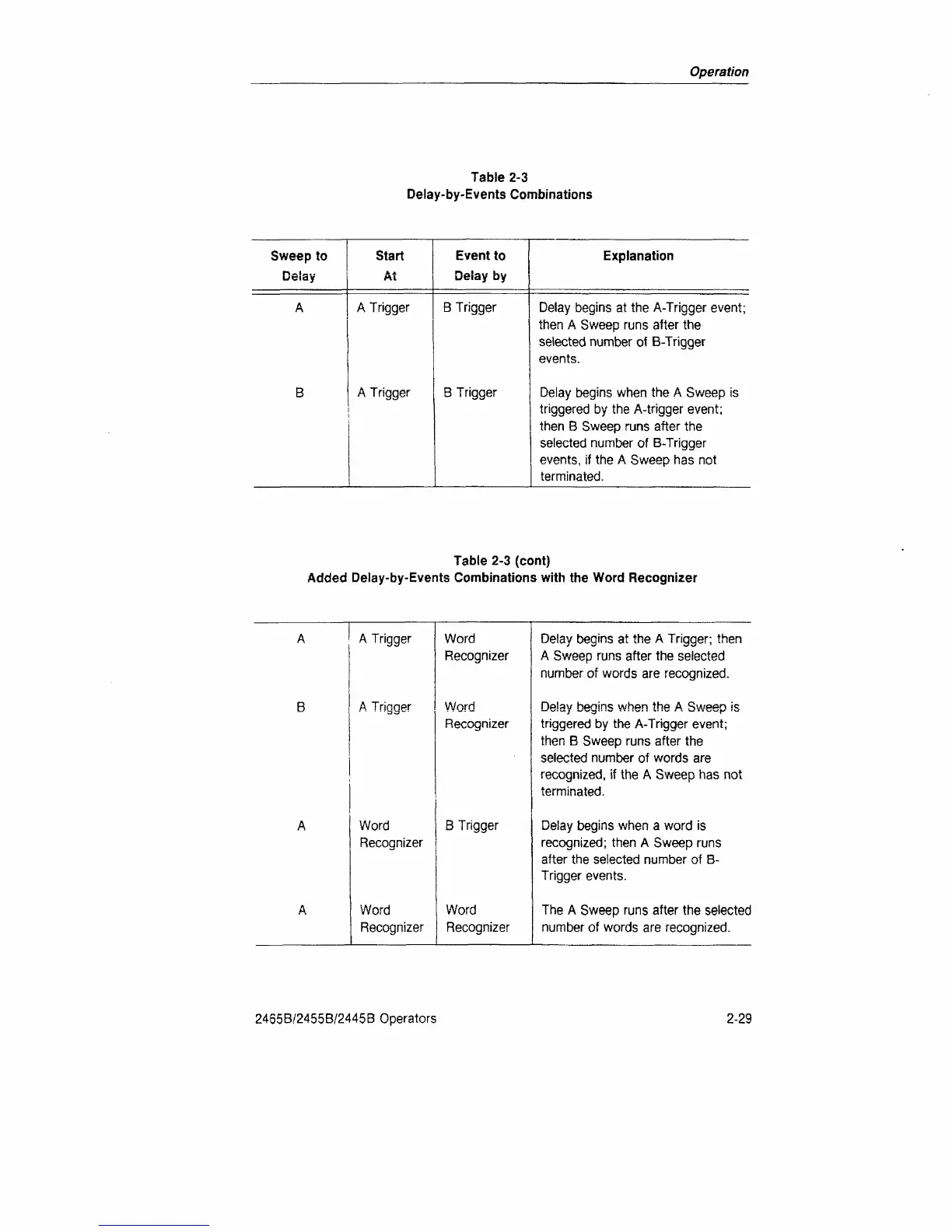

Tektronix 2465B Operator's Manual

Operation
Table 2-3
Delay-by-Events Combinations
Sweep to
Delay
A
B
Start
Ml
A Trigger
A Trigger
Event to
Delay by
B Trigger
B Trigger
Explanation
Delay begins at the A-Trigger event;
then A Sweep runs after the
selected number of B-Trigger
events.
Delay begins when the A Sweep is
triggered by the A-trigger event;
then B Sweep runs after the
selected number of B-Trigger
events, if the A Sweep has not
terminated.
Table 2-3 (cont)
Added Delay-by-Events Combinations with the Word Recognizer
A
B
A
A
A Trigger
A Trigger
Word
Recognizer
Word
Recognizer
Word
Recognizer
Word
Recognizer
B Trigger
Word
Recognizer
Delay begins at the A Trigger; then
A Sweep runs after the selected
number of words are recognized.
Dplav hpnin<: whon thp A £u«apn ic
triggered by the A-Trigger event;
then B Sweep runs after the
selected number of words are
recognized, if the A Sweep has not
terminated.
Delay begins when a word is
recognized; then A Sweep runs
after the selected number of B-
Trigger events.
The A Sweep runs after the selected
number of words are recognized.
2465B/2455B/2445B Operators
2-29

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
