Tektronix 2465B Operator's Manual

Applications

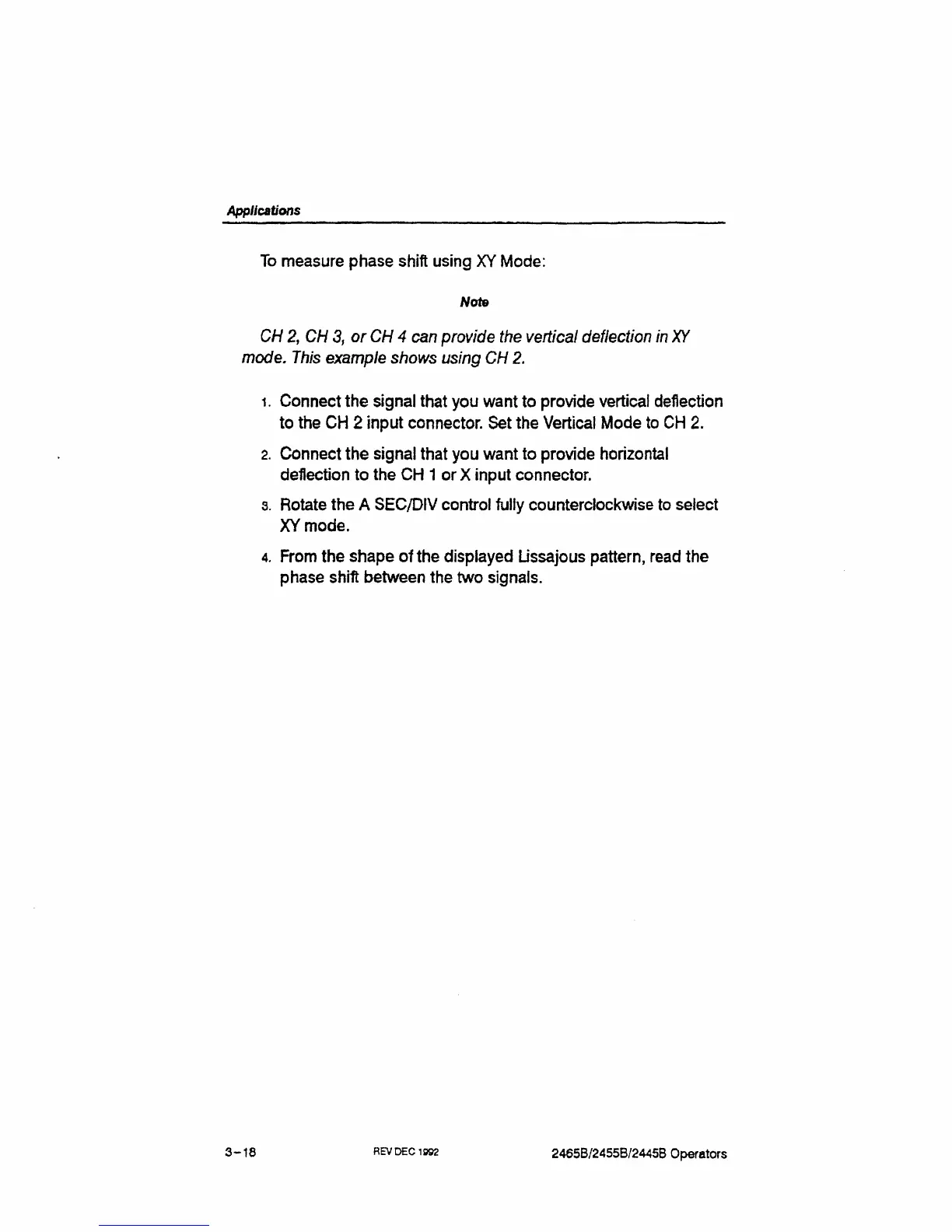

To measure phase shift using XY Mode:
Note
CH 2, CH 3, or CH 4 can provide the vertical deflection in XY
mode. This example shows using CH 2.
1. Connect the signal that you want to provide vertical deflection
to the CH 2 input connector. Set the Vertical Mode to CH 2.
2. Connect the signal that you want to provide horizontal
deflection to the CH 1 or X input connector.
a. Rotate the A SEC/DIV control fully counterclockwise to select
XY mode.
A. From the shape of the displayed Lissajous pattern, read the
phase shift between the two signals.
3-18
REV DEC 1082
2465B/2455B/2445B Operators

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
