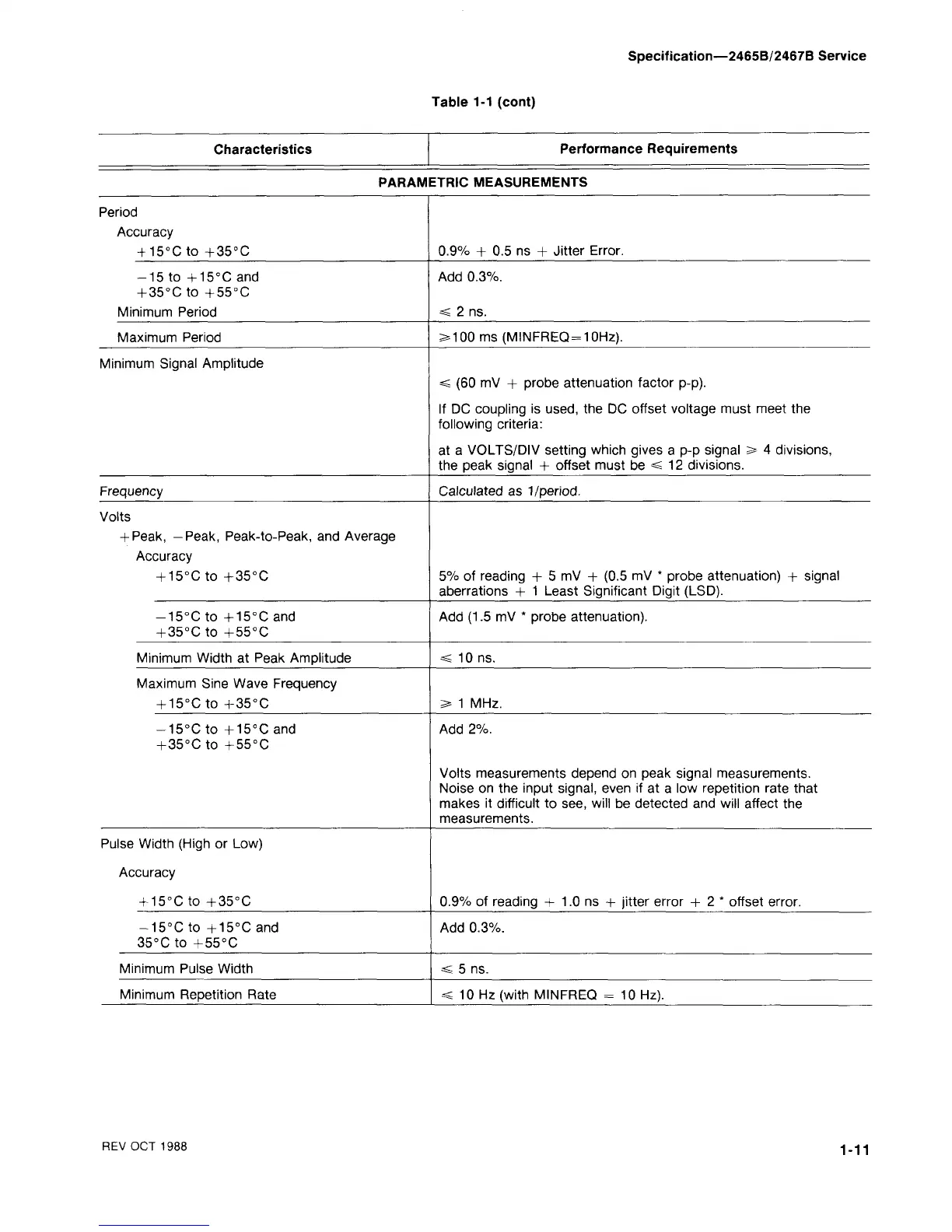

Specification—2465B/2467B Service
Table 1-1 (cont)
Characteristics
Performance Requirements
PARAMETRIC MEASUREMENTS
Period
Accuracy
4l5°Cto + 35°C
-15 to +15°C and
+ 35°C to +55°C
Minimum Period
Maximum Period
Minimum Signal Amplitude
Frequency
Volts
+ Peak, -Peak, Peak-to-Peak,
Accuracy
+ 15°C to +35°C
and Average
-15°C to + 15°Cand
+ 35°Cto +55°C
Minimum Width at Peak Amplitude
Maximum Sine Wave Frequency
+ 15°Cto + 35°C
-15°C to +15°Cand
+ 35°Cto +55°C
Pulse Width (High or Low)
Accuracy
+ 15°C to +35°C
-15°C to + 15°Cand
35°C to + 55°C
0.9% + 0.5 ns + Jitter Error.
Add 0.3%.
=s 2 ns.
>100 ms (MINFREQ = 10Hz).
«s (60 mV + probe attenuation factor p-p).
If DC coupling is used, the DC offset voltage must meet the
following criteria:
at a VOLTS/DIV setting which gives a p-p signal > 4 divisions,
the peak signal + offset must be =£ 12 divisions.
Calculated as 1/period.
5% of reading + 5 mV + (0.5 mV * probe attenuation) + signal
aberrations + 1 Least Significant Digit (LSD).
Add (1.5 mV * probe attenuation).
=s 10 ns.
> 1 MHz.
Add 2%.
Volts measurements depend on peak signal measurements.
Noise on the input signal, even if at a low repetition rate that
makes it difficult to see, will be detected and will affect the
measurements.
0.9% of reading + 1.0 ns + jitter error + 2 * offset error.
Add 0.3%.
Minimum Pulse Width 5 ns.
Minimum Repetition Rate
10 Hz (with MINFREQ = 10 Hz).
REV OCT 1988
1-11
