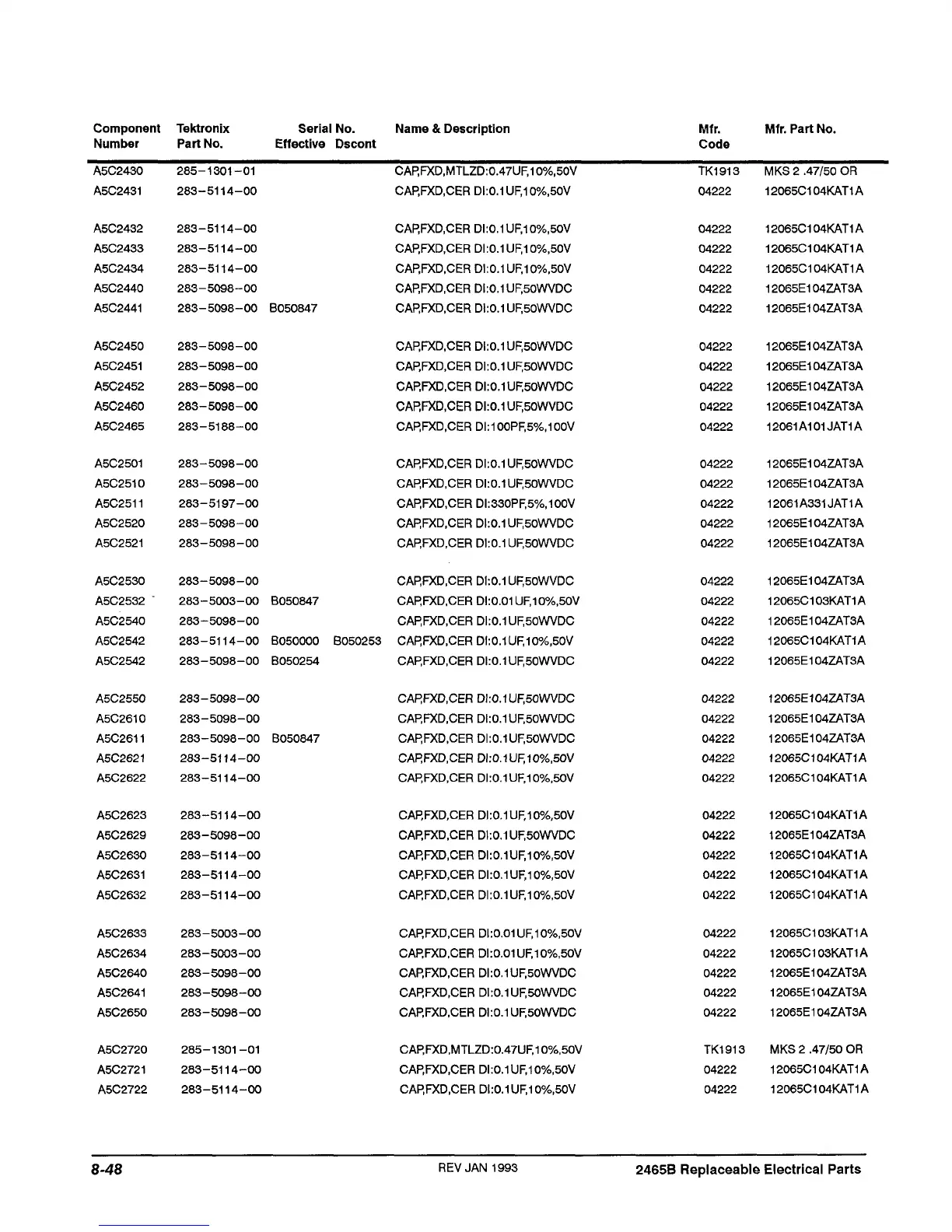

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A5C2430 285-1301-01
A5C2431 283-5114-00
A5C2432 283-5114-00
A5C2433 283-5114-00
A5C2434 283-5114-00
A5C2440 283-5098-00
A5C2441 283-5098-00 B050847
A5C2450 283-5098-00
A5C2451 283-5098-00
A5C2452 283-5098-00
A5C2460 283-5098-00
A5C2465 283-5188-00
A5C2501 283-5098-00
A5C2510 283-5098-00
A5C2511 283-5197-00
A5C2520 283-5098-00
A5C2521 283-5098-00
A5C2530 283-5098-00
A5C2532 " 283-5003-00 B050847
A5C2540 283-5098-00
A5C2542 283-5114-00 B050000
A5C2542 283-5098-00 B050254
A5C2550 283-5098-00
A5C2610 283-5098-00
A5C2611 283-5098-00 B050847
A5C2621 283-5114-00
A5C2622 283-5114-00
A5C2623 283-5114-00
A5C2629 283-5098-00
A5C2630 283-5114-00
A5C2631 283-5114-00
A5C2632 283-5114-00
A5C2633 283-5003-00
A5C2634 283-5003-00
A5C2640 283-5098-00
A5C2641 283-5098-00
A5C2650 283-5098-00
A5C2720 285-1301-01
A5C2721 283-5114-00
A5C2722 283-5114-00
B050253
CAP,FXD,MTLZD:0.47UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:100PF,5%,100V
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:330PF,5%,100V
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.01UF,10%,50V
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.01UF,10%,50V
CARFXD.CER DI:0.01UF,10%,50V
CARFXD.CER DI:0.1UF,50WVDC
CARFXD.CER D1:0.1UF,50WVDC
CARFXD.CER
Dl:0.1
UF.50WVDC
CARFXD,MTLZD:0.47UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
CARFXD.CER DI:0.1UF,10%,50V
TK1913
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
04222
MKS 2
.47/50
OR
12065C104KAT1A
12065C104KAT1A
12065C104KAT1A
12065C104KAT1A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
12061A101JAT1A
12065E104ZAT3A
12065E104ZAT3A
12061A331JAT1A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
12065C103KAT1A
12065E104ZAT3A
12065C104KAT1A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
12065C104KAT1A
12065C104KAT1A
12065C104KAT1A
12065E104ZAT3A
12065C104KAT1A
12065C104KAT1A
12065C104KAT1A
12065C103KAT1A
12065C103KAT1A
12065E104ZAT3A
12065E104ZAT3A
12065E104ZAT3A
TK1913 MKS
2.47/50
OR
04222 12065C104KAT1A
04222 12065C104KAT1A
8-48
REV JAN 1993 2465B Replaceable Electrical Parts
