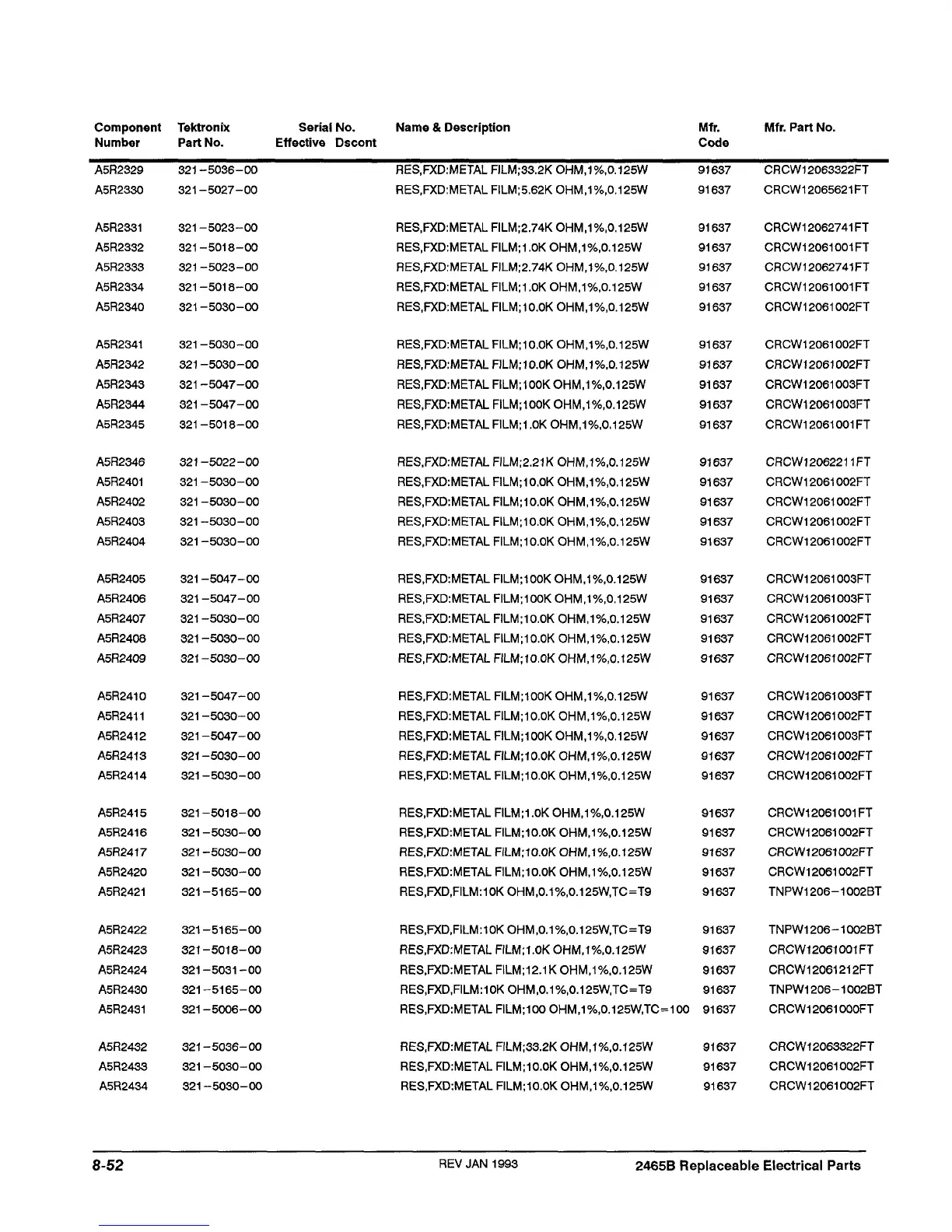

Tektronix 2465B Service Manual

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A5R2329
A5R2330
A5R2331
A5R2332
A5R2333
A5R2334
A5R2340
A5R2341
A5R2342
A5R2343
A5R2344
A5R2345
A5R2346
A5R2401
A5R2402
A5R2403
A5R2404
A5R2405
A5R2406
A5R2407
A5R2408
A5R2409
A5R2410
A5R2411
A5R2412
A5R2413
A5R2414
A5R2415
A5R2416
A5R2417
A5R2420
A5R2421
A5R2422
A5R2423
A5R2424
A5R2430
A5R2431
A5R2432
A5R2433
A5R2434
321 -5036-00
321 -5027-00
321 -5023-00
321-5018-00
321 -5023-00
321-5018-00
321 -5030-00
321 -5030-00
321 -5030-00
321 -5047-00
321 -5047-00
321-5018-00
321 -5022-00
321 -5030-00
321 -5030-00
321 -5030-00
321 -5030-00
321 -5047-00
321 -5047-00
321 -5030-00
321 -5030-00
321 -5030-00
321 -5047-00
321 -5030-00
321 -5047-00
321 -5030-00
321 -5030-00
321-5018-00
321 -5030-00
321 -5030-00
321 -5030-00
321-5165-00
321-5165-00
321-5018-00
321 -5031 -00
321-5165-00
321 -5006-00
321 -5036-00
321 -5030-00
321 -5030-00
RES,FXD:METAL FILM;33.2K OHM,1%,0.125W
RES,FXD:METAL FILM;5.62K OHM,1%,0.125W
RES,FXD:METAL FILM;2.74K OHM,1%,0.125W
RES,FXD:METAL FILM;1 .OK OHM,1%,0.125W
RES,FXD:METAL FILM;2.74K OHM,1%,0.125W
RES,FXD:METALFILM;1.0KOHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METALFILM;100KOHM,1%,0.125W
RES,FXD:METAL FILM;100K OHM,1%,0.125W
RES,FXD:METALFILM;1.0KOHM,1%,0.125W
RES,FXD:METALFILM;2.21KOHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;100K OHM,1%,0.125W
RES,FXD:METALFILM;100KOHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;100K OHM,1%,0.125W
RES,FXD:METALFILM;10.0KOHM,1%,0.125W
RES,FXD:METAL FILM;100K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;1.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD,FILM:10KOHM,0.1%,0.125W,TC=T9
RES,FXD,FILM:10KOHM,0.1%,0.125W,TC=T9
RES,FXD:METAL FILM;1.0K OHM,1%,0.125W
RES,FXD:METALFILM;12.1KOHM,1%,0.125W
RES,FXD,FILM:10KOHM,0.1%,0.125W,TC=T9
RES,FXD:METAL FILM;100 OHM,1%,0.125W,TC=100 91637
RES,FXD:METAL FILM;33.2K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
91637
CRCW12063322FT
CRCW12065621 FT
CRCW12062741 FT
CRCW12061001FT
CRCW12062741 FT
CRCW12061001FT
CRCW12061002FT
CRCW12061002FT
CRCW12061002FT
CRCW12061003FT
CRCW12061003FT
CRCW12061001FT
CRCW12062211 FT
CRCW12061002FT
CRCW12061002FT
CRCW12061002FT
CRCW12061002FT
CRCW12061003FT
CRCW12061003FT
CRCW12061002FT
CRCW12061002FT
CRCW12061002FT
CRCW12061003FT
CRCW12061002FT
CRCW12061003FT
CRCW12061002FT
CRCW12061002FT
CRCW12061001FT
CRCW12061002FT
CRCW12061002FT
CRCW12061002FT
TNPW1206-1002BT
TNPW1206-1002BT
CRCW12061001FT
CRCW12061212FT
TNPW1206-1002BT
CRCW12061000FT
CRCW12063322FT
CRCW12061002FT
CRCW12061002FT
8-52
REV JAN 1993
2465B Replaceable Electrical Parts
