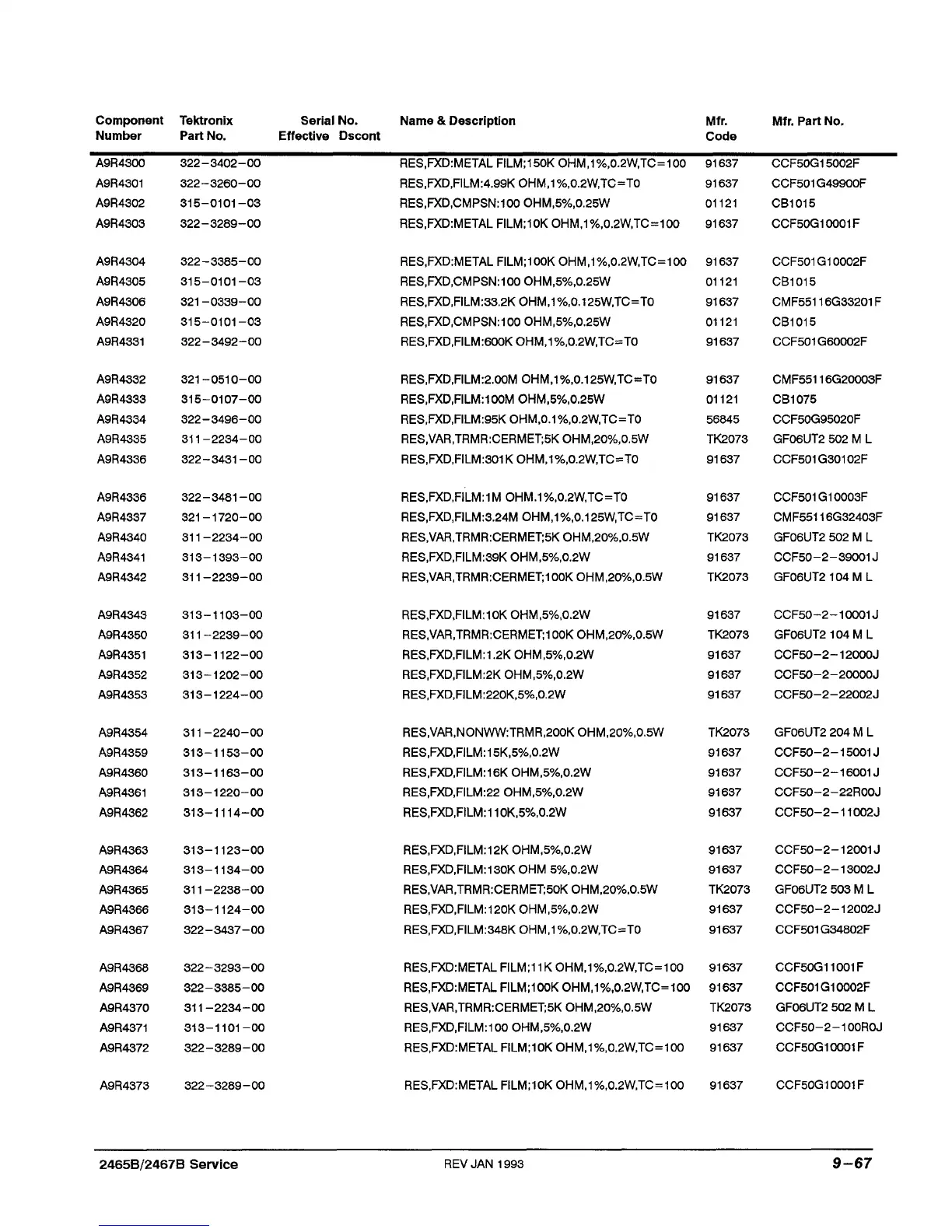

Tektronix 2465B Service Manual

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A9R4300
A9R4301
A9R4302
A9R4303
322-3402-00
322-3260-00
315-0101-03
322-3289-00
RES,FXD:METALFILM;150KOHM,1%,0.2W,TC=100 91637 CCF50G15002F
RES,FXD,FILM:4.99KOHM,1%,0.2W,TC=T0 91637 CCF501G49900F
RES,FXD,CMPSN:100OHM,5%,0.25W 01121 CB1015
RES,FXD:METALFILM;10KOHM,1%,0.2W,TC = 100 91637 CCF50G10001F
A9R4304
A9R4305
A9R4306
A9R4320
A9R4331
322-3385-00
315-0101-03
321 -0339-00
315-0101-03
322-3492-00
RES,FXD:METAL FILM;100K OHM,1%,0.2W,TC=100 91637
RES,FXD,CMPSN:100 OHM,5%,0.25W 01121
RES,FXD,FILM:33.2K OHM,1%,0.125W,TC=T0 91637
RES,FXD,CMPSN:100 OHM,5%,0.25W 01121
RES,FXD,FILM:600K OHM,1%,0.2W,TC=T0 91637
CCF501G10002F
CB1015
CMF55116G33201F
CB1015
CCF501G60002F
A9R4332
A9R4333
A9R4334
A9R4335
A9R4336
321-0510-00
315-0107-00
322-3496-00
311-2234-00
322-3431-00
RES,FXD,FILM:2.00MOHM,1%,0.125W,TC=T0
RES,FXD,FILM:100M OHM,5%,0.25W
RES,FXD,FILM:95KOHM,0.1%,0.2W,TC=T0
RES,VAR,TRMR:CERMET;5KOHM,20%,0.5W
RES,FXD,FILM:301KOHM,1%,0.2W,TC=T0
91637 CMF55116G20003F
01121 CB1075
56845 CCF50G95020F
TK2073 GF06UT2 502 M L
91637 CCF501G30102F
A9R4336
A9R4337
A9R4340
A9R4341
A9R4342
322-3481-00
321-1720-00
311 -2234-00
313-1393-00
311-2239-00
RES,FXD,FILM:1MOHM.1%,0.2W,TC=T0
RES,FXD,FILM:3.24MOHM,1%,0.125W,TC=T0
RES,VAR,TRMR:CERMET;5KOHM,20%,0.5W
RES,FXD,FILM:39K OHM,5%,0.2W
RES,VAR,TRMR:CERMET;100KOHM,20%,0.5W
91637 CCF501G10003F
91637 CMF55116G32403F
TK2073 GF06UT2 502 M L
91637 CCF50-2-39001J
TK2073 GF06UT2 104 M L
A9R4343
A9R4350
A9R4351
A9R4352
A9R4353
313-1103-00
311-2239-00
313-1122-00
313-1202-00
313-1224-00
RES,FXD,FILM:10K OHM,5%,0.2W
RES,VAR,TRMR:CERMET;100KOHM,20%,0.5W
RES,FXD,FILM:1.2K OHM,5%,0.2W
RES,FXD,FILM:2K OHM,5%,0.2W
RES,FXD,FILM:220K,5%,0.2W
91637 CCF50-2-10001J
TK2073 GF06UT2 104 M L
91637 CCF50-2-12000J
91637 CCF50-2-20000J
91637 CCF50-2-22002J
A9R4354
A9R4359
A9R4360
A9R4361
A9R4362
311-2240-00
313-1153-00
313-1163-00
313-1220-00
313-1114-00
RES,VAR,NONWW:TRMR,200KOHM,20%,0.5W
RES,FXD,FILM:15K,5%,0.2W
RES,FXD,FILM:16K OHM,5%,0.2W
RES,FXD,FILM:22 OHM,5%,0.2W
RES,FXD,FILM:110K,5%,0.2W
TK2073 GF06UT2 204 M L
91637 CCF50-2-15001J
91637 CCF50-2-16001J
91637 CCF50-2-22ROOJ
91637 CCF50-2-11002J
A9R4363
A9R4364
A9R4365
A9R4366
A9R4367
313-1123-00
313-1134-00
311 -2238-00
313-1124-00
322-3437-00
RES,FXD,FILM:12K OHM,5%,0.2W
RES,FXD,FILM:130K OHM 5%,0.2W
RES,VAR,TRMR:CERMET;50KOHM,20%,0.5W
RES,FXD,FILM:120K OHM,5%,0.2W
RES,FXD,FILM:348K OHM.1 %,0.2W,TC=T0
91637 CCF50-2-12001J
91637 CCF50-2-13002J
TK2073 GF06UT2 503 M L
91637 CCF50-2-12002J
91637 CCF501G34802F
A9R4368
A9R4369
A9R4370
A9R4371
A9R4372
A9R4373
322-3293-00
322-3385-00
311-2234-00
313-1101-00
322-3289-00
322-3289-00
RES,FXD:METAL FILM;11K OHM,1%,0.2W,TC = 100
RES,FXD:METAL FILM;100K OHM,1%,0.2W,TC=100
RES,VAR,TRMR:CERMET;5KOHM,20%,0.5W
RES,FXD,FILM:100 OHM,5%,0.2W
RES,FXD:METALFILM;10KOHM,1%,0.2W,TC = 100
RES,FXD:METALFILM;10KOHM,1%,0.2W,TC = 100
91637
91637
TK2073
91637
91637
91637
CCF50G11001F
CCF501G10002F
GF06UT2 502 M L
CCF50-2-100ROJ
CCF50G10001F
CCF50G10001F
2465B/2467B Service
REV JAN 1993
9-67
