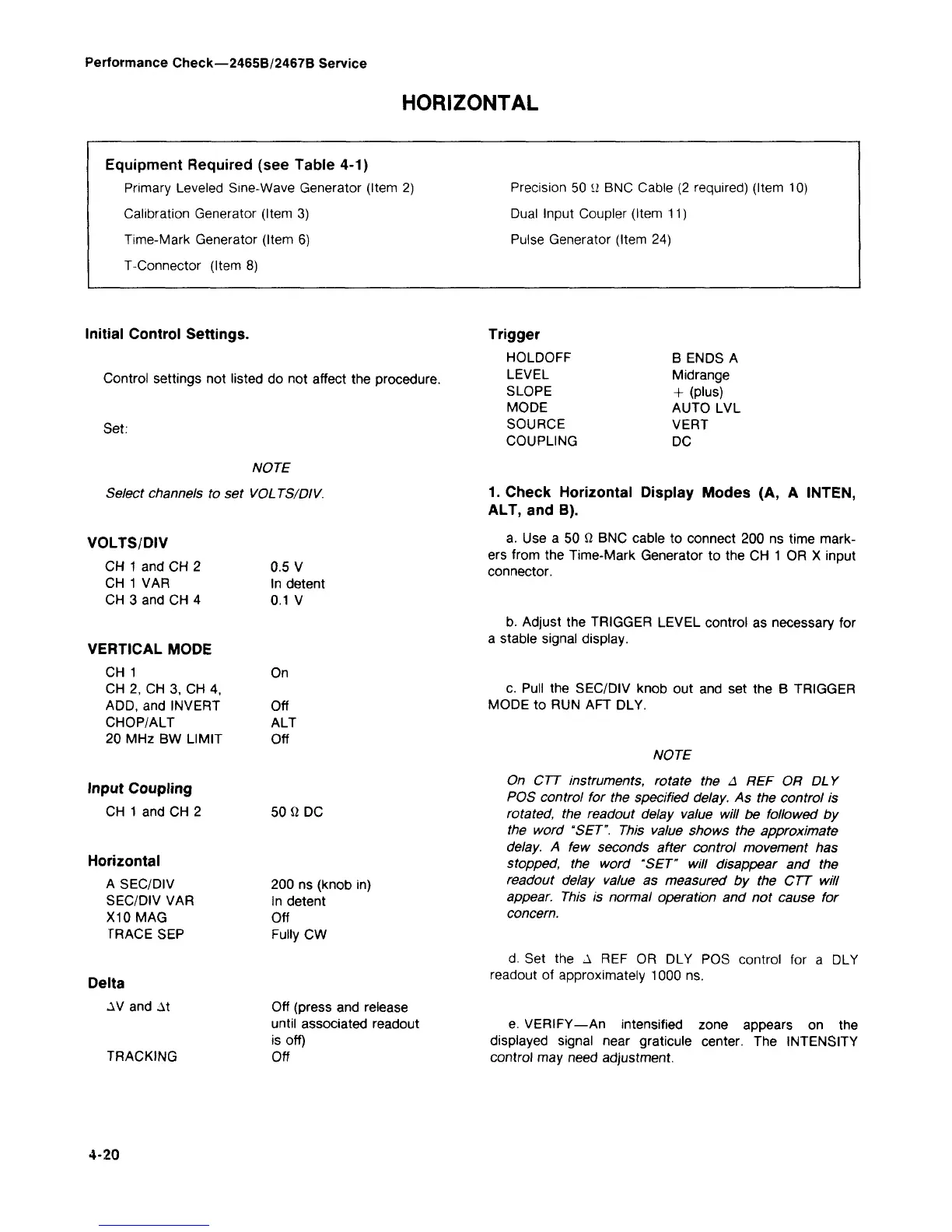

Performance Check—2465B/2467B Service
HORIZONTAL
Equipment Required (see Table 4-1)
Primary Leveled Sine-Wave Generator (Item 2)
Calibration Generator (Item 3)
Time-Mark Generator (Item 6)
T-Connector (Item 8)
Precision 50
<2
BNC Cable (2 required) (Item 10)
Dual Input Coupler (Item 11)
Pulse Generator (Item 24)
Initial Control Settings.
Control settings not listed do not affect the procedure.
Set:
NOTE
Select channels to set VOLTS/DIV.
VOLTS/DIV
CH 1 and CH 2
CH 1 VAR
CH 3 and CH 4
0.5 V
In detent
0.1 V
VERTICAL MODE
CH 1
CH 2, CH 3, CH 4,
ADD,
and INVERT
CHOP/ALT
20 MHz BW LIMIT
Input Coupling
CH 1 and CH 2
Horizontal
A SEC/DIV
SEC/DIV VAR
X10MAG
TRACE SEP
Delta
AV and At
TRACKING
On
Off
ALT
Off
50S2DC
200 ns (knob in)
In detent
Off
Fully CW
Off (press and release
until associated readout
is off)
Off
Trigger
HOLDOFF
LEVEL
SLOPE
MODE
SOURCE
COUPLING
B ENDS A
Midrange
+ (plus)
AUTO LVL
VERT
DC
1.
Check Horizontal Display Modes (A, A INTEN,
ALT, and B).
a. Use a 50
12
BNC cable to connect 200 ns time mark-
ers from the Time-Mark Generator to the CH 1 OR X input
connector.
b. Adjust the TRIGGER LEVEL control as necessary for
a stable signal display.
c. Pull the SEC/DIV knob out and set the B TRIGGER
MODE to RUN AFT DLY.
NOTE
On CTT instruments, rotate the A REF OR DLY
POS control for the specified delay. As the control is
rotated, the readout delay value will be followed by
the word
"SET".
This value shows the approximate
delay. A few seconds after control movement has
stopped, the word "SET" will disappear and the
readout delay value as measured by the CTT will
appear. This is normal operation and not cause for
concern.
d.
Set the A REF OR DLY POS control for a DLY
readout of approximately 1000 ns.
e. VERIFY—An intensified zone appears on the
displayed signal near graticule center. The INTENSITY
control may need adjustment.
4-20
