A description of the part (if electrical, include its
full circuit component number).
4. Tektronix part number.
MAINTENANCE AIDS

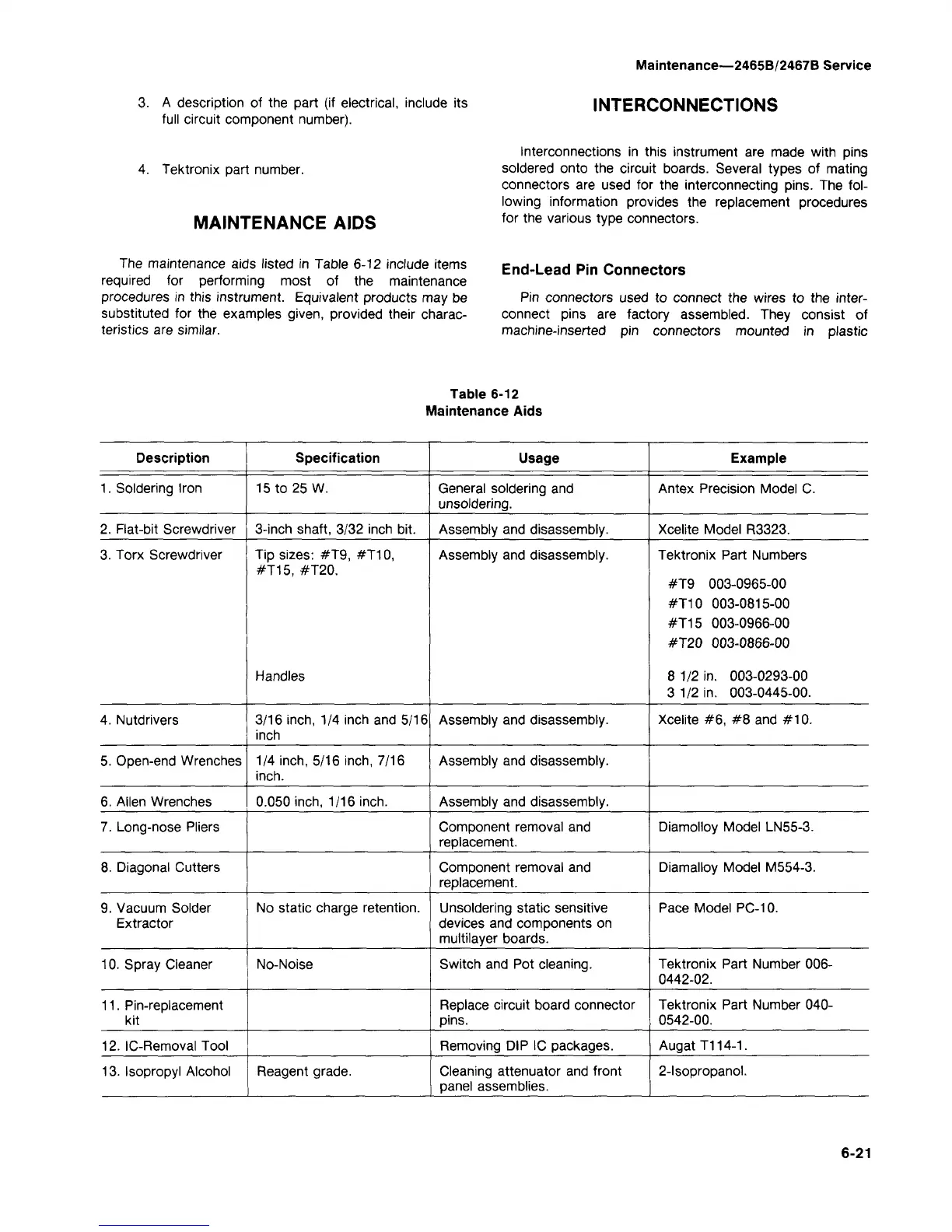

Maintenance—2465B/2467B Service
INTERCONNECTIONS
Interconnections in this instrument are made with pins
soldered onto the circuit boards. Several types of mating
connectors are used for the interconnecting pins. The fol-
lowing information provides the replacement procedures
for the various type connectors.
The maintenance aids listed in Table 6-12 include items
required for performing most of the maintenance
procedures in this instrument. Equivalent products may be
substituted for the examples given, provided their charac-
teristics are similar.
End-Lead Pin Connectors
Pin connectors used to connect the wires to the inter-
connect pins are factory assembled. They consist of
machine-inserted pin connectors mounted in plastic
Table 6-12
Maintenance Aids
Description
1. Soldering Iron
2. Flat-bit Screwdriver
3. Torx Screwdriver
4. Nutdrivers
5. Open-end Wrenches
6. Allen Wrenches
7. Long-nose Pliers
8. Diagonal Cutters
9. Vacuum Solder
Extractor
10. Spray Cleaner
11. Pin-replacement
kit
12. IC-Removal Tool
13. Isopropyl Alcohol
Specification
15 to 25 W.
3-inch shaft, 3/32 inch bit.
Tip sizes: #T9, #T10,
#T15, #T20.
Handles
3/16 inch, 1/4 inch and 5/16
inch
1/4 inch, 5/16 inch, 7/16
inch.
0.050 inch, 1/16 inch.
No static charge retention.
No-Noise
Reagent grade.
Usage
General soldering and
unsoldering.
Assembly and disassembly.
Assembly and disassembly.
Assembly and disassembly.
Assembly and disassembly.
Assembly and disassembly.
Component removal and
replacement.
Component removal and
replacement.
Unsoldering static sensitive
devices and components on
multilayer boards.
Switch and Pot cleaning.
Replace circuit board connector
pins.
Removing DIP IC packages.
Cleaning attenuator and front
panel assemblies.
Example
Antex Precision Model C.
Xcelite Model R3323.
Tektronix Part Numbers
#T9 003-0965-00
#T10 003-0815-00
#T15 003-0966-00
#T20 003-0866-00
8 1/2 in. 003-0293-00
3 1/2 in. 003-0445-00.
Xcelite #6, #8 and #10.
Diamolloy Model LN55-3.
Diamalloy Model M554-3.
Pace Model PC-10.
Tektronix Part Number 006-
0442-02.
Tektronix Part Number 040-
0542-00.
Augat T114-1.
2-lsopropanol.
6-21
