Tektronix 2467B Service Manual

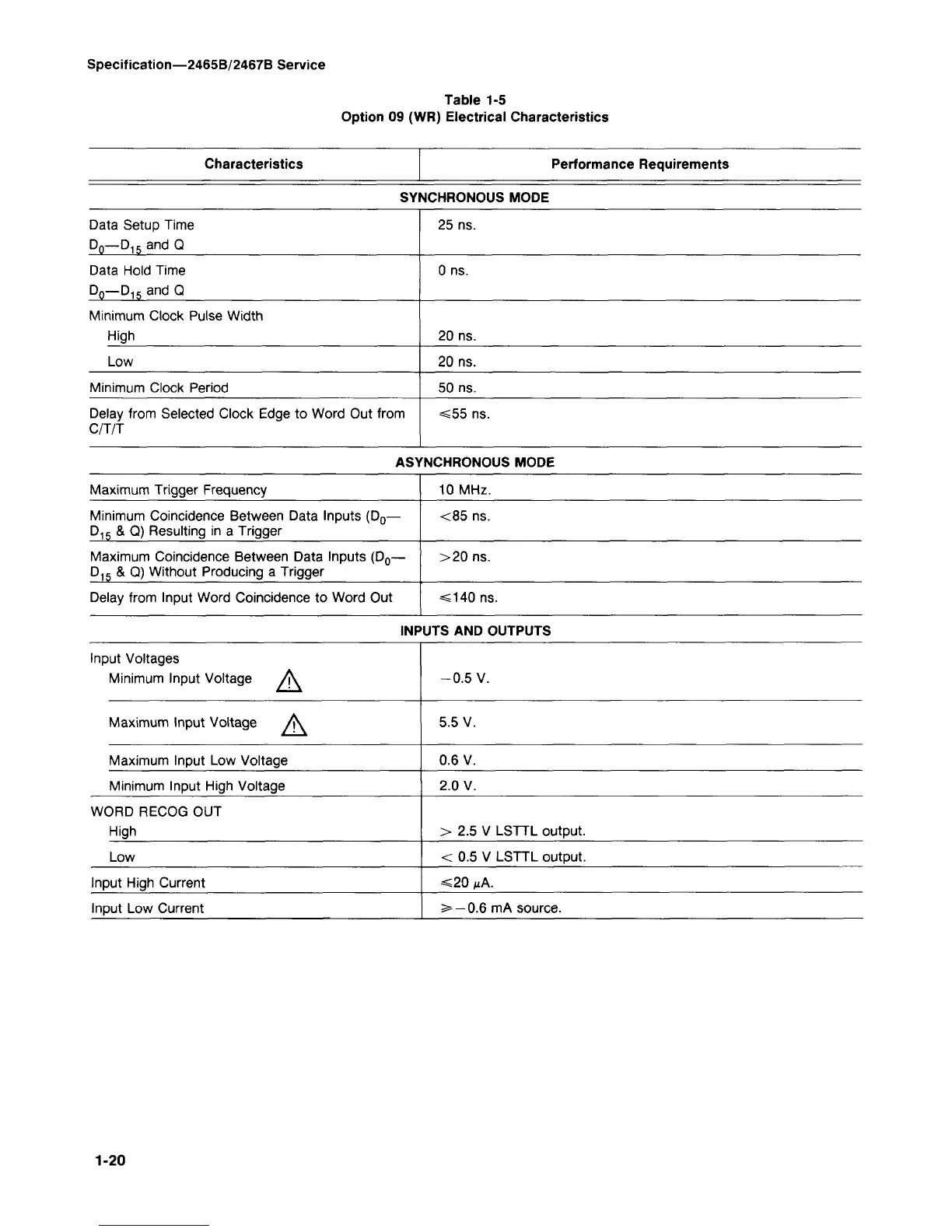

Specification—2465B/2467B Service
Table 1-5
Option 09 (WR) Electrical Characteristics
Characteristics
Performance Requirements
SYNCHRONOUS MODE
Data Setup Time
D
0
—D
15
and Q
Data Hold Time
D
0
—D
15
and Q
Minimum Clock Pulse Width
High
Low
Minimum Clock Period
Delay from Selected Clock Edge to Word Out from
C/T/T
25 ns.
0 ns.
20 ns.
20 ns.
50 ns.
*£55 ns.
ASYNCHRONOUS MODE
Maximum Trigger Frequency
Minimum Coincidence Between Data Inputs (D
0
—
D
15
& Q) Resulting in a Trigger
Maximum Coincidence Between Data Inputs (D
0
—
D
15
& Q) Without Producing a Trigger
Delay from Input Word Coincidence to Word Out
10 MHz.
<85 ns.
>20 ns.
«s140 ns.
INPUTS AND OUTPUTS
Input Voltages
Minimum Input Voltage A.
Maximum Input Voltage /\
Maximum Input Low Voltage
Minimum Input High Voltage
WORD RECOG OUT
High
Low
Input High Current
Input Low Current
-0.5 V.
5.5 V.
0.6 V.
2.0 V.
> 2.5 V LSTTL output.
< 0.5 V LSTTL output.
<20 MA.
5> - 0.6 mA source.
1-20
