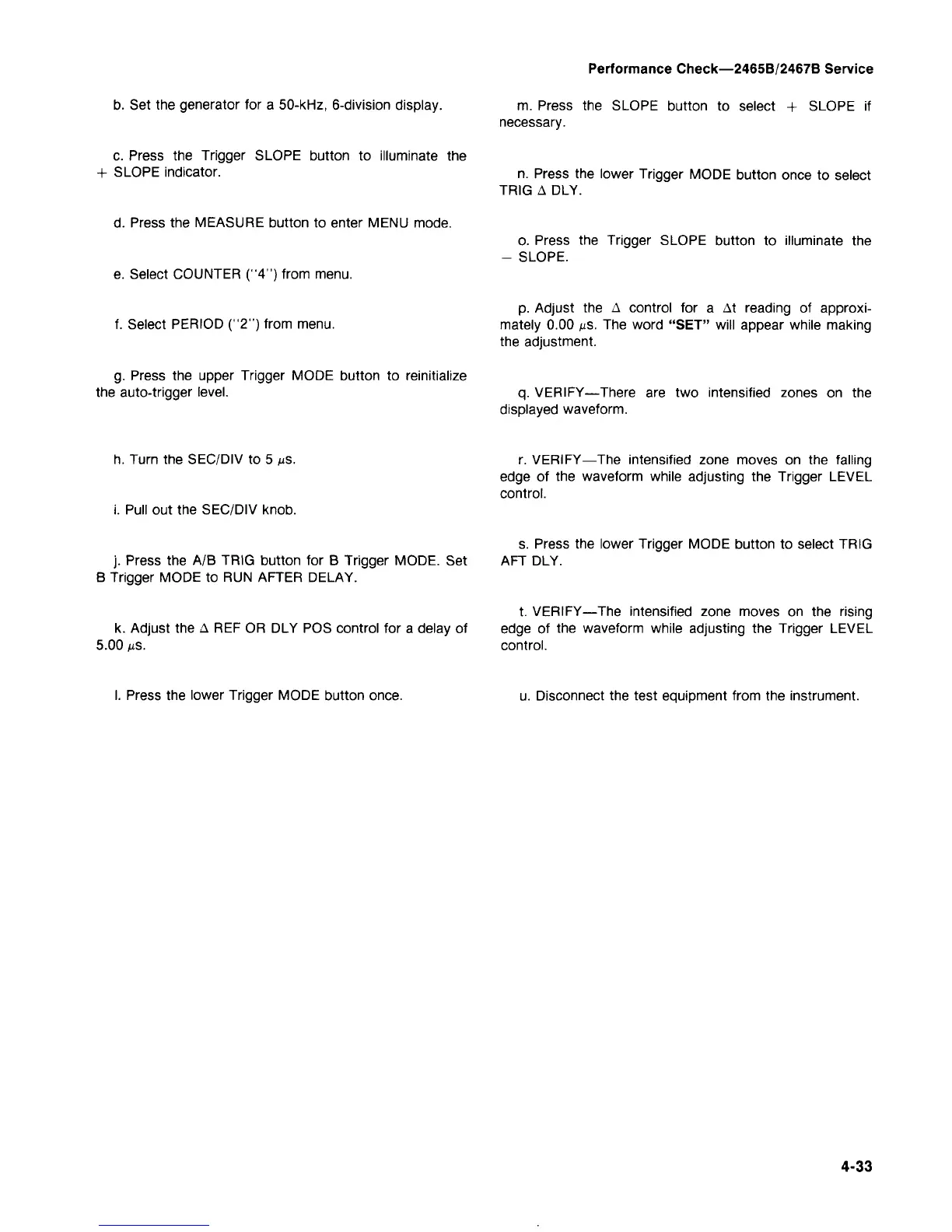

Performance Check—2465B/2467B Service
b. Set the generator for a 50-kHz, 6-division display.
c. Press the Trigger SLOPE button to illuminate the
+ SLOPE indicator.
d. Press the MEASURE button to enter MENU mode.
e. Select COUNTER ("4") from menu.
f. Select PERIOD ("2") from menu.
g. Press the upper Trigger MODE button to reinitialize
the auto-trigger level.
h. Turn the SEC/DIV to 5 us.
i. Pull out the SEC/DIV knob.
j. Press the A/B TRIG button for B Trigger MODE. Set
B Trigger MODE to RUN AFTER DELAY.
k. Adjust the A REF OR DLY POS control for a delay of
5.00 MS.
I. Press the lower Trigger MODE button once.
m. Press the SLOPE button to select + SLOPE if
necessary.
n. Press the lower Trigger MODE button once to select
TRIG A DLY.
o. Press the Trigger SLOPE button to illuminate the
- SLOPE.
p. Adjust the A control for a At reading of approxi-
mately 0.00 us. The word "SET" will appear while making
the adjustment.
q. VERIFY—There are two intensified zones on the
displayed waveform.
r. VERIFY—The intensified zone moves on the falling
edge of the waveform while adjusting the Trigger LEVEL
control.
s. Press the lower Trigger MODE button to select TRIG
AFT DLY.
t. VERIFY—The intensified zone moves on the rising
edge of the waveform while adjusting the Trigger LEVEL
control.
u. Disconnect the test equipment from the instrument.
4-33
