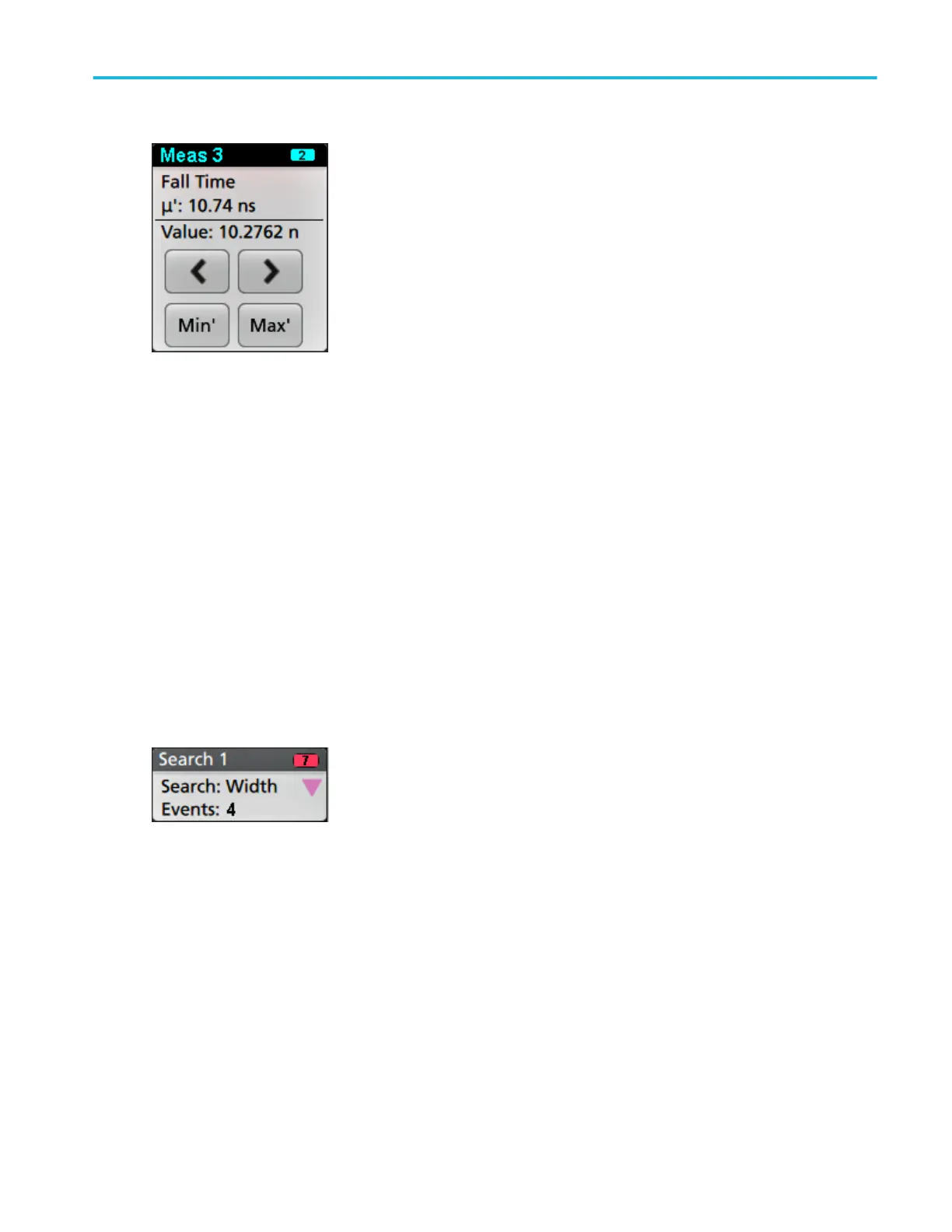

The < (Previous) and > (Next) buttons center the waveform in the display at the position of the previous or next measurement
point in the record (for measurements that take more than one measurement per acquisition).
The Min' and Max' navigation buttons center the waveform in the display at the minimum or maximum value for that
measurement in the current acquisition.
The prime symbol (') shown on measurement readings and Min/Max buttons indicates that the value shown (or moved to in the
case of Min/Max and waveforms) is from the current acquisition. Lack of a prime symbol means the value is from all acquisitions.
Measurement badges are listed in the order created, starting at the top of the Results bar. Deleting a Measurement badge does
not change the order or names of the remaining badges. You cannot move Measurement badges other than to drag them into
the Trash Can icon to delete them.
Search badges
Search badges are also located in the Results Bar, below the Measurement badges. A search badge defines the search source,
type, and the number of search criteria events (occurrences) in the current acquisition, and marks the waveform where those
events occur with small down-pointing triangles along the top of the waveform graticule. Double-tap a search badge to open its
configuration menu to change or refine search settings.
Search badges are created by tapping the Add New... Search button. Use the displayed configuration menu to set the search
criteria.
Search badges have < (Previous) and > (Next) Navigation buttons that open the Zoom mode and center the waveform in the
display at the position of the previous or next search mark in the waveform record. Search badge Navigation buttons are only
usable when the oscilloscope is in single acquisition mode. Single-tap a badge to close the Navigation buttons.
Getting acquainted with your instrument
MSO54, MSO56, MSO58 Installation and Safety Manual 21
