3. Use the fields and controls to select the bus signal sources, thresholds, other parameters, and the output format. The

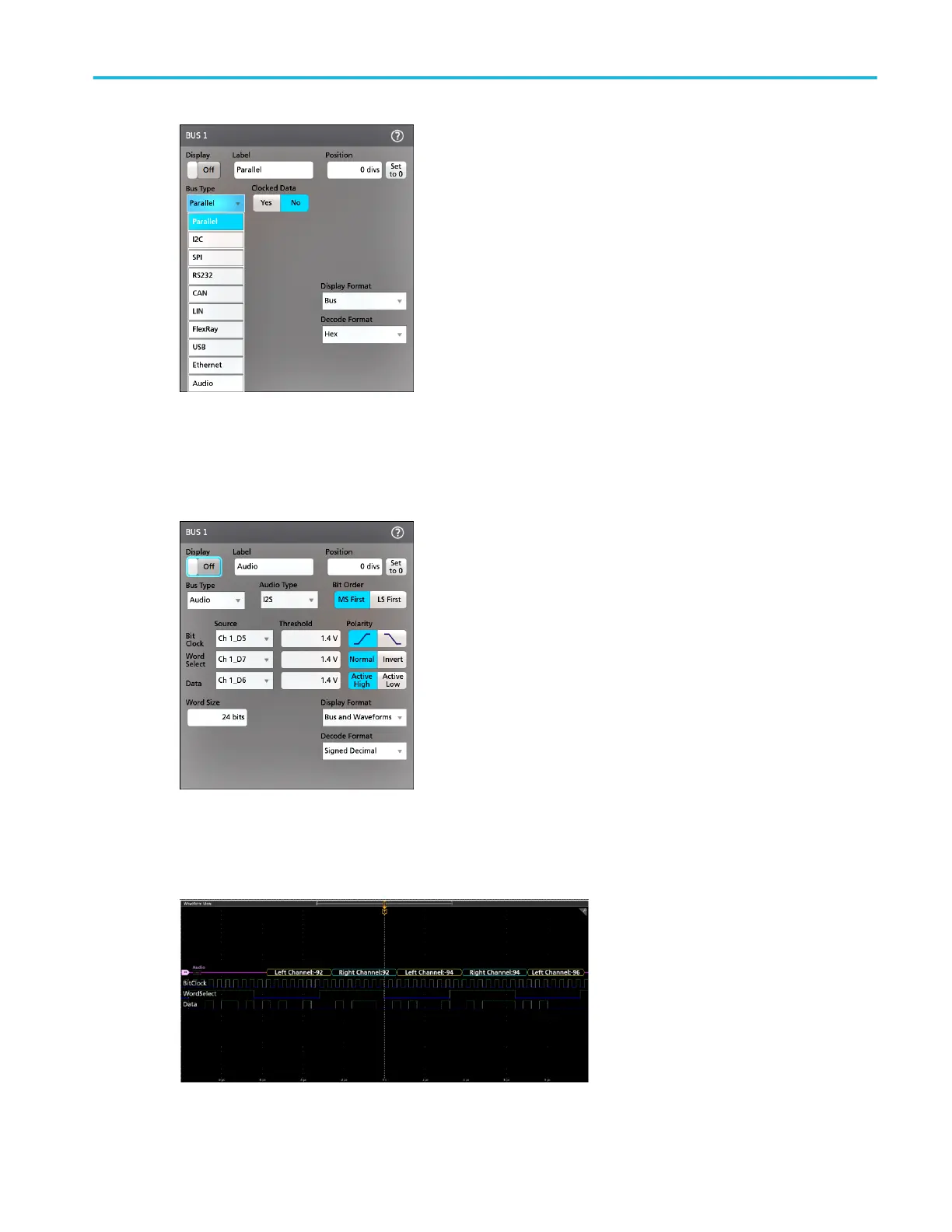

following example shows the settings for an Audio I

C serial bus.

The decoded bus is updated on the screen as you make changes to the settings.

4. Tap outside of the Bus configuration menu to close it.
