Tektronix 5 Series MSO

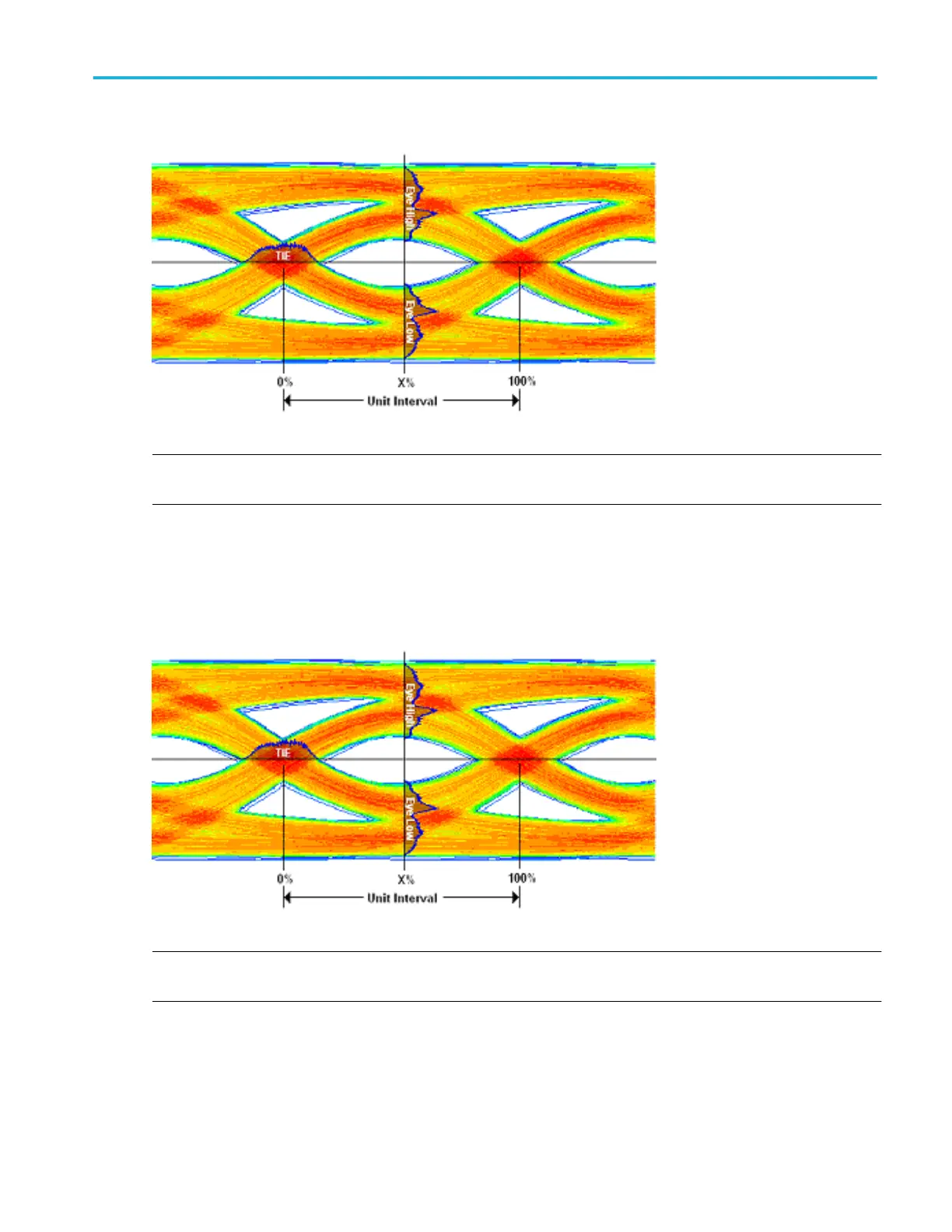

NOTE. This illustration shows how the measurement is made, and does not represent how the oscilloscope actually displays an
eye diagram or histograms on an eye diagram plot.
Eye low
Eye Low calculates the voltage at the selected horizontal position across the unit interval, for all Low bits in the waveform. A
histogram of the Eye Low measurement corresponds to a vertical slice through the lower half of a three-dimensional eye
diagram.
NOTE. This illustration shows how the measurement is made, and does not represent how the oscilloscope actually displays an
eye diagram or histograms on an eye diagram plot.
Measurement algorithms
MSO54, MSO56, MSO58, MSO58LP, MSO64 Help 459
