Powering the oscilloscope
Use this procedure to connect the oscilloscope to line power and power on and off the oscilloscope. Always connect the
oscilloscope to AC power using the power cord that shipped with the instrument.
Prerequisite: Use the AC power cord that shipped with your oscilloscope.
1. Connect the supplied power cord to the oscilloscope power connector.

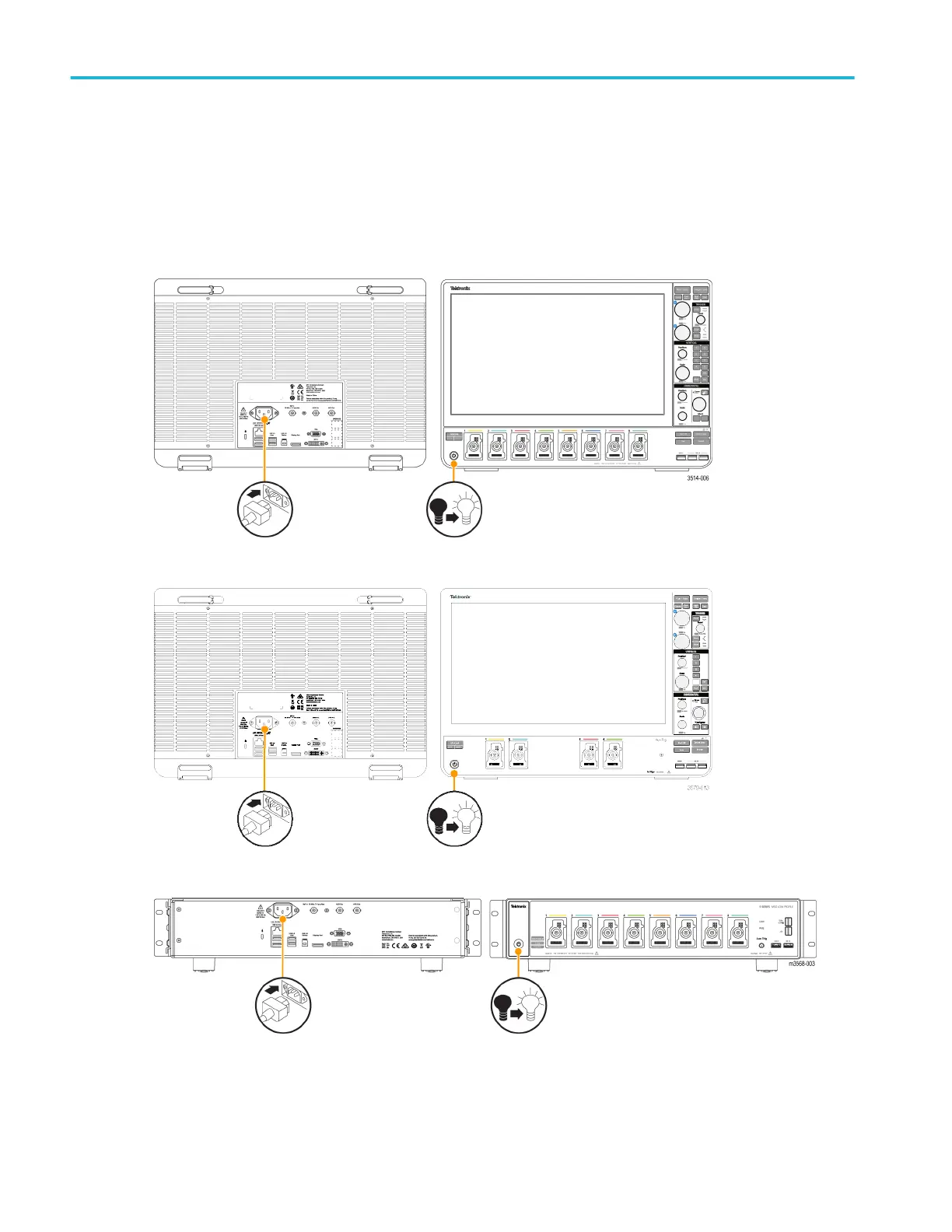

Figure 1: MSO54, MSO56, MSO58 power cord connector and power standby switch
Figure 2: MSO6 Series power cord connector and power standby switch
Figure 3: MSO58LP power cord connector and power standby switch
2. Connect the power cord to an appropriate AC mains source.
