5. Double-tap the Trigger badge and use the Trigger configuration menu to trigger on a specific condition in the bus.
6. For more information on serial bus settings, tap the Help button on the Bus configuration menu.
Add a parallel bus to the Waveform view
Use this procedure to add a parallel bus to the Waveform view.
When you acquire data from a Parallel bus, you can set up the bus to be clocked or unclocked. If the bus is not clocked, the
instrument acquires all data from the parallel bus at the sample rate of the instrument.

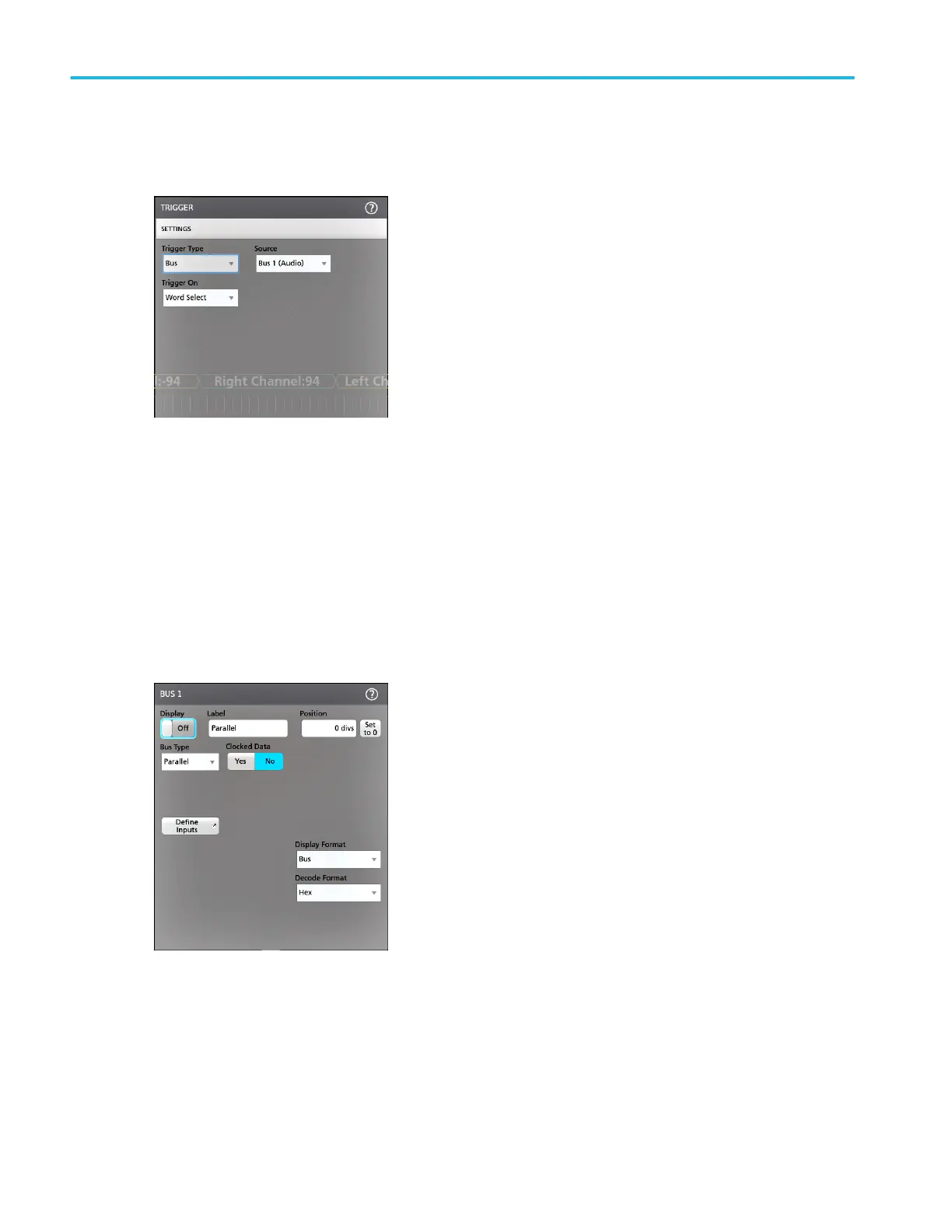

1. Tap the Add New Bus button on the Settings bar. This adds a Bus badge bus to the Settings bar, adds a bus waveform to
the screen, and opens the Bus configuration menu. The default bus type is parallel.
2. If setting up a clocked bus:
Acquiring digital signals
114 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
