Rectangular window

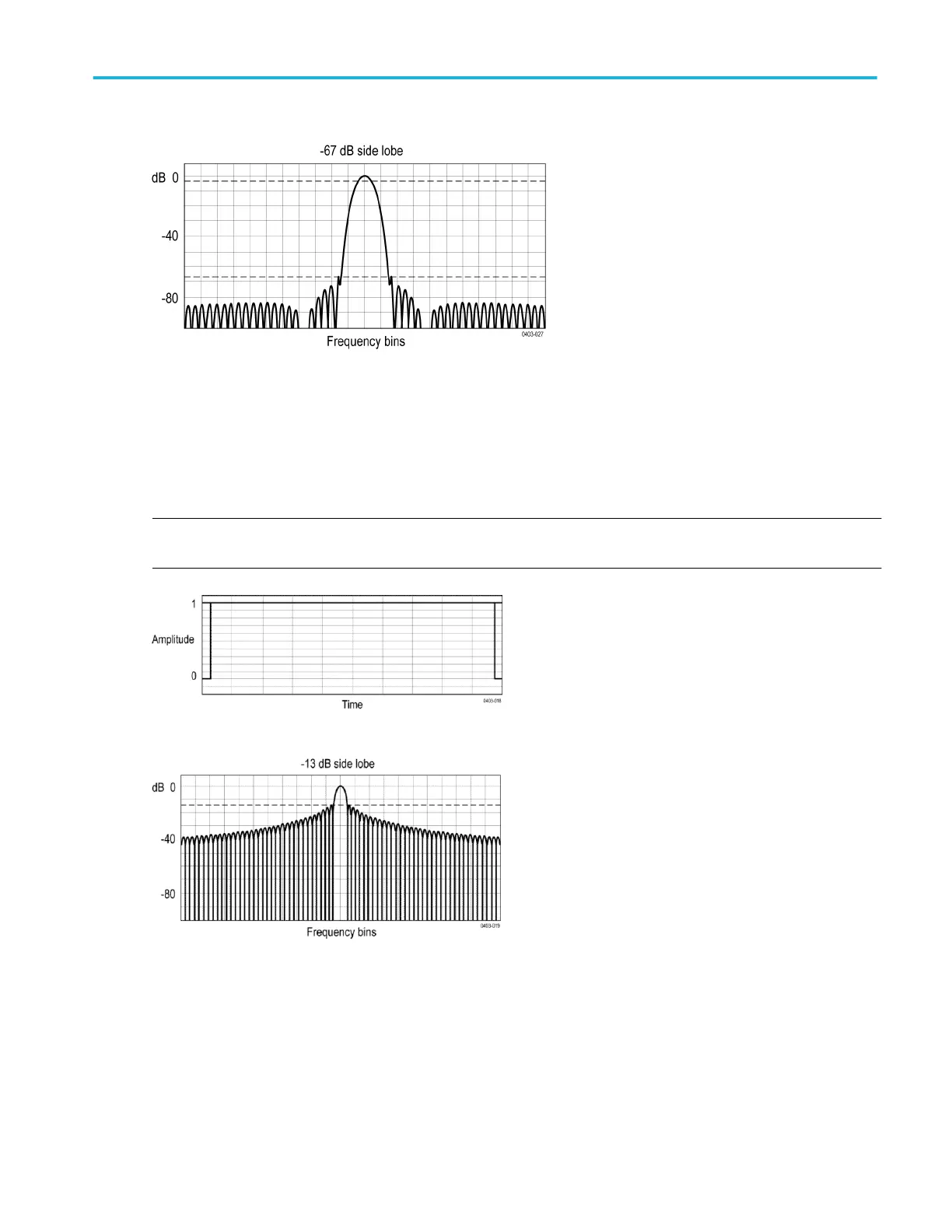

This window is equal to unity (see the next figure). This means the data samples in the gate are not modified before input to the
spectral analyzer. Rectangular windows are best for measuring transients or bursts where the signal levels before and after the
event are nearly equal.
NOTE. This window has the narrowest resolution bandwidth of any of the windows, but it also has the most spectral leakage and
the highest side lobes.
