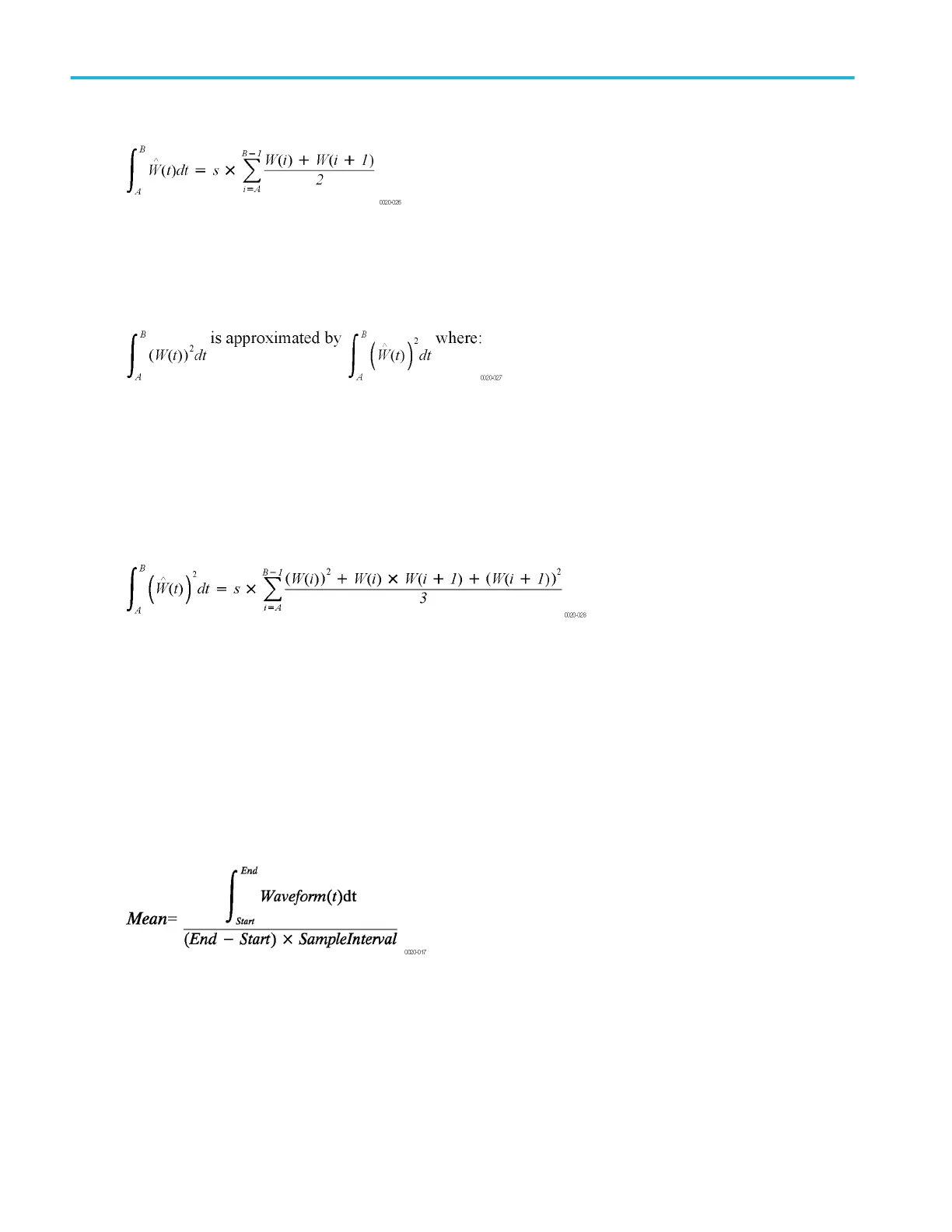

where s is the sample interval.
Similarly,
W(t) is the sampled waveform
Ŵ(t) is the continuous function obtained by interpolation of W(t)
A and B are numbers between 0.0 and RecordLength – 1.0
If A and B are integers, then:
where s is the sample interval.
Maximum measurement algorithm
Maximum is the maximum data point. Typically the most positive peak voltage.
Mean measurement algorithm
Mean is the arithmetic mean of the data points. Remember that one waveform is not necessarily equal to one cycle. For cyclical
data you may prefer to use the cycle mean rather than the arithmetic mean.
Details of the integration algorithm are given in Integration algorithm on page 445
Measurement algorithms
446 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
