Getting acquainted with your instrument
The following content provides a high-level description of the instrument controls and user interface.
Front panel controls and connectors
The front panel controls provide direct access to key instrument settings such as vertical, horizontal, trigger, cursors, and zoom.
The connectors are where you input signals with probes or cables, or insert USB devices.

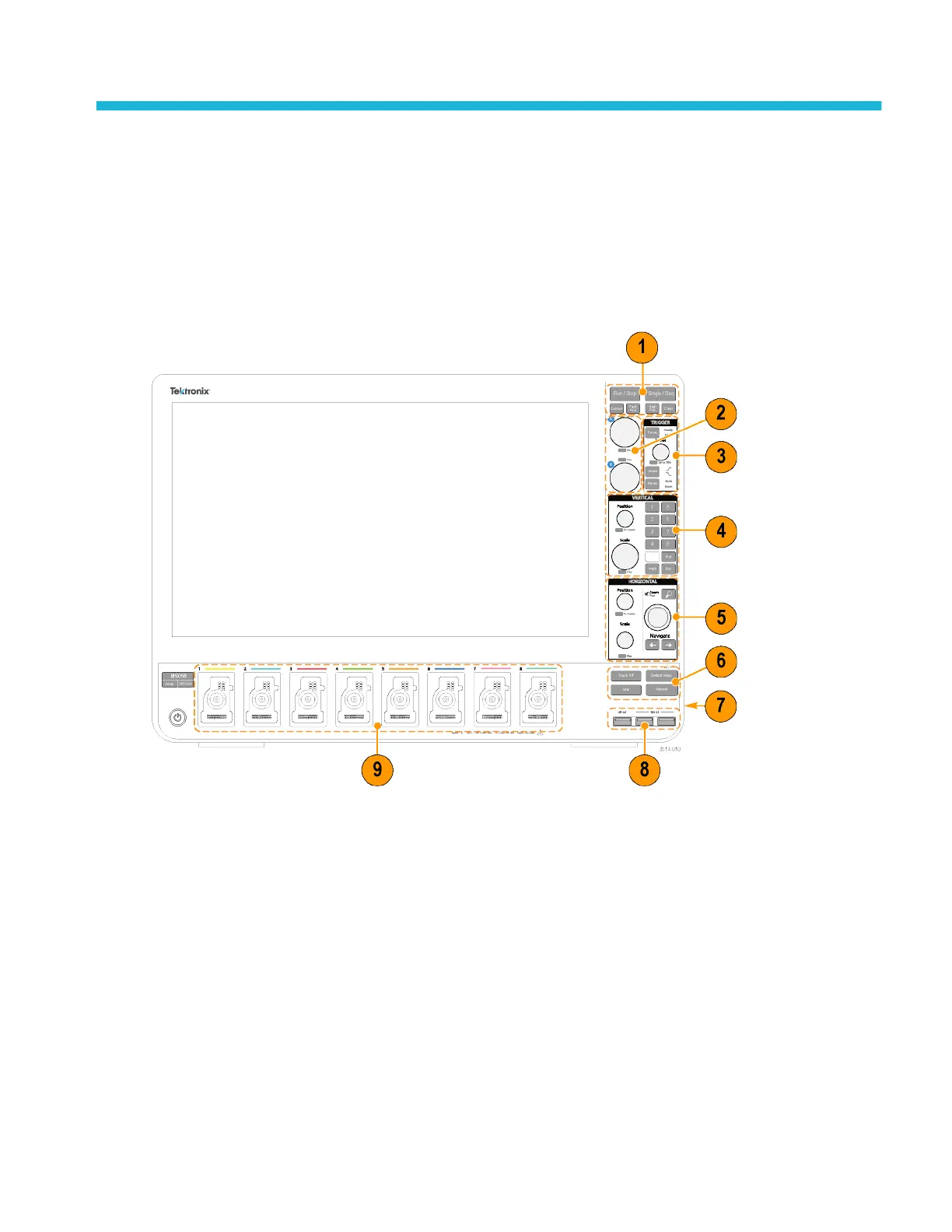

Figure 7: 5 Series MSO controls
