4. Open the USB drive location.
5. Double-tap on the installation file to update the application software; follow any on-screen instructions.

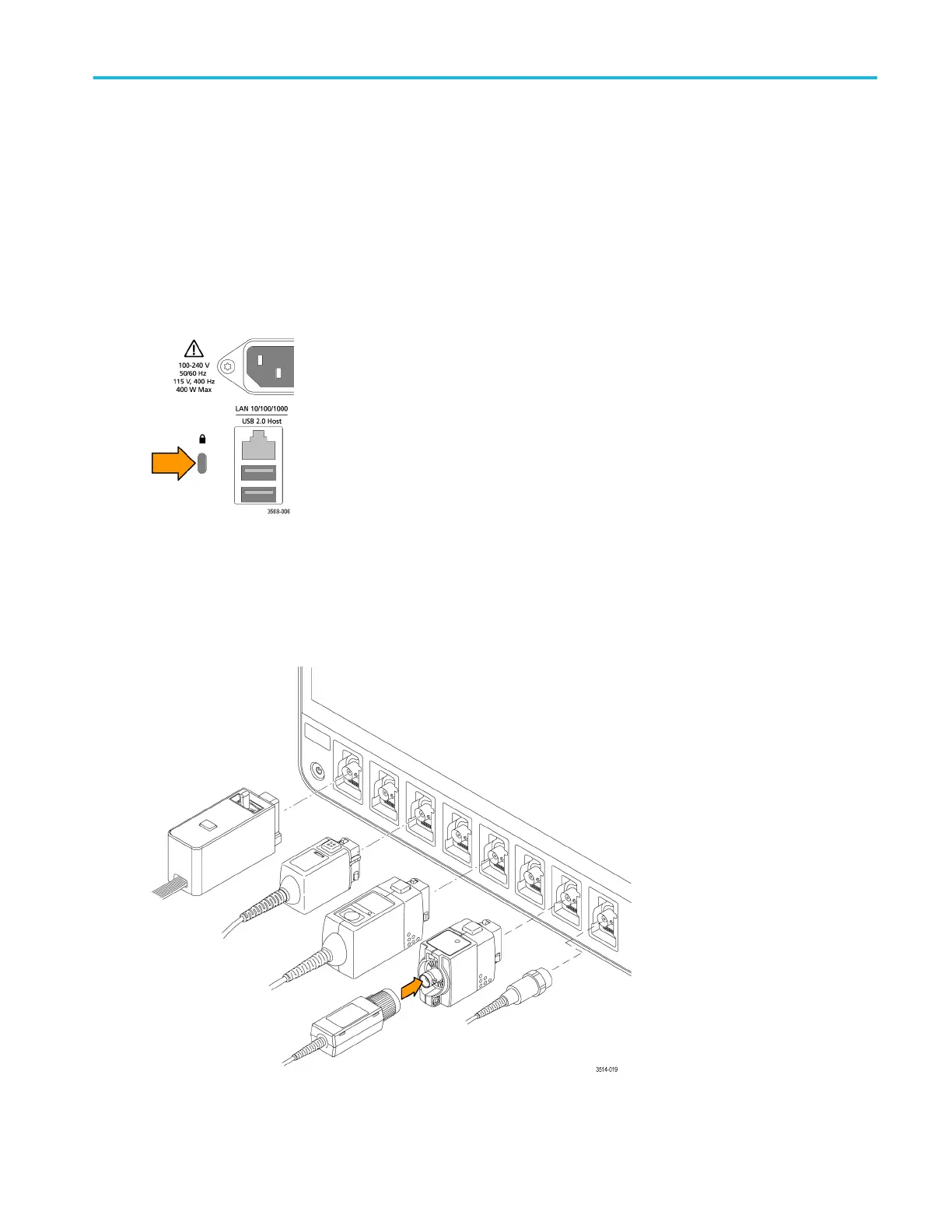

Secure (lock) the oscilloscope
Lock an oscilloscope to a test bench or equipment rack to prevent property loss.
Attach a standard laptop security lock to the rear panel of the oscilloscope, to secure the oscilloscope to a workbench, rack, or
other location.
Connecting Probes
Probes and cables connect the oscilloscope to your device under test (DUT). Use a probe that best matches your signal
measurement needs.
Figure 4: Connecting probes to the MSO54, MSO56, or MSO58
Install your instrument
MSO54, MSO56, MSO58, MSO58LP, MSO64 Help 31
