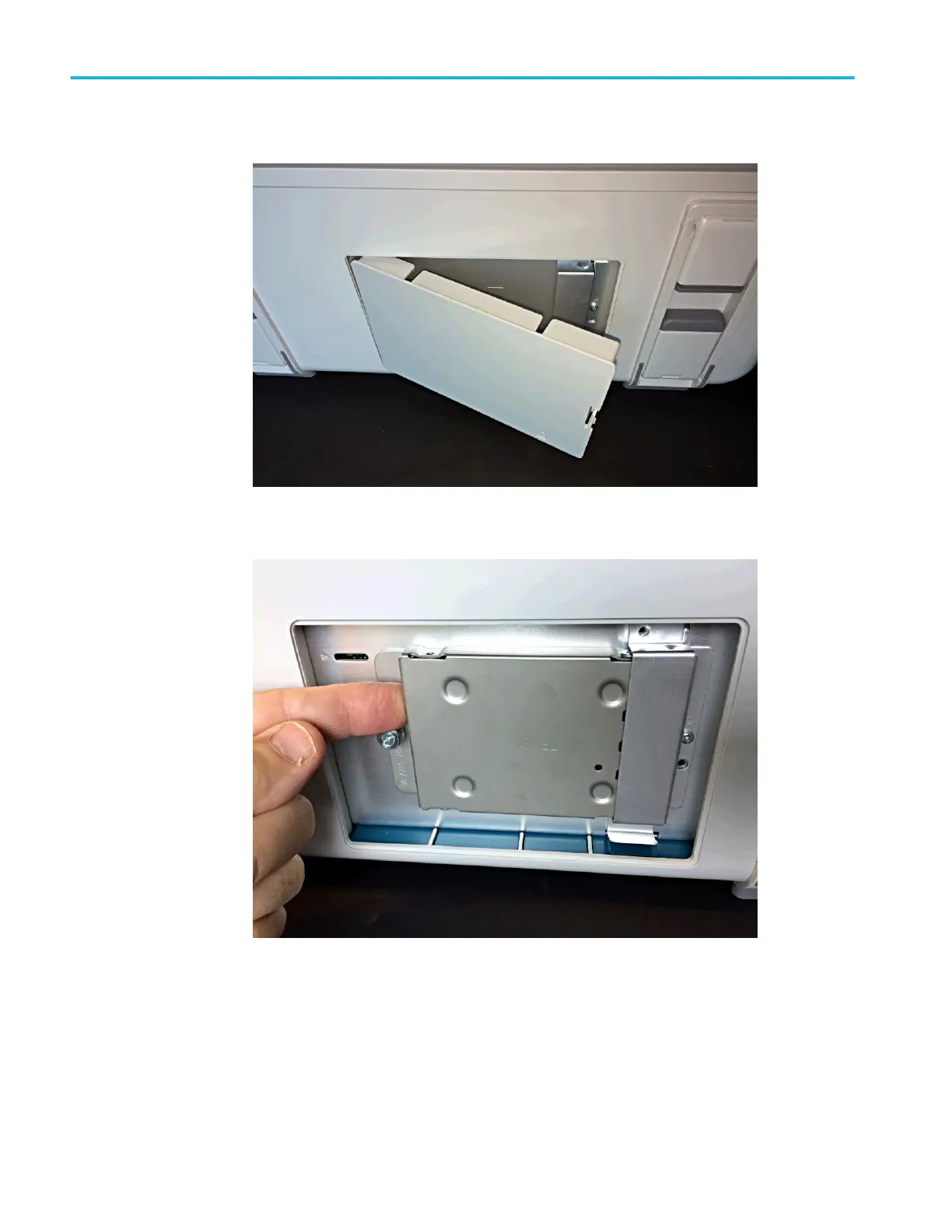

3. Remove the SSD drive cover from the bottom of the oscilloscope as shown.
4. Slide the connector end of the SSD into the drive connector bracket. Push firmly to seat the drive in the connector.
5. Push down on and tighten the thumb screw to attach the SSD drive to the chassis.
6. Reinstall the SSD drive cover on the bottom of the instrument.
7. Restore the instrument to its normal operating position.
8. Go to the Powering on Windows for the first time on page 29 procedure.
Install your instrument
28 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
