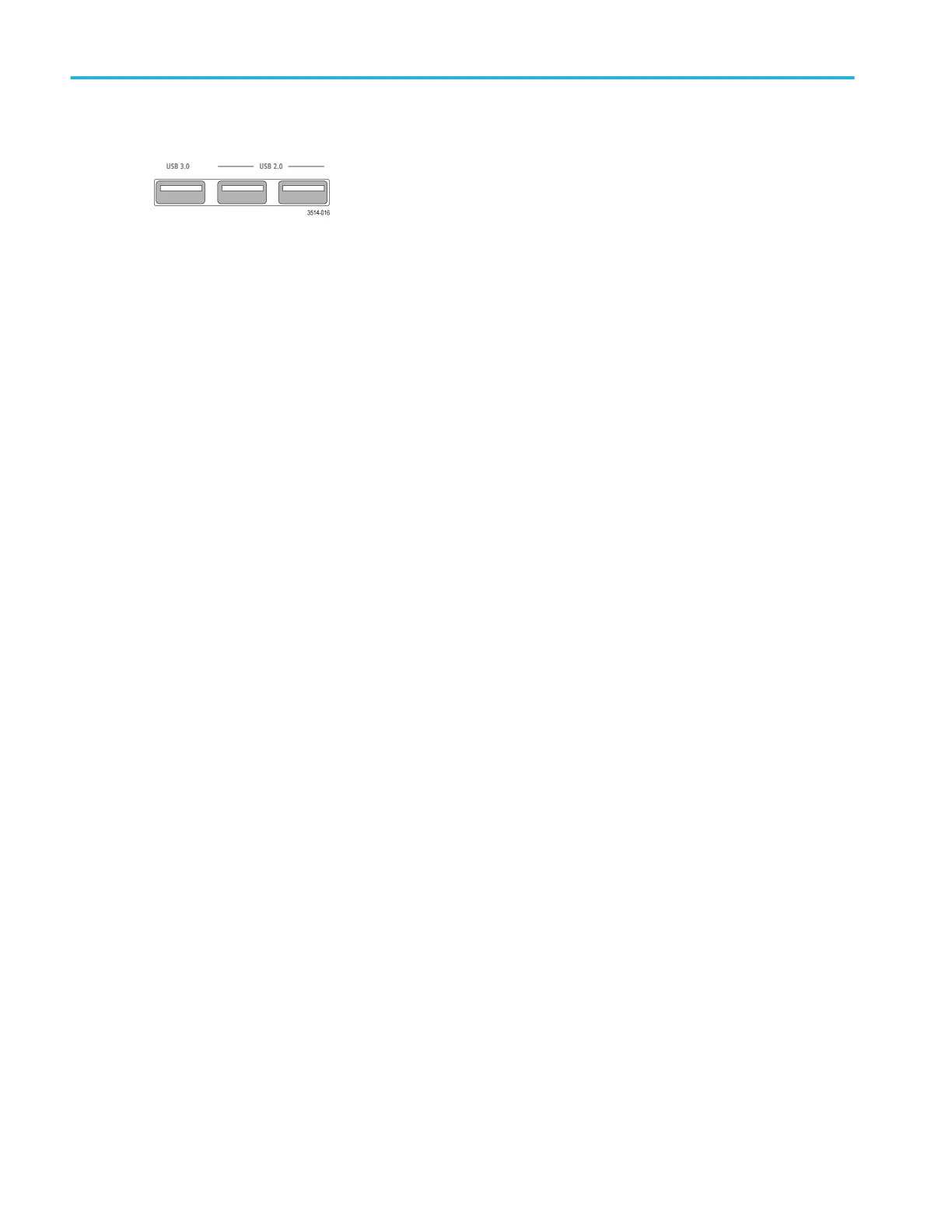

8. USB Host ports (USB 3.0 and 2.0):

■

USB ports are located at the lower right corner of the front panel, and on the rear panel. Connect USB flash drives to

which you can save or recall data (such as instrument software updates, waveforms, settings, and screen captures), or

connect peripheral devices such as a mouse or keyboard.

Getting acquainted with your instrument

42 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
