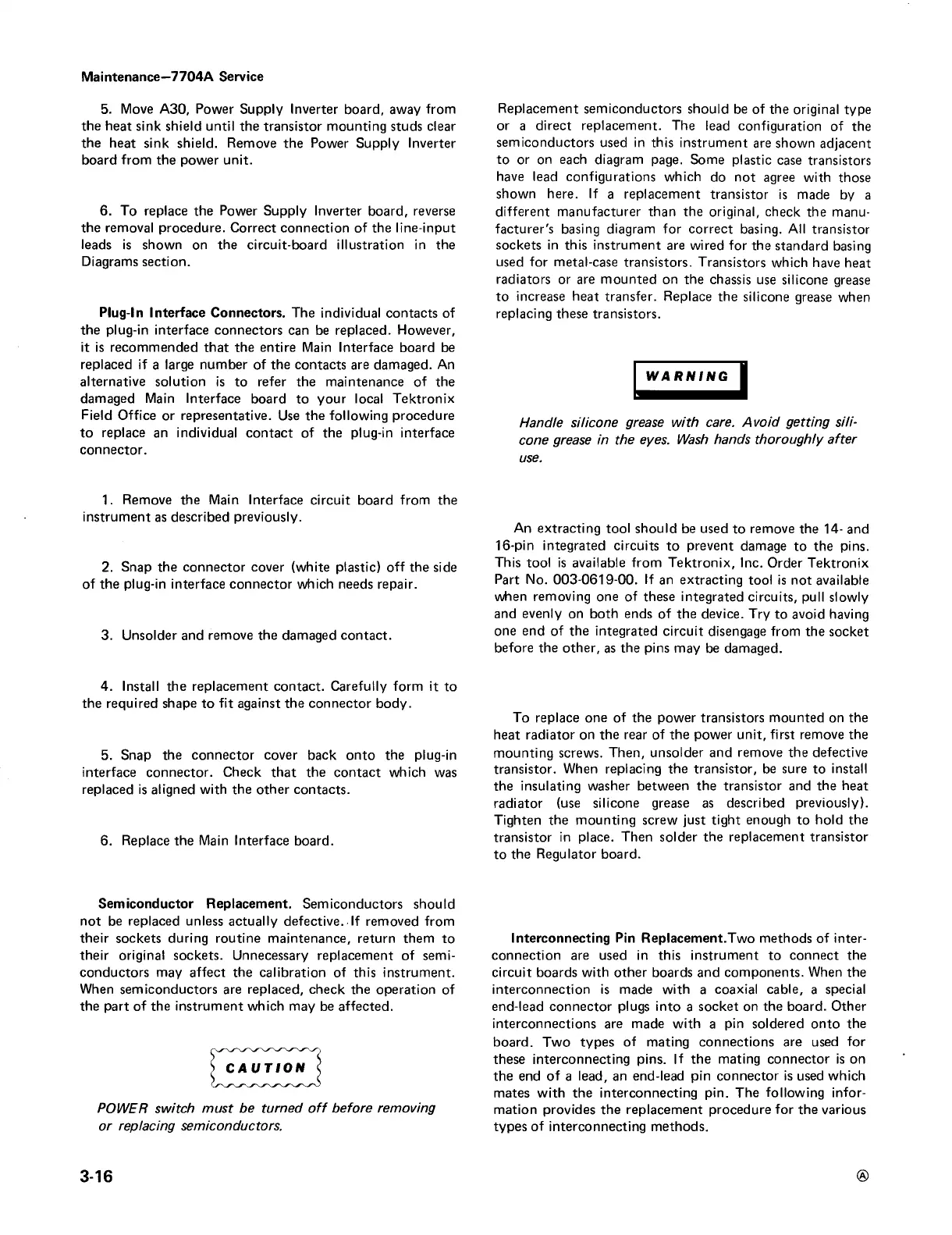

Maintenance-7704A Service
5 . M ove Α 30, P ower Supply Inverter boar d , away from
t he heat sin k s h ield until t h e transistor mounting studs clear
t he h eat sin k s h iel d . Remove t h e P ower Supply Inverter
boar d from t
h
e power un it .
6 . To replace t he P ower Su pp ly Inverter boar d , reverse
t he removal p rocedure . Correct con nection of t he line-input
lea d s is s h own on t h e circuit- b oar d illustration in t h e
Diagrams section .
Plug-in
Interface Conn ecto r s . Th
e i
n
d
ivi
d
u
al contacts of
t
h e p lug-in interface
connectors can b e re p lace d .
H
owever,
it is
recommende
d t
h
at t
h e entire M
ain Interface boar d be
replace d if
α
large num b er
of t
h e
contacts
are
d amaged . An
alternative solution is
to
refer t h e maintenance
of t
he
d amage d M ain I n terface board to your local Te ktronix
F iel d Office or representative . U se t h e following p rocedure
to re p lace an in d ividual contact of t h e p lug-in interface
connector .
1 . Remove t h e M ain Interface circuit
boar
d from t h e
instrument as d escri b e d previously .
2 . Sna p t he connector cover (w h ite plastic) off t h e si d e
of t he plug-in interface connector w h ic h needs re p air .
3 . U nsol d er an d remove t he damaged contact .
4 . Install
t
h e replacement
contact .
Carefully form
it to
t h e re qu ire d s hap e to fit against t h e connector bo dy .
5 . Sna
p
t he connector cover bac k onto t h e pl u g-in
interface connector . C hec
k t
h
at t
he
contact
w h
ic
h was
re p
lace d is
aligne
d wit
h
t
h e
ot
h er
contacts .
6 . Re p lace t h e M ain Interface board .
Semico
n
d ucto
r
R eplacement . Semicon ductors s h ould
not be re p laced un less actually defective-If removed from
t h eir sock ets d uri n g routine maintenance, return t h em to
t
h
eir original sock ets . U nnecessary re p lacement of semi-
con d uctors
may
affect
t
he cali
b ration of t
h
is instrument .
Wh en semiconductors are re p laced, check t h e op eration
of
t he p art of t h e instrument w h ic h may b e affecte d .
3- 1 6
P O WER switc h must be tu
r ned off
befo
re removing
or re p lacing semicon du ctors .
Replacement semicon
ductors s h ould be of t he original type
or α
d
irect replacement
.
T
h
e
lead configuration of t he
semicon d uctors used in
t
h
is instrument are s h own a d j acent
to or on eac h diagram page . Some p
lastic case transistors
have lea d configurations w h ic h
do not agree wit h t h ose
s h own h ere . If α replacement transistor
is ma d e by α
d
ifferent manufacturer t h
an
t he original, ch
eck t he manu-
facturer's basing diagram for
correct
basi
n
g
.
All transistor
sock ets in t h is instrument are wired for t h e
standard basing
use d for metal-case transistors . Transistors w h ic h h ave h
eat
radiators or are mounte d on t h e c h assis use silicone grease
to increase h eat transfer . Re p lace t he silicone grease w h en
replacing t h ese transistors .
W A RN I N G
H andle silicone g
rease wit h care . Avoid getting sili-
cone grease in t h e
eyes
.
W as h h ands t h o r oug h ly afte r
use .
An
extracting tool s houl
d b
e use
d to
remove
t he 14- an d
16-p in integrate d circuits
to
prevent
d amage to t he p ins .
T h is tool is available from Te k tronix, Inc . Or
d
er Te
k tronix
P art No . 003-0619-00 . If an extracting tool is not
available
w hen removing one of t h ese integrate d circuits, pull slowly
an d evenly on both en d s of t h e d evice . Try to avoid having
one en d of t he integrate d circuit disengage from t he
sock et
before t he oth er, as t h e pins may be damage d .
To replace one
of
the power transistors
mo
unted
on
t h e
heat radiator on t
he rear
of t
he power unit, first remove t h e
mounting screws . T h en, unsol d er an d remove t h e d efective
transistor . Wh en replacing t he transistor, be sure to install
t h e insulating was h er b etween t h e transistor an d t h e heat
ra d iator (use silicone grease as d escri b ed p reviously) .
Tighten t h e mounting screw j ust tig h t enoug h to h ol d t h e
transistor in p lace . T hen solder t h e re p lacement transistor
to t h e Regulator b oard .
Interconnecting P in R ep lacement .Twomet h od s of inter-
connection are use d in t
h
is instrument to
connect
t
h e
circuit b
oar
d s with
ot
h er
boar
d s
an
d components . Wh en t h e
interconnection is ma d e with α coaxial cable, α special
end-lead
connector plugs
into α soc
ket
on
t he boar d . Ot h er
interconnections
are ma d
e
wit
h
α p
in
sol d
ered
onto t
h e
boar d . Two types of mating connectio n s are used for
t hese interco n necti ng p i n s . If t he mating connector is on
t he e n d of α lead, an en d-lea d pin connector is used w h ic h
mates wit h t he intercon n ecti
ng pin .
T
he following infor-
matio n provi des
t
he re p laceme n
t
proce dure for
t
h e various
types of interconnecting met h o d s .
