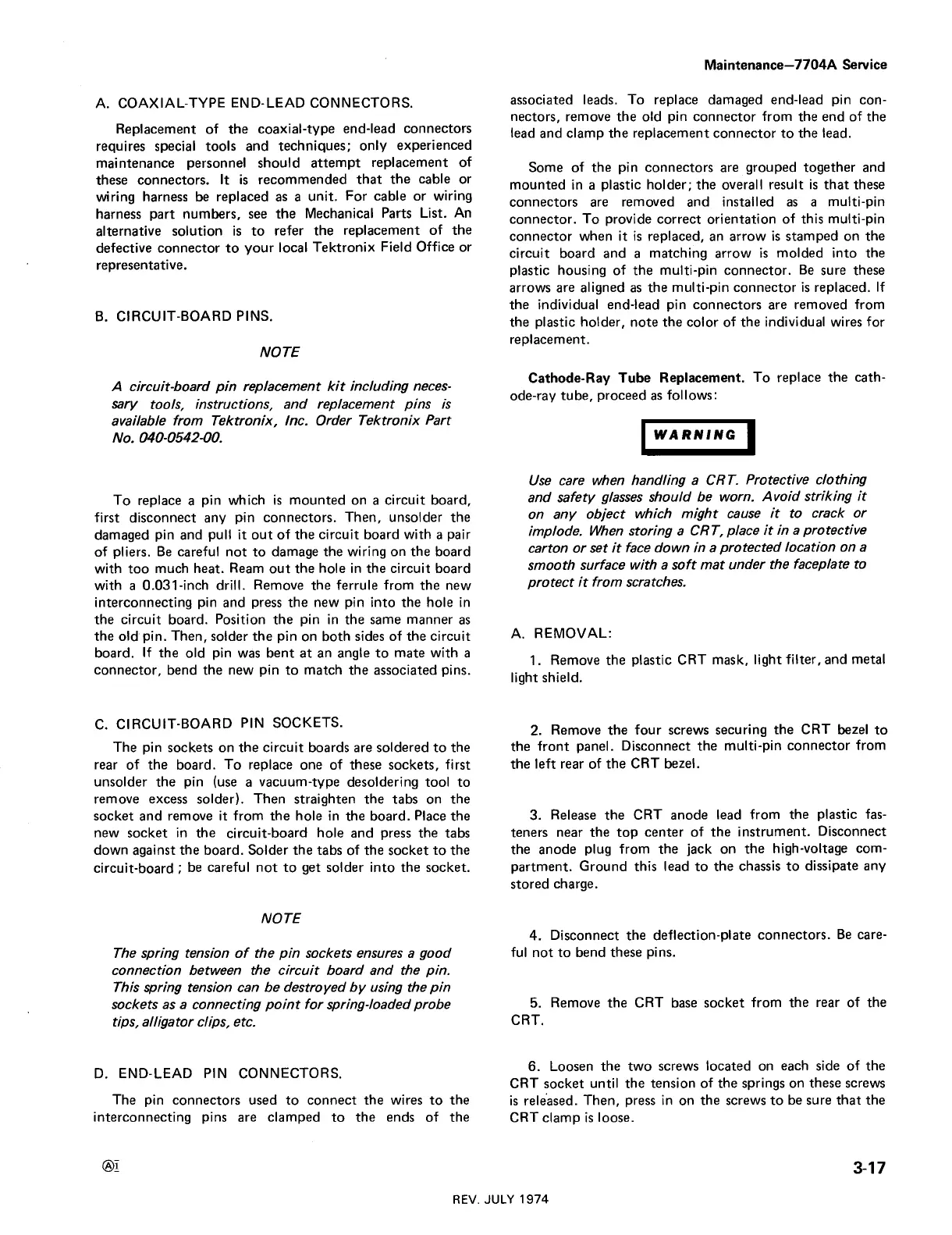

Α . COAXIAL-TYPE EN D- LE ADCO NNE CTO RS .
Replacement of t h e coaxial-type
e nd -lea d connectors
re q
u
ires s p ecial tools and
tech ni q ues ; only experience d
mai
n
tenance personnel s
h
ould
attempt replacement of
t
h ese connectors . It is recommen d ed t h at t h e cable or
wiring harness b e re p lace d as α unit .
F
or ca b le or
wiring
harness p art numbers, see t he M ech anical
P
arts
L ist .
An
alternative solution is to refer t he
replacement of t he
d efective connector to your local Te k
tronix F iel d Office or
representative .
Β . CI R C U
IT- B
OA
RD P I N S .
ΝΟΤΕ
Α circuit-board pin replacement kit
including neces-
sary tools, instructions, and replacement pins is
available
from Tektronix, Inc . Order Tektronix P art
No .
040-0542-00 .
To
re
p lace α pin w
h ic h is mounte d
on α
circ u it boar d ,
first d
isconnect
any
pin
co
nnectors . T h en, unsolder t he
damaged p
in
an
d
pull
it ou t of the circ u it boar d wit h α p ai r
of
pliers . Be careful not to d amage t he wiring on t he boar d
with too m uch h eat . Ream out the h ole in t h e circuit b oar d
with α 0 .031-inc h d rill . Remove t h e ferrule from t he new
interconnecting p in and p ress t h e new p in into t he h ole in
t h e circuit boar d .
P
osition the pin in t he same manner as
t h e
old' p
in . T hen, sol d er t he pin
on bot
h si des of t h e circuit
boa r d . If t he ol d pi n was bent at an angle to mate wit h α
con n ector, b e nd t he n ew p i n to matc h t h e associate d pins .
C . CI R C U IT- B OA
R D PIN SOC KE TS .
T h
e p in soc k ets on t
h
e circ
u
it board s are soldered to t
h e
rear of t
he
board . To
replace
one of t
hese
sock ets, first
unsolder
t h
e
pin
(use
α vacuum-type d esol d
ering
tool to
remove excess solder) .
T h
en straig
h
ten t
h
e ta b s on t
h
e
sock
et an
d remove it from t he hole in
t
he
b oard .
P
lace t
h e
new soc ket in t h e
circ
u it-board h ole and p ress t he ta b s
d ow n against t he b oar d . Sol d er t h e ta b s of t h e socket to t h e
circ u it- b oard ;
b e careful not to get sol d er into t h e sock et .
ΝΟΤΕ
T he spring tension of the pin socketsensures α good
connection between the circuit board and the pin .
This spring tension can be destroyed byu sing the pin
sockets as α connecting point for spring-loaded probe
tips, alligator clips, etc .
D . EN D- LE AD PIN CO NNE CTO R S .
T h e pin
connectors
use d
to
connect t he wires
to
t he
interco nnecting p ins are clam ped to t he en d s of t h e
REV . JUL
Y 1974
associate d lea d s . To replace damaged en d -lea d pin con-
nectors, remove t he old pin co n nector from t h e end of t he
lea d
an
d clamp t he replacementconnector
to
t h e
lead .
Some of t he pin connectors are grou p ed toget h er an d
mounte d
in
α p lastic h ol d er ; t he overall result is t h at t h ese
connectors are remove d an d installe d as α m u lti-pin
connector .
To
provide correct orientatio n of t h is multi- p i n
connector w hen it is re p lace d ,
an
arrow is stam ped on t h e
circuit b oard and α matc h ing arrow is mol de d into t h e
p lastic h ousing of t h e m u lti-pin co n nector . Be sure t h ese
arrows are aligned as t he multi-pin connector is replaced . If
t h e in d ivi du al en d -lea d p in connectors are remove d from
t h e plastic h
ol
d er, note t h e
color of
t h e in d ivi du al wires for
replacement
.
Cat h ode- R ay Tub e R eplacement . To re p lace t h e cat h -
ode-ray
tu b e, p roceed as follows :
U se care when handling α C
RT . P rotective clothing
and
safety glasses should be worn . Avoid striking it
on
any object which might cause it to
crack o r
implode . When storing α CRT, place it in
α protective
carton or set it face down in α protected
location
on
α
smooth surface with α soft mat
under t he faceplate to
protect it from scratches .
A . REMOVAL :
W ARNING
Maintenance-7704A Service
1 . Remove t h
e
p lastic C
R T mas
k ,
lig h t filter, an d metal
lig h t s h iel d .
2 .
Remove
t
he four screws securing t he CR T bezel to
t he front panel . Disco n nect t
he multi- p in co nnector from
t he left rear of t h e CR T bezel .
3 . Release t h e CR T an ode lead from t
h e plastic fas-
teners near t he top center of t
h
e
instrume n t . Disconnect
t h e ano d e p
lug from
t
he j
ac
k
on
t h e h ig h -voltage com-
partment . Ground t h is lead to t h
e c
h assis to
d issi p ate any
store d c h arge .
4 . Disconnect the d eflection- p late
con n ectors . Be care-
ful not to b en d t
h
ese
pins .
5 . Remove t he CR T b ase sock et from t h e rear of t h e
CRT .
6 . L oosen t
he
two
screws locate d
on
eac h side of t h e
C
RT
soc k et
u ntil
t
h e tension of t he s p ri n gs on t h ese screws
is release d . T h
en, press
i
n
on t
h
e
screws
to
b e sure t h
at
t h e
C R
T
clamp is loose
.
3- 1 7
