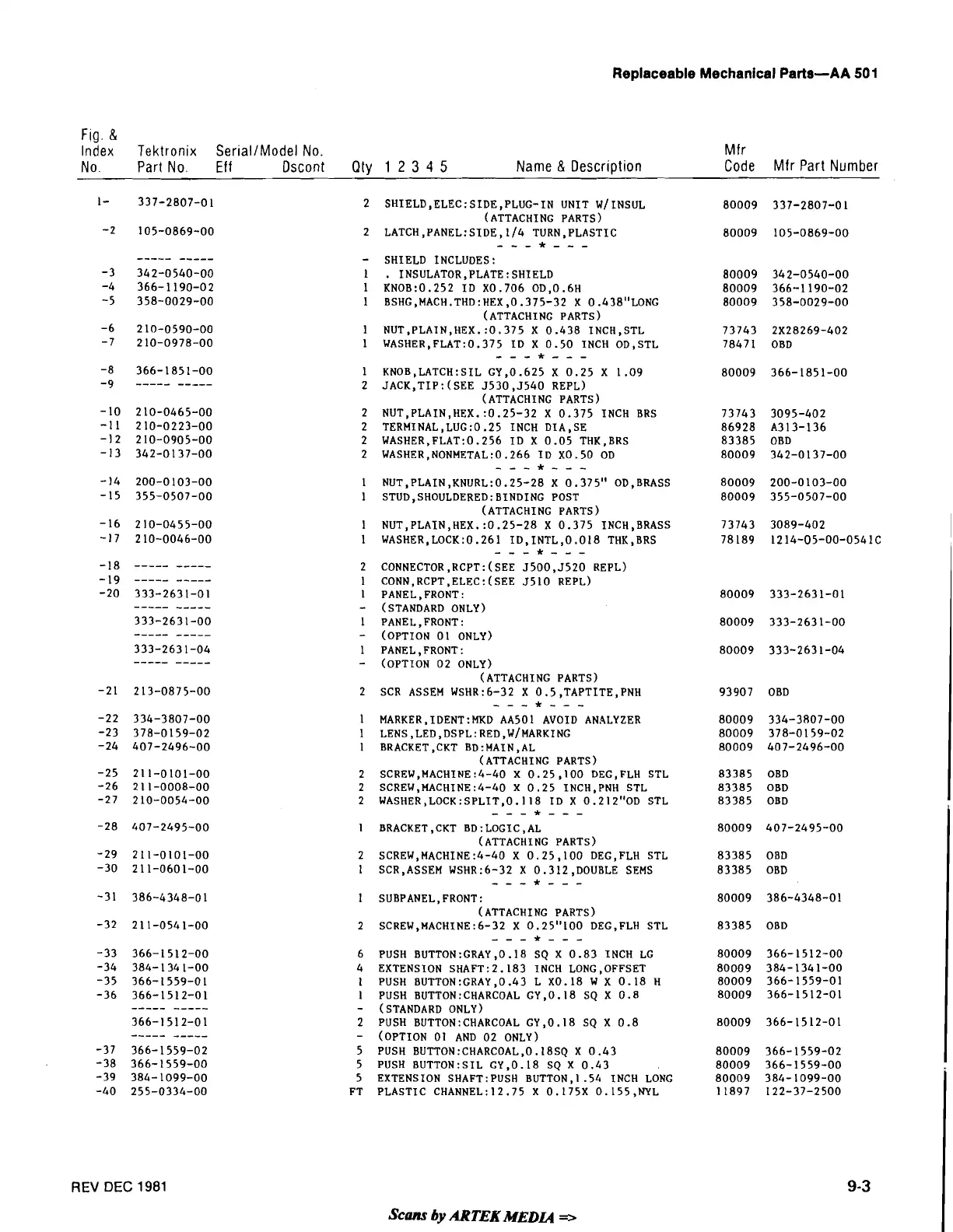

Replaceable Mechanical Parts-AA 501
Fig. &
Index Tektronix SerialIModel No.
No. Part No. Eff Dscont
M fr
Code Mfr Part Number
Qty 12345 Name & Description
2 SHIELD,ELEC:SIDE,PLUG-IN UNIT W/INSUL
(ATTACHING PARTS)
2 LATCH,PANEL:SIDE,~/~ TURN,PLASTIC
---*---
- SHIELD INCLUDES:
1 . INSULATOR,PLATE:SHIELD
1 KNOB:0.252 ID X0.706 OD,0.6H
1 BSHG,MACH.THD:HEX,O.375-32 X 0.438"LONG
(ATTACHING PARTS)
1 NUT,PLAIN,HEX.:0.375 X 0.438 INCH,STL
1 WASHER,FLAT:0.375 ID X 0.50 INCH OD,STL
---*---
1 KNOB,LATCH:SIL GY,0.625 X 0.25 X 1.09
2
JACK,TIP:(SEE 5530,5540 REPL)
(ATTACHING PARTS)
2 NUT,PLAIN,HEX.:0.25-32 X 0.375 INCH BRS
2
TERMINAL,LUG:0.25 INCH DIA,SE
2 WASHER,FLAT:0.256 ID X 0.05 THK,BRS
2 WASHER,NONMETAL:O .266 ID X0.50 OD
---*---
1 NUT,PLAIN,KNURL:O.25-28 X 0.375" OD,BRASS
1 STUD,SHOULDERED:BINDING POST
(ATTACHING PARTS)
1 NUT,PLAIN,HEX.:0.25-28 X 0.375 INCH,BRASS
1 WASHER,LOCK:0.261 ID,INTL,0.018 THK,BRS
---*---
2 CONNECTOR,RCPT:(SEE 5500,~520 REPL)
1 CONN,RCPT,ELEC:(SEE J51O REPL)
1 PANEL, FRONT :
- (STANDARD ONLY)
1 PANEL, FRONT :
- (OPTION 01 ONLY)
1 PANEL,FRONT:
- (OPTION 02 ONLY)
(ATTACHING PARTS)
2 SCR ASSEM WSHR:6-32 X 0.5,TAPTITE,PNH
---*---
1 MARKER,IDENT:MKD AA501 AVOID ANALYZER
1 LENS,LED,DSPL:RED,W/MARKING
1 BRACKET ,CKT BD:MAIN ,AL
(ATTACHING PARTS)
2 SCREW,MACHINE:4-40 X 0.25,100 DEG,FLH STL
2
SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL
2
WASHER,LOCK:SPLIT,O.l18 ID X 0.212"OD STL
---*---
1 BRACKET,CKT BD:LOGIC,AL
(ATTACHING PARTS)
2 SCREW,MACHINE:4-40 X 0.25,100 DEG,FLH STL
1 SCR,ASSEM WSHR:6-32 X 0.312,DOUBLE SEMS
---*---
1 SUBPANEL,FRONT:
(ATTACHING PARTS)
2 SCREW,MACHINE:6-32 X 0.25"100 DEG,FLH STL
---*---
6 PUSH BUTTON:GRAY,0.18 SQ X 0.83 INCH LG
4 EXTENSION SHAFT:2.183 INCH LONG,OFFSET
1 PUSH BUTTON:GRAY,0.43 L X0.18 W X 0.18 H
1 PUSH BUTT0N:CHARCOAL GY,0.18 SQ X 0.8
- (STANDARD ONLY)
2 PUSH BUTT0N:CHARCOAL GY,0.18 SQ X 0.8
- (OPTION 01 AND 02 ONLY)
5 PUSH BUTTON:CHARCOAL,O.l8SQ X 0.43
5 PUSH BUTT0N:SIL GY,0.18 SQ X 0.43
5 EXTENSION SHAFT:PUSH BUTTON,1.54 INCH LONG
FT PLASTIC
CHANNEL:12.75 X 0.175X 0.155,NYL
73743 2x28269-402
78471 OBD
3095-402
A313-136
OBD
342-0137-00
OBD
OBD
OBD
OBD
OBD
OBD
OBD
REV DEC 1981
Scans by ARTEK MEDL4 =>
