Tektronix AA 501 User Manual

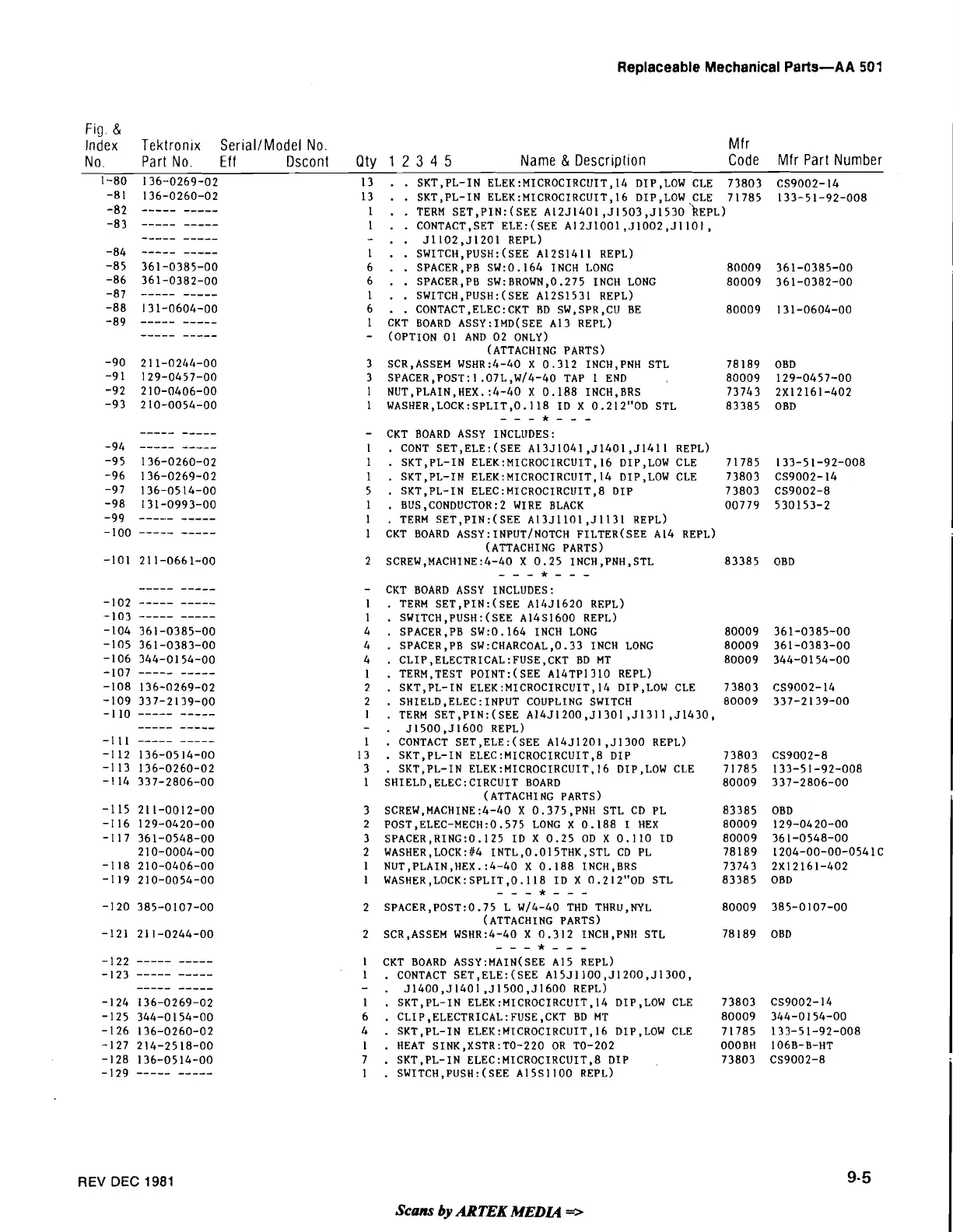

Replaceable Mechanical Parts-AA 501
Fig. &
Index Tektronix SerialIModel No.
No. Part No. Eff Dscont
Mfr
12345 Name & Description Code
Mfr Part Number
. . SKT,PL-IN ELEK:MICROCIRCUIT,l4 DIP,LOW CLE 73803
. . SKT,PL-IN ELEK:MICROCIRCUIT,l6 DIP,LOW,CLE 71785
. . TERM SET,PIN: (SEE A12J1401,J1503,J1530 ~EPL)
. . CONTACT,SET ELE:(SEE A12JlOOl,J1002,J1101,
. . J1102,J1201 REPL)
. . SWITCH,PUSH:(SEE A12S1411 REPL)
. . SPACER,PB SW:0.164 INCH LONG 80009
. . SPACER,PB SW:BROWN,0.275 INCH LONG 80009
. . SWITCH,PUSH:(SEE A12S1531 REPL)
. . CONTACT,ELEC:CKT BD SW,SPR,CU BE 80009
CKT BOARD
ASSY:IMD(SEE A13 REPL)
(OPTION
01 AND 02 ONLY)
(ATTACHING PARTS)
SCR,ASSEM WSHR:4-40 X 0.312 INCH,PNH STL 78189
SPACER,POST:I.O~L,W/~-~~ TAP 1 END 80009
NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS 73743
WASHER,LOCK:SPLIT,O.118 ID X 0.212"OD STL 83385
---*---
CKT BOARD ASSY INCLIIDES:
. CONT SET,ELE:(SEE A13J1041,J1401,J1411 REPL)
. SKT,PL-IN ELEK:MICROCIRCUIT,16 DIP,LOW CLE 71785
. SKT,PL-IN ELEK:MICROCIRCUIT,l4 DIP,LOW CLE 73803
. SKT,PL-IN ELEC:MICROCIRCUIT,8 DIP 73803
. BUS,CONDUCTOR:2 WIRE BLACK 00779
. TERM SET,PIN:(SEE A13J1101,J1131 REPL)
CKT BOARD ASSY:INPUT/NOTCH FILTER(SEE A14 REPL)
(ATTACHING PARTS)
SCREW,MACHINE:4-40 X 0.25 INCH,PNH,STL 83385
---*---
CKT BOARD ASSY INCLUDES:
. TERM SET,PIN:(SEE A14J1620 REPL)
. SWITCH,PUSH:(SEE A14S1600 REPL)
. SPACER,PB SW:0.164 INCH LONG 80009
. SPACER,PB SW:CHARCOAL,0.33 INCH LONG 80009
. CLIP,ELECTRICAL:FUSE,CKT BD MT 80009
. TERM,TEST POINT:(SEE A14TPl310 REPL)
. SKT,PL-IN ELEK:MICROCIRCUIT,14 DIP,LOW CLE 73803
. SHIELD,ELEC:INPUT COUPLING SWITCH 80009
. TERM SET,PIN:(SEE A14J1200,J1301 ,J1311,J1430,
. J 1500, J 1600 REPL)
. CONTACT SET,ELE:(SEE A14J1201,J1300 REPL)
. SKT,PL-IN ELEC:MICROCIRCUIT,8 DIP 73803
. SKT,PL-IN ELEK:MICROCIRCUIT,16 DIP,LOW CLE 71785
SHIELD,ELEC:CIRCUIT BOARD 80009
( ATTACHI NG PARTS)
SCREW,MACHINE:4-40 X 0.375,PNH STL CD PL 83385
POST,ELEC-MECH:0.575 LONG X 0.188 I HEX 80009
SPACER,RING:0.125 ID X 0.25 OD X 0.110 ID 80009
WASHER,LOCK:b4 INTL,O.O15THK,STL CD PL 78189
NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS 73743
WASHER,LOCK:SPLIT,O.118 ID X 0.212"OD STL 83385
---*---
SPACER,POST:0.75 L W/4-40 THD THRU,NYL 80009
(ATTACHING PARTS)
SCR,ASSEM WSHR:4-40 X 0.312 INCH,PNII STL 78189
---*---
CKT BOARD ASSY:MAIN(SEE A15 REPL)
. CONTACT SET,ELE:(SEE A15J1100,J1200,J1300,
. J1400,Jl401 ,J1500,J1600 REPL)
. SKT,PL-IN ELEK:MICROCIRCUIT,14 DIP,LOW CLE 73803
. CLIP,ELECTRICAL:FUSE,CKT BD MT 80009
. SKT,PL-IN ELEK:MICROCIRCUIT,16 DIP,LOW CLE 71785
. HEAT SINK,XSTR:TO-220 OR TO-202 OOOBH
. SKT,PL-IN ELEC:MICROCIRCUIT,8 DIP . 73803
. SWITCH,PUSH:(SEE A15S1100 REPL)
OBD
129-0457-00
2x12161-402
OBD
OBD
OBD
129-0420-00
361-0548-00
1204-00-00-0541C
2x12161-402
OBD
OBD
REV DEC 1981
Scans by ARTEK MEN *
