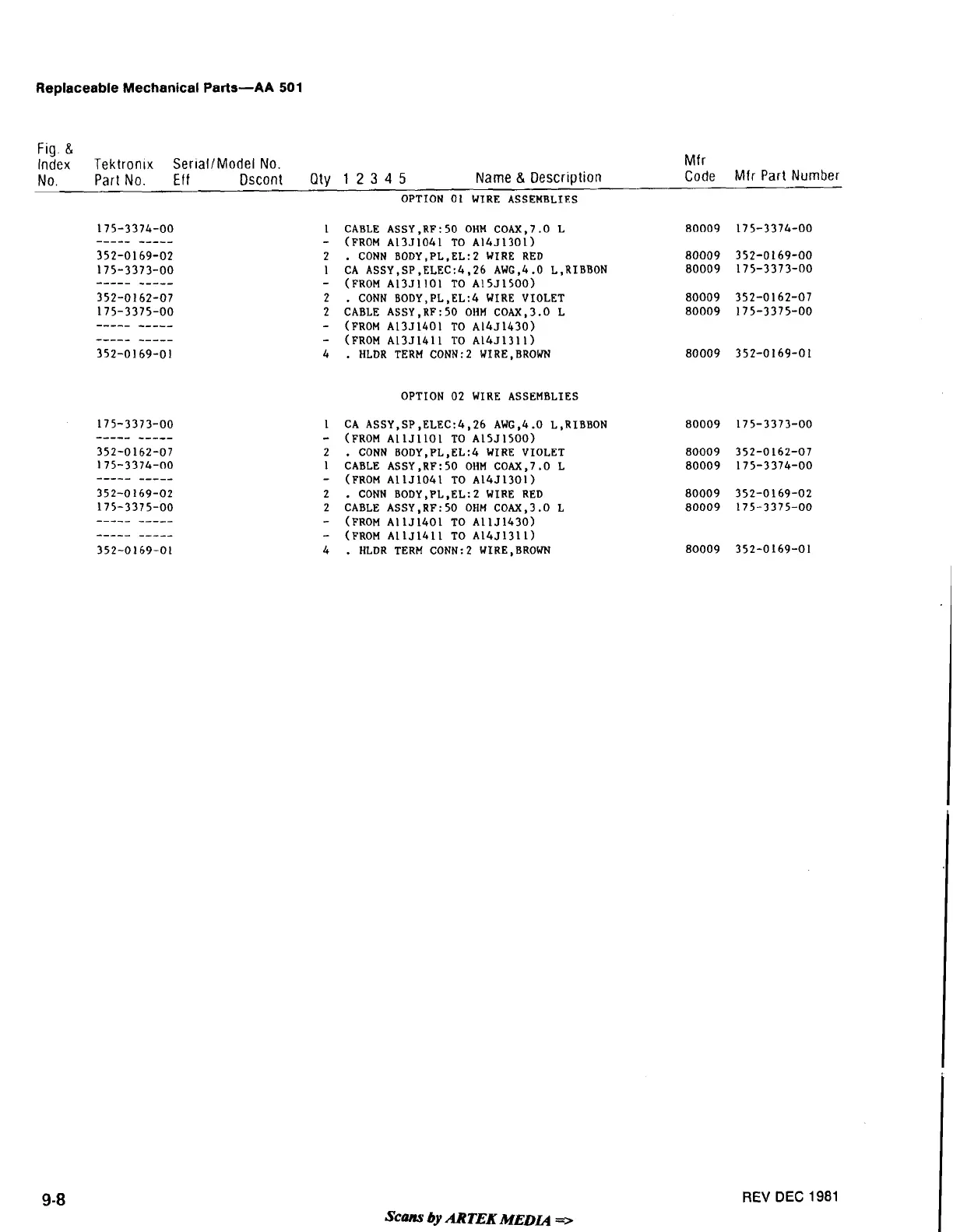

Replaceable Mechanical Parts-AA 501
Fig. &
Index Tektronix SerialtModel No. Mfr
No. Part No. Eff Dscont Qty 1 2 3 4 5 Name & Description
Code Mfr Part Number
OPTION 01 WIRE ASSEMBLIES
CABLE
ASSY,RF:50 OHM COAX.7.O L
(FROM
A13J1041 TO A14~1301)
. CONN BODY,PL,EL:2 WIRE RED
CA
ASSY,SP,ELEC:4,26 AWG,4.0 L,RIBBON
(FROM A13J1101 TO A15~1500)
. CONN BODY,PL,EL:4 WIRE VIOLET
CABLE
ASSY,RF:50 OHM COAX,3.0 L
(FROM
A13J1401 TO A14J1430)
(FROM A13J1411 TO A14~1311)
. HLDR TERM CONN:2 WIRE,BROWN
OPTION 02 WIRE ASSEMBLIES
CA
ASSY,SP,ELEC:4,26 AWG.4.0 L,RIBBON
(FROM AllJllOl TO A15J1500)
. CONN BODY,PL,EL:4 WIRE VIOLET
CABLE ASSY
,RF: 50 OHM COAX ,7.0 L
(FROM
AllJ1041 TO A14J1301)
. CONN BODY,PL,EL:2 WIRE RED
CABLE
ASSY,RF:50 OHM COAX,3.0 L
(FROM AllJ1401 TO AllJ1430)
(FROM AllJ1411 TO A14J1311)
. HLDR TERM CONN:2 WIRE,BROWN
Scans by ARTEK MEDLQ -
REV DEG 1981
