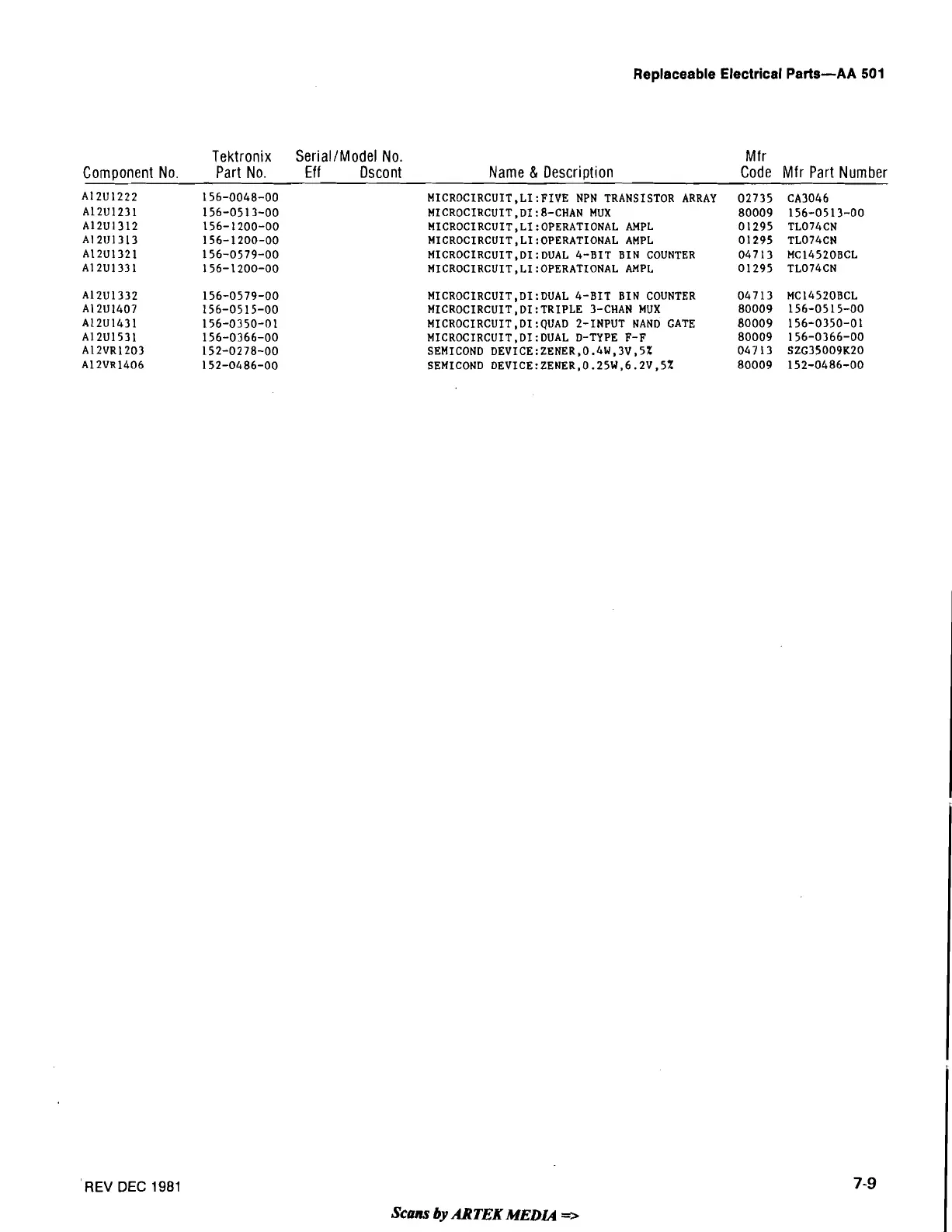

Replaceable Electrical Parts-AA 501
Component No.
A12U1222
A12U1231
A12U1312
A12111313
A12U1321
A12U1331
Tektronix SerialIModel No.
Part No. Ef f Dscont
156-0048-00
156-0513-00
156-1200-00
156-1200-00
156-0579-00
156-1200-00
REV DEC 1981
Name & Description
MICROCIRCUIT,LI:FIVE NPN TRANSISTOR ARRAY
MICROCIRCUIT,DI:8-CHAN MUX
MICROCIRCUIT,LI:OPERATIONAL AMPL
MICROCIRCUIT,LI:OPERATIONAL AMPL
MICROCIRCUIT,DI:DUAL 4-BIT BIN COUNTER
MICROCIRCUIT,LI:OPERATIONAL AMPL
Mfr
Code Mfr Part Number
02735 CA3046
80009 156-0513-00
01295
TL074CN
01295 TL074CN
04713 MC1452OBCL
01295 TL074CN
MICROCIRCUIT,DI:DUAL 4-BIT BIN COUNTER 04713 MC14520BCL
MICROCIRCUIT,DI:TRIPLE 3-CHAN MUX 80009 156-0515-00
MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 80009 156-0350-01
MICROCIRCUIT,DI:DUAL D-TYPE F-F 80009 156-0366-00
SEMICOND
DEVICE:ZENER,0.4W,3V,5% 047 13 SZG35009K20
SEMICOND DEVICE:ZENER,0.25W,6.2V,5% 80009 152-0486-00
