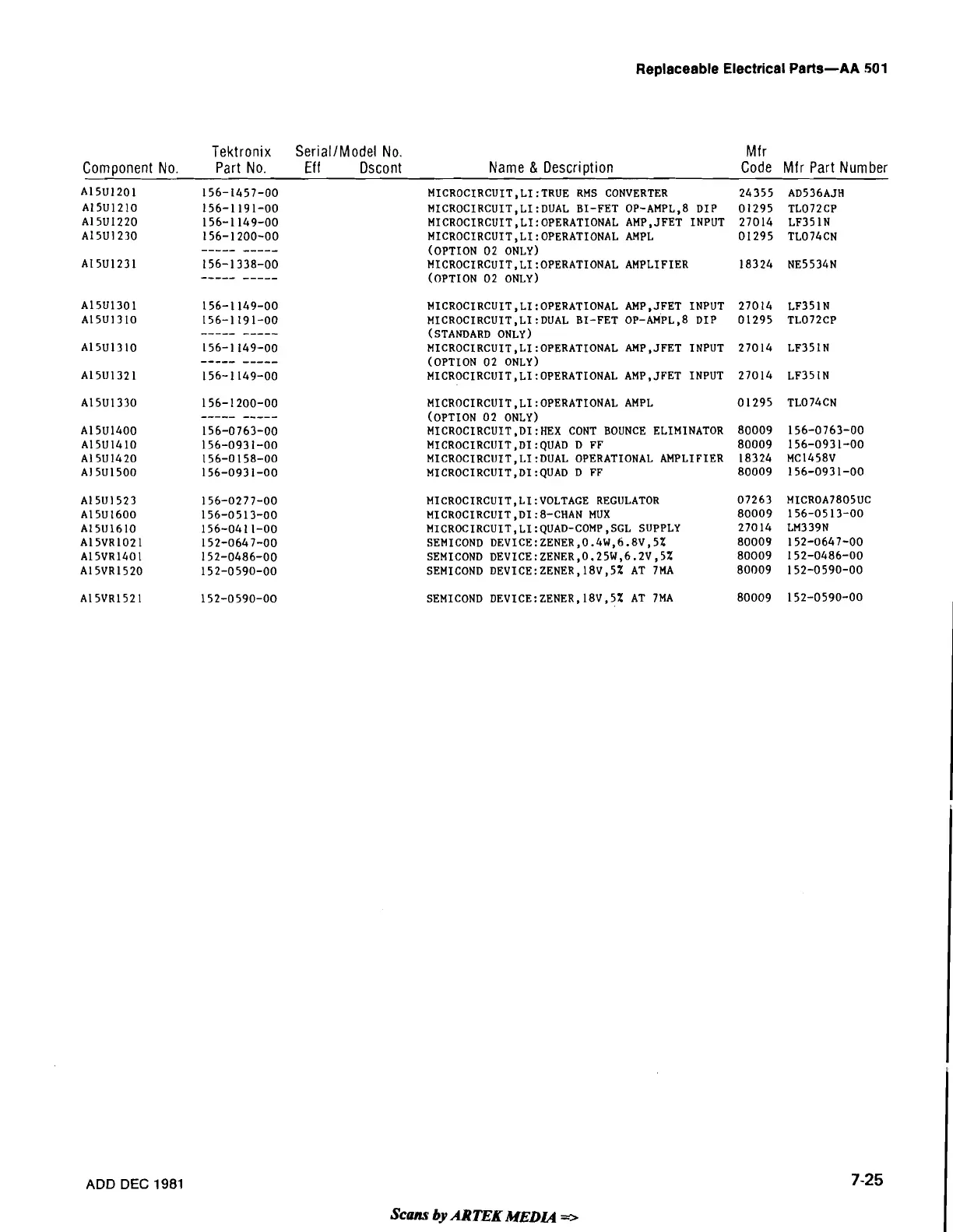

Replaceable Electrical Parts-AA 501
Tektronix SeriallModel No.
Com~onent No. Part No. Eft Dscont
ADD DEC 1981
Mf r
Name & Description Code Mfr Part Number
MICROCIRCUIT,LI:TRUE RMS CONVERTER 24355 AD536AJH
MICROCIRCUIT,LI:DUAL BI-FET OP-AMPL.8 DIP 01295 TL072CP
MICROCIRCUIT,LI:OPERATIONAL AMP,JFET INPUT 27014 LF351N
MICROCIRCUIT,LI:OPERATIONAL AMPL 01 295 TL074CN
(OPTION 02 ONLY)
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 18324 NE5534N
(OPTION 02 ONLY)
MICROCIRCUIT,LI:OPERATIONAL AMP,JFET INPUT 27014 LF351N
MICROCIRCUIT,LI:DUAL BI-FET OP-AMPL,8 DIP 01295 TL072CP
(STANDARD ONLY)
MICROCIRCUIT,LI:OPERATIONAL AMP,JFET INPUT 27014 LF351N
(OPTION 02 ONLY)
MICROCIRCUIT,LI:OPERATIONAL AMP,JFET INPUT 27014 LF351N
MICROCIRCUIT,LI:OPERATIONAL AMPL 01295 TL074CN
(OPTION 02 ONLY)
MICROCIRCUIT,DI:HEX CONT BOUNCE ELIMINATOR 80009 156-0763-00
MICROCIRCUIT,DI:QUAD D FF 80009 156-0931-00
MICROCIRCUIT,LI:DUAL OPERATIONAL AMPLIFIER 18324 MC1458V
MICROCIRCUIT,DI:QUAD D FF 80009 156-0931-00
MICROCIRCUIT,LI:VOLTAGE REGULATOR 07263 MICROA7805UC
MICROCIRCUIT,DI:8-CHAN MUX
80009 156-0513-00
MICROCIRCUIT,LI:QUAD-COMP,SGL SUPPLY 27014 LM339N
SEMICOND DEVICE:ZENER,0.4W,6.8V,5% 80009 152-0647-00
SEMICOND
DEVICE:ZENER,0.25W,6.2V,5% 80009 152-0486-00
SEMICOND DEVICE:ZENER,18V,5% AT 7MA 80009 152-0590-00
SEMICOND
DEVICE:ZENER,18V,5% AT 7MA 80009 152-0590-00
