Acquire the Signal
2. Connect the ground lead or leads to the circuit
ground.
You can connect one or two of the common
ground leads for each group of 8 channels
(wires).
3. If neede d, connect the appropriate grabber for
each channel to the p robe tip.
4. Connect each channel to the desired circuit
test point.

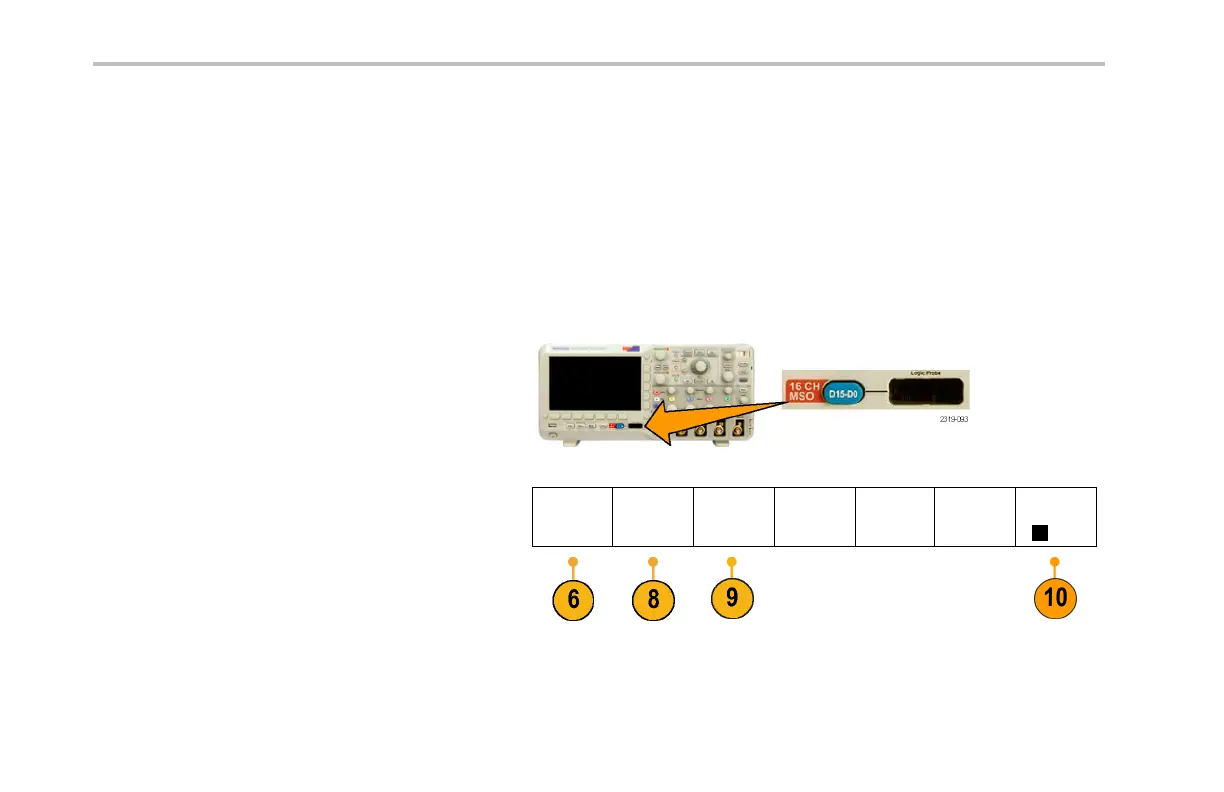

5. Push the D15 - D0 front panel button to display
the menu.
6. Push the lower-bezel D15 - D0 button to
access the D15 - D0 On or Off menu.
D15 – D0
On/Off
Thresholds Edit Labels Height
S |ML
114 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
