Tektronix DPO2000 Series User Manual

Analyze Waveform Data

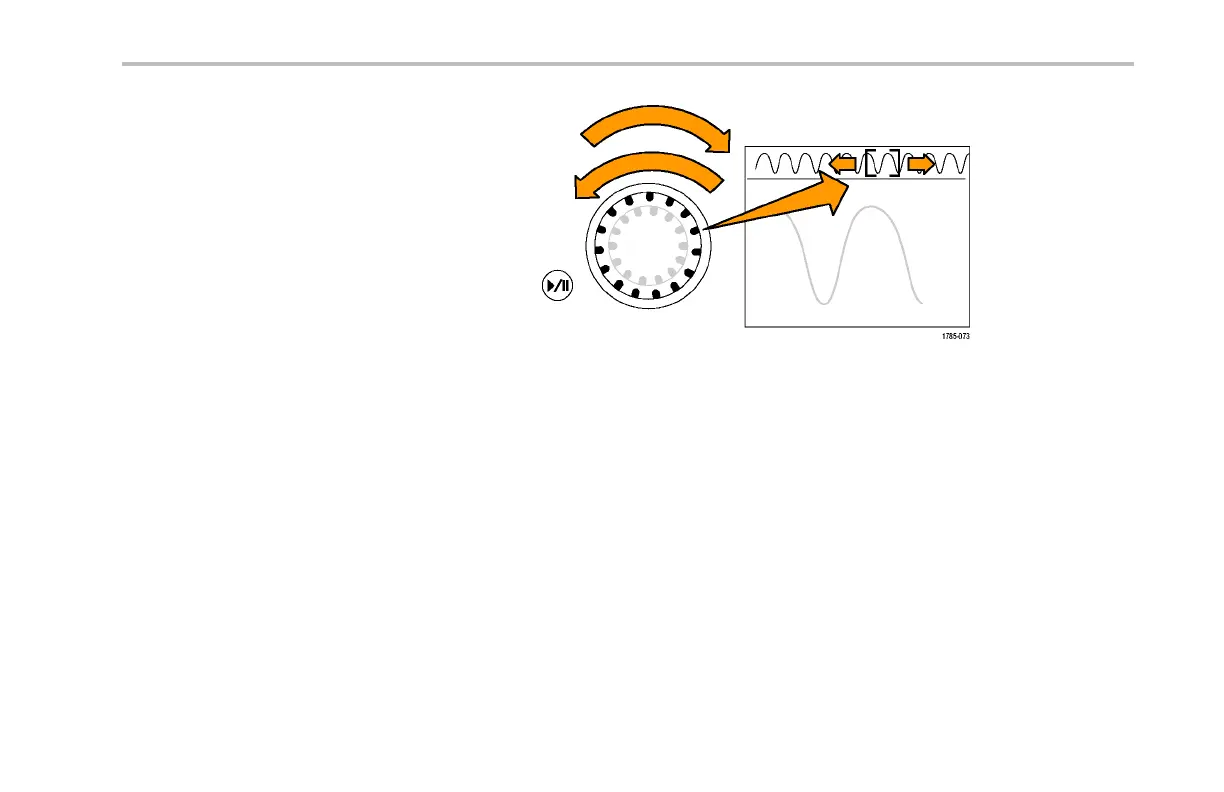

1. Turn the pan (outer) knob of the
pan-zoom controls to pan the waveform.
Turntheknobclockwisetopan
forward. Turn it counte rclockwise to pan
backwards. The further you turn the
knob, the faster the zoom window pans.
Playing and Pausing a Waveform
Use the play-pause feature to automatically pan through a wave form record. To use it:
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 201
