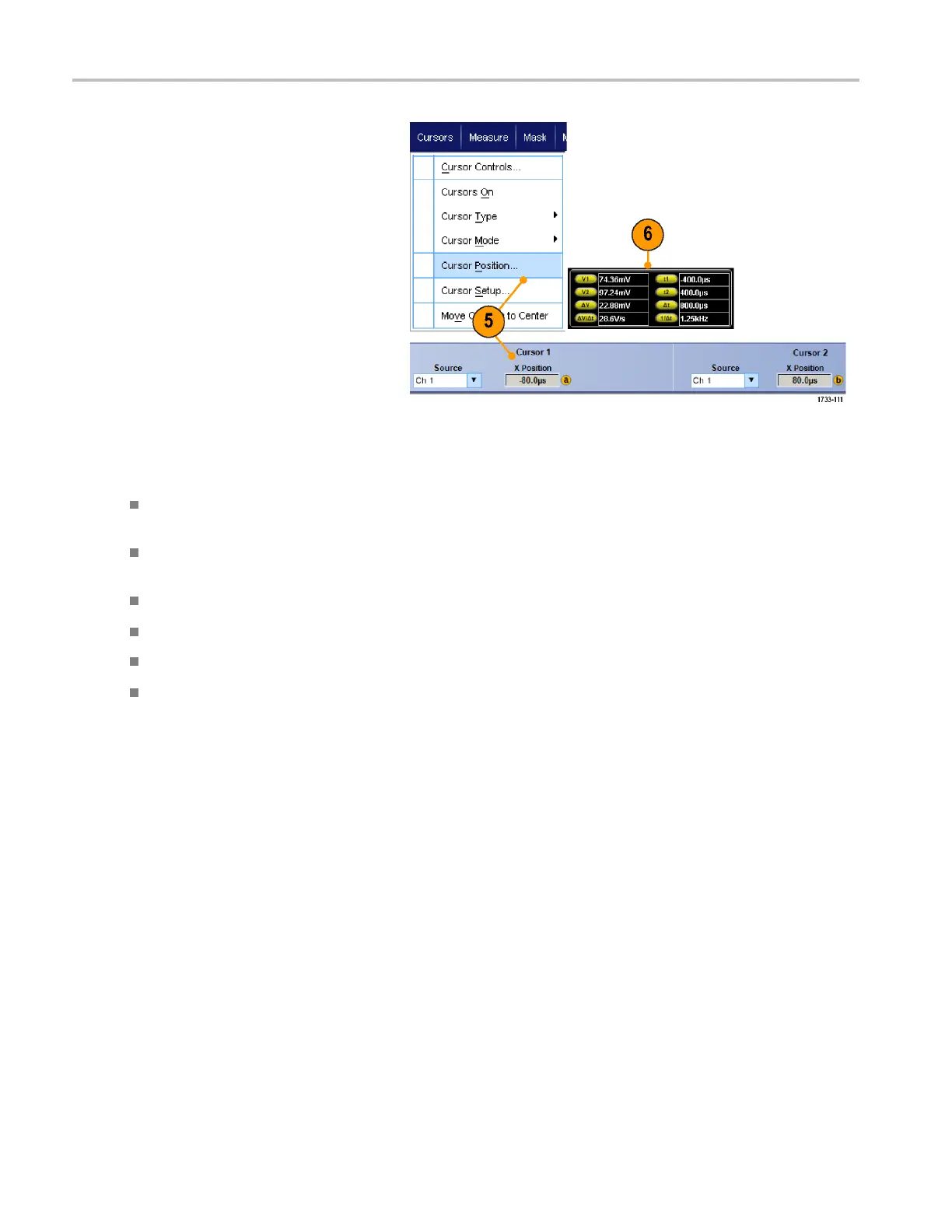

5. Select Cursors > C urso r Position...,
and then use the multipurpose knobs to
adjust the cur
sor position.
6. Read cursor me
asurement results in the
display.
Quick Tips
Use the Cursor Track Mode to set the cursors to move in tandem. Use the Cursor Independent mode to move the
cursors s
eparately.
If you us
e the zoom graticule, you can place a cursor directly on a specific waveform point to take precision
measurements.
You can also move cursors by clicking and d ragging them to a new position.
You can also move cursors to the center of the display by pressing Move Cursors to Center.
You can select solid or dashed cursors.
Vertical cursors measure the time from the trigger point to the vertical cursor.
90 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
