Saving and Recal
ling Information

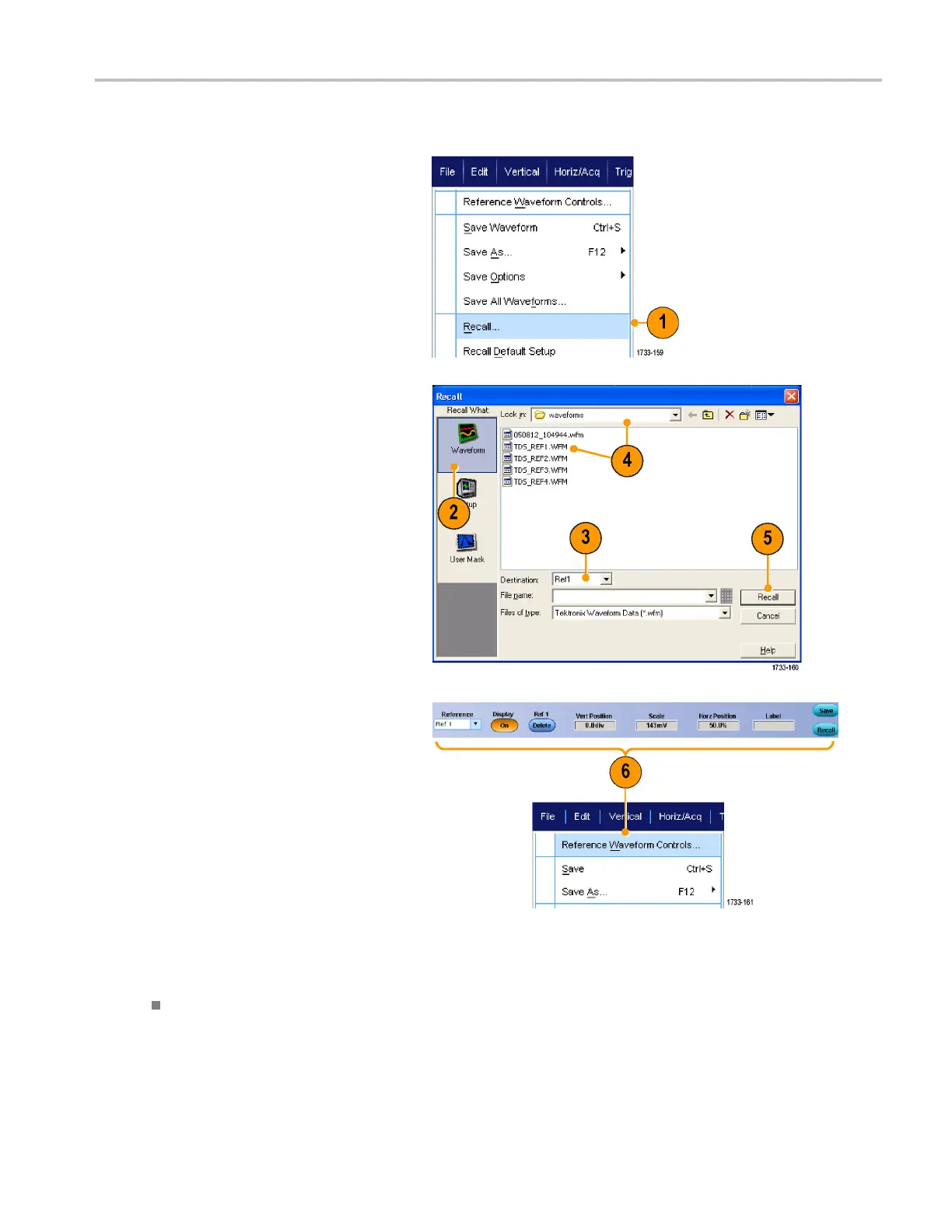

Recalling Waveforms
1. Select File > R
ecall....
2. Click Waveform.
3. Select the Destination of the waveform
you are recalling.
4. Select the waveform to recall.
5. Click Recall. Clicking Recall turns on the
reference waveform and activates the
Reference Waveform control w indow.
6. Use the controls to adjust the Reference
waveform. You c an a ls o acces s the
Reference Waveform control window by
selecting File > Reference Waveform
Controls....
Quick Tip
You can save a number of different file types but you can only recall setup (*.set) files and waveform (*.wfm) files.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 113
