Application Exa
mples
Application Examples
This section c ontains ways to use your instrument in common troubleshooting tasks and extending the u se of your instrument.
Capturing Intermittent Anomalies
One of the most difficult tasks that design engineers face is tracking down the cause of intermittent failures. If you know
what type of a
nomaly you are looking for, it is easy to configure the oscilloscope advanced triggering capability to isolate it.
However, when you do not know what you are looking for, it can be exceptionally tedious and time consuming, especially
given the low w aveform capture rate on traditional digital storage oscilloscopes.
Digital Phosphor Oscilloscopes enabled by DPX technology have an exceptionally fast acquisition mode called FastAcq,
which allow
syoutofind anomalies like these in a matter of seconds or minutes. A regular DSO w ould take hours or
days to find the same event.
Use the following procedure to capture intermittent anomalies.

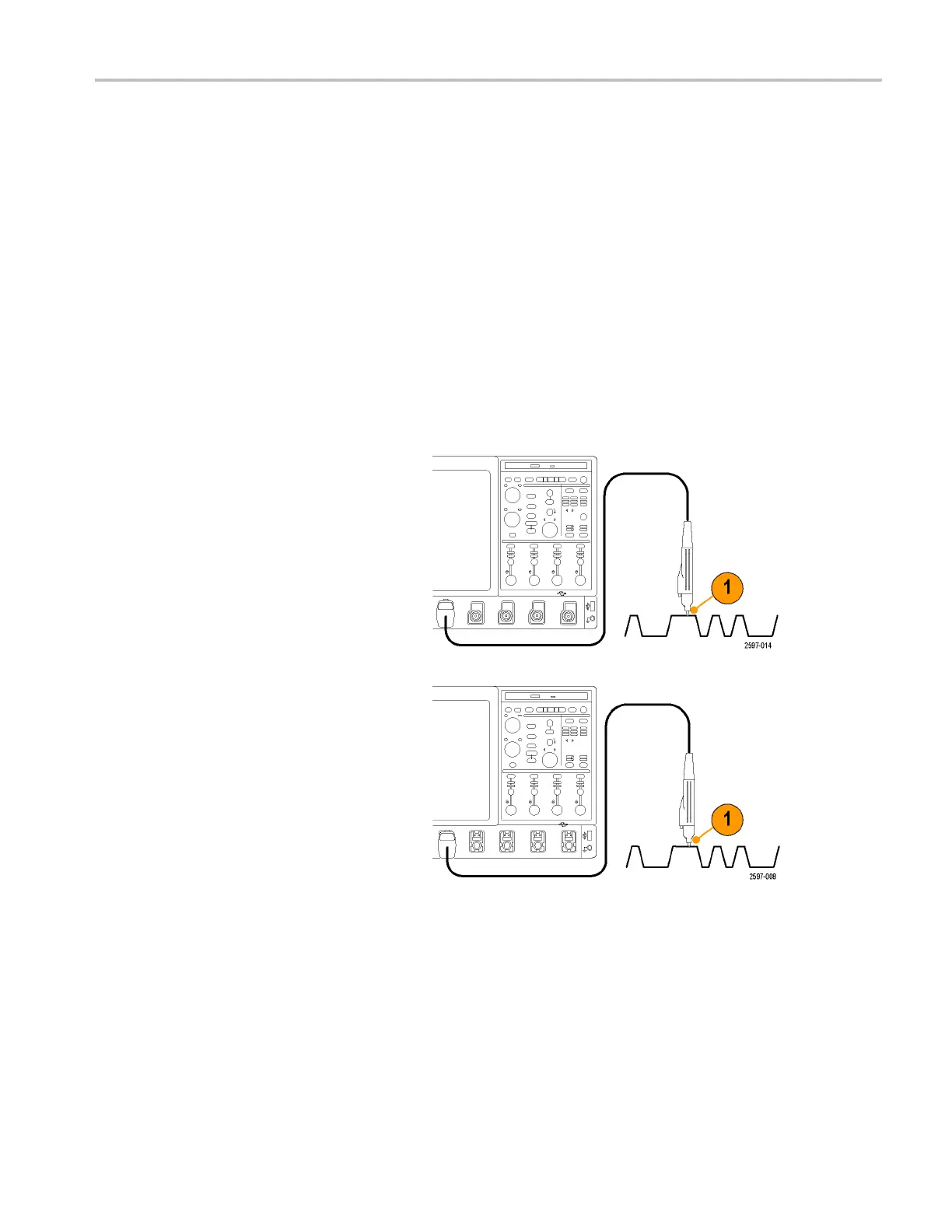

1. Connect the probe to the input signal
source.
<4 GHz mo
dels
≥4 GHz models
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 123
