Run Application

Software

Follow the inst

ructions provided with the

application software to install it. To run the

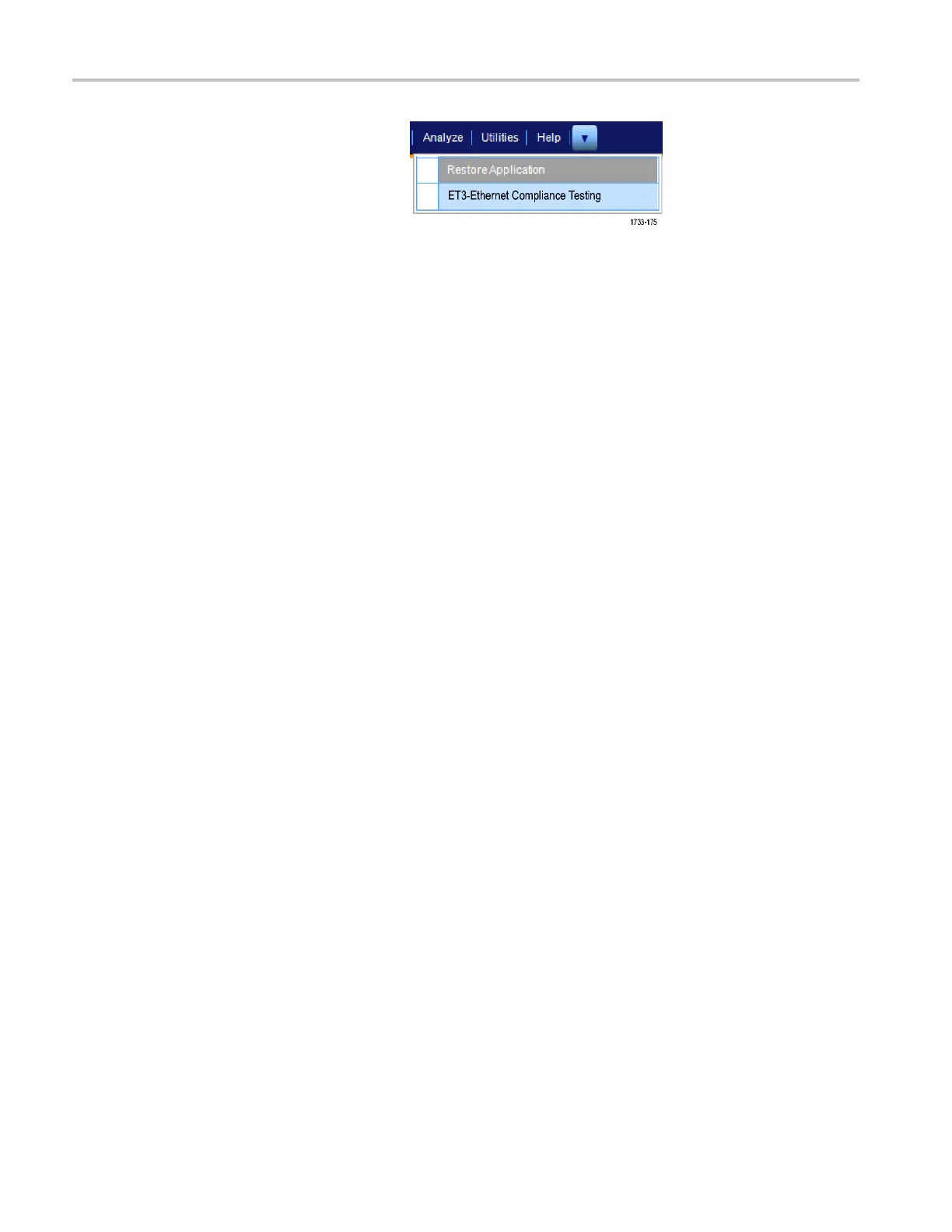

software, select Analyze and then select the

application.
