Getting Acquain
tedwithYourInstrument
WARNING. If there is vertical clipping, there
may be a dangerous voltage on the probe tip,
but the readou
t will indicate a low voltage.
A
symbol appears in the measurement
readout if a vertical clipping condition exists.
Automatic am
plitude-related measurements
where the signal is vertically clipped produce
inaccurate results. Clipping also causes
inaccurate a
mplitude values in waveforms
that are stored or exported for use in other
programs. If a math waveform is clipped, it
will not aff
ect amplitude measurements on
that m ath waveform.
8. Status: Di
splay of a cquisition status,
mode, and number of acquisitions;
trigger status; date; time; and quick
referenc
e to record length and horizontal
parameters

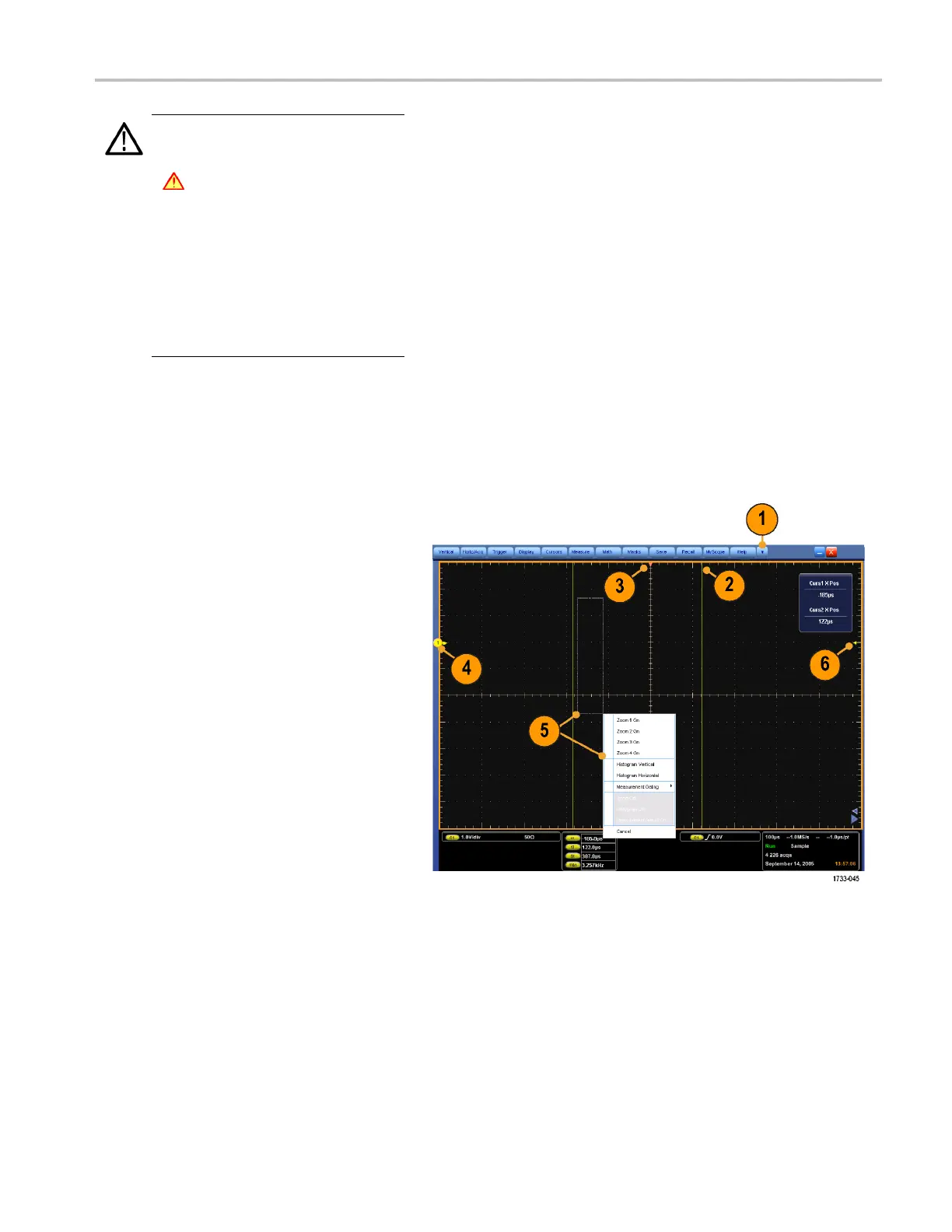

1. Buttons/Menu: Click to toggle between
toolbar a
nd menu bar modes and to
customize the toolbar
2. Drag cursors to measure waveforms on
screen
3. Drag the position icons to reposition a
wavefo
rm
4. Click t
he icon to assign the multipurpose
knobs to waveform v ertical position and
scale
5. Drag across the waveform area to create
aboxf
or zooming, enabling/disabling
histograms, and gating measurements
6. Drag icon to change the trigger level
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 17
