Display a Wavefo

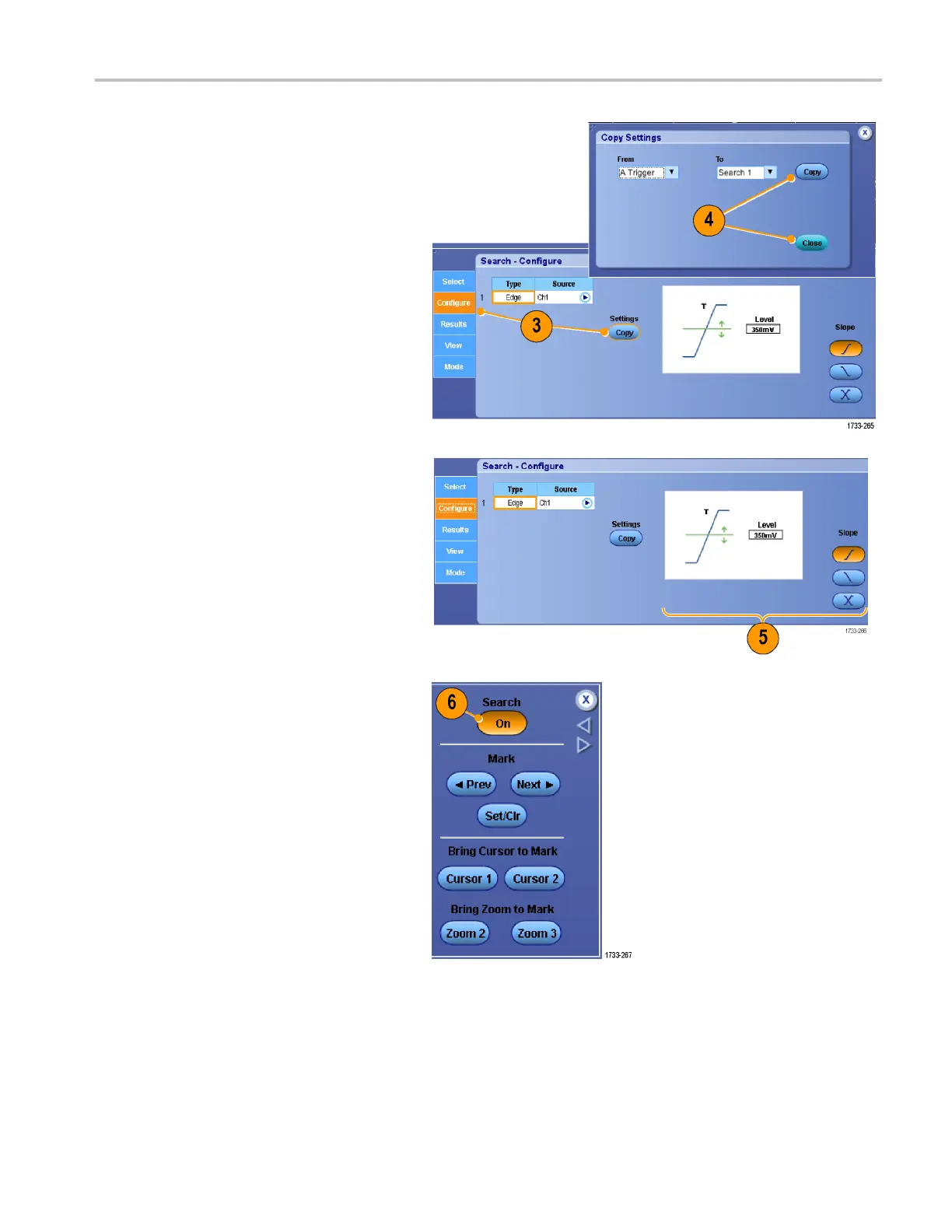

3. Set up your search from the Conﬁgure

tab. To copy the trigger setup or a search

setup, press S

ettings Copy.

4. From the Copy S

ettings window, select

where to copy the settings from and

where to copy the settings to. Press

Copy and then

Close.

5. To modify the current search setup,

adjust th

e displayed controls. Displayed

controls vary depending on the selected

search.

6. If not already on, press Search to toggle

search to on.

DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 75
