Set up a clocked parallel bus

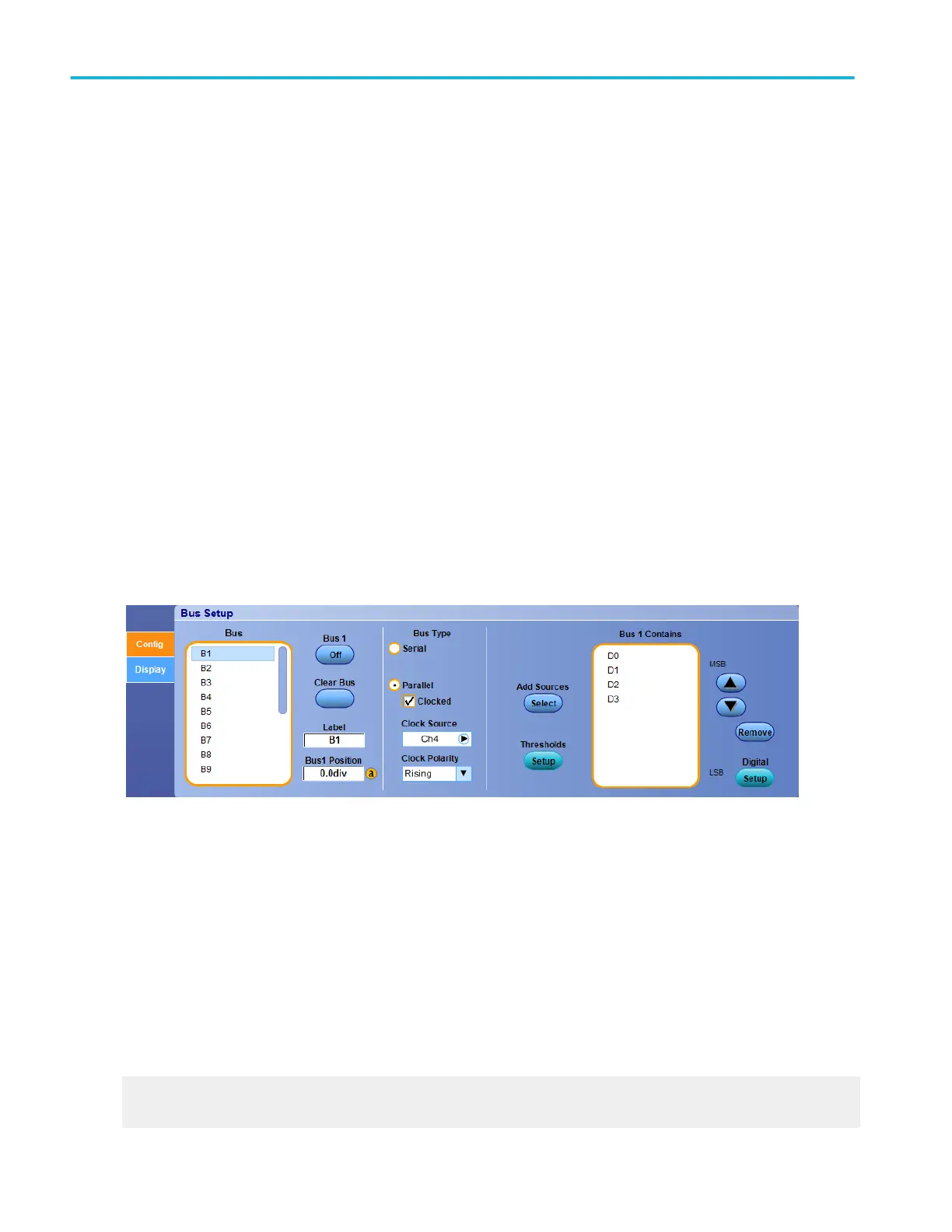

From the Bus Setup window, select a bus from the Bus list and then select the Parallel bus type.
Overview
The instrument can trigger parallel bus data only when the Clock Source is Channel 4.
For information on the controls, click the buttons.
■
Bus List
■
Display & Clear
■
Label
■
Position
■
Clock Source
■
Clock Polarity
■
Add Sources
■
Thresholds
■
Bit Order
■
Remove
To use
■
To change the Clock Source, select a channel from the cascading list. (Digital channels are not available on SX models.)
■
To change the Clock Polarity, select from Rising, Falling, or Either.
Behavior
■
Rising causes the instrument to decode data on the rising edge of the signal.
■
Falling causes the instrument to decode data on the falling edge of the signal.
■
Either causes the instrument to decode data on the rising and the falling edges of the signal.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Bus setups
148 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
