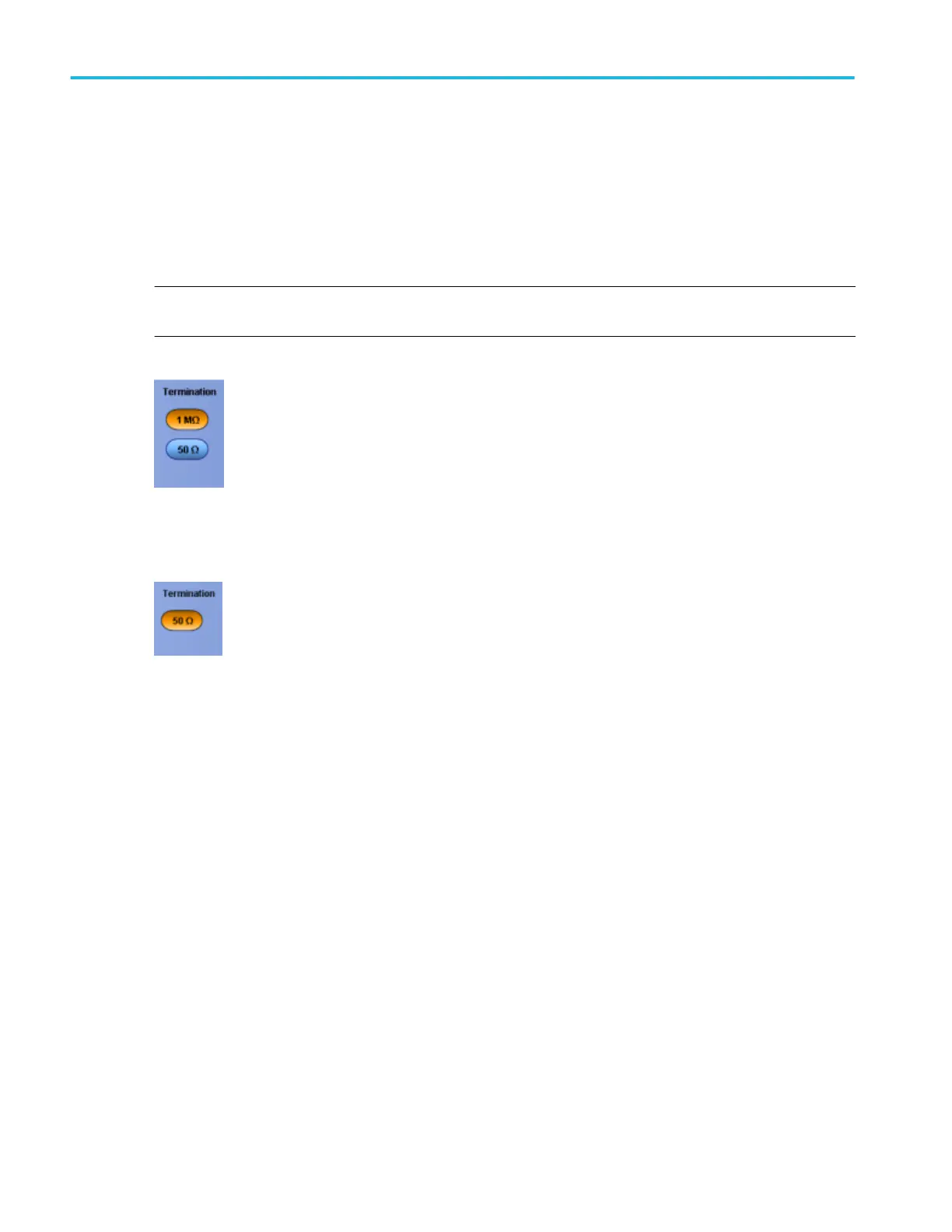

Select the termination

From the Vertical menu, select Vertical Setup.

To use. Use the Termination controls to select the channel input resistance:

For DPO7000C and MSO/DPO5000B oscilloscopes:

■

Select 1 MΩ for use with high impedance passive probes.

■

Select 50 Ω for use with most active probes and low impedance (Zo) probes.

NOTE. Termination is automatically set for TPP0500 and TPP1000 Series probes on the MSO/DPO5000B Series

instruments.

For MSO/DPO70000C/DX and DPO70000SX oscilloscopes, Termination is fixed at 50 Ω.
