Set the trigger qualification
You can qualify some trigger types by the logical state of other channels or by a bus pattern for MSO70000C/DX Series
instruments.
■
Click Occurs to trigger the instrument only when the defined trigger type occurs. No qualification occurs.
■
Click Logic to trigger the instrument when the defined trigger type occurs and the logic input conditions occur.
■
Click Occurs And to trigger the instrument when the defined trigger type occurs and the bus pattern occurs on the selected
bus.

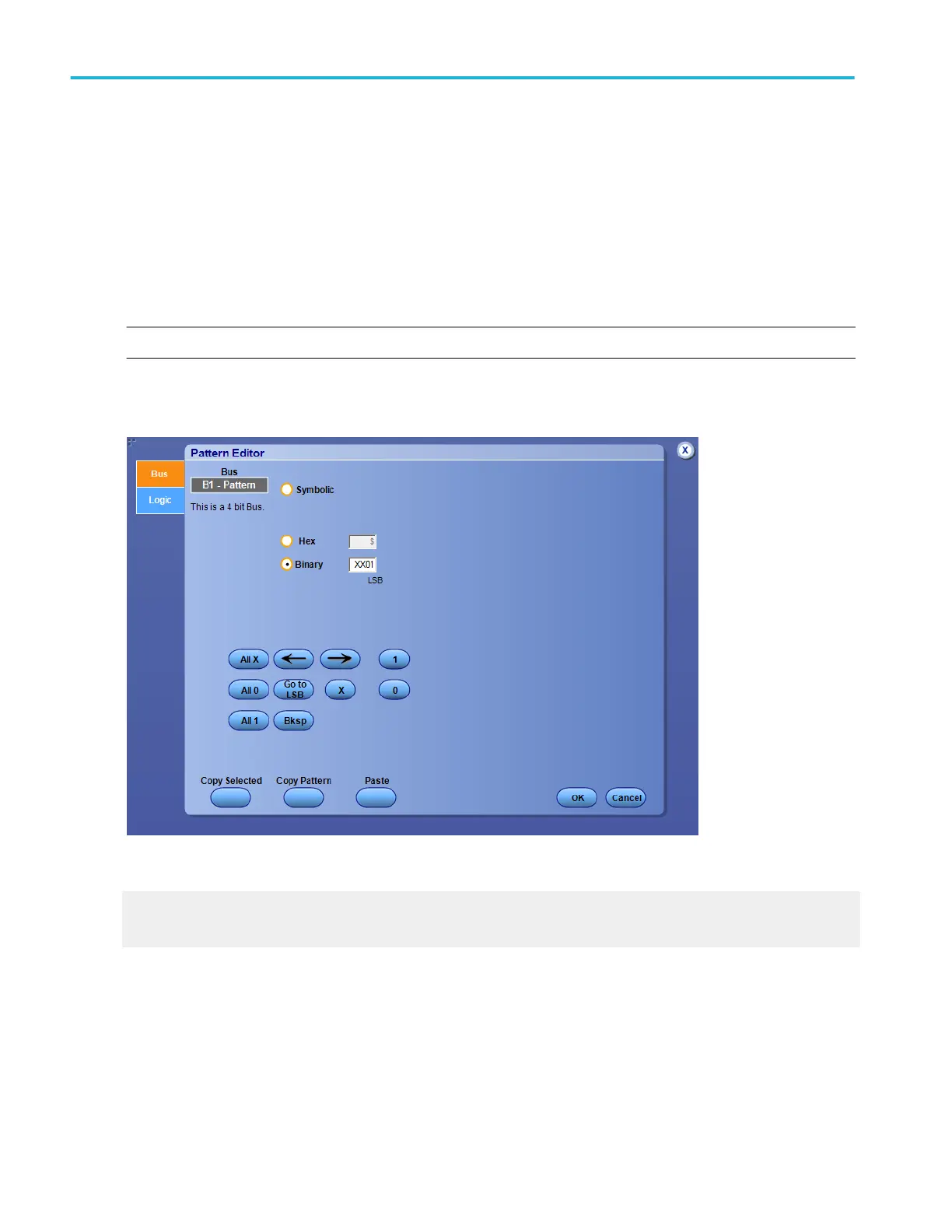

Set the trigger occurs and qualification
NOTE. This online help supports many oscilloscope models from Tektronix. This feature is only available on some models.
For the supported instruments, use the controls to set up the Occurs And pattern for the instrument to qualify the following
triggers: Glitch, Runt, Setup/Hold, Timeout, Transition, Width, and Window.
What do you want to do next?
Learn how to set the voltage threshold level for channels used as digital waveforms.
Learn about bus setups.
Oscilloscope reference
836 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
