To use
1. In the Type-Source table, identify the search Type you want to use; then click the right arrow for that search type under
Source.
2. After the Source Selection window opens, identify the Channel, Source, Clock, or Logic parameters to be used in the
search.
3. Click OK
Behavior

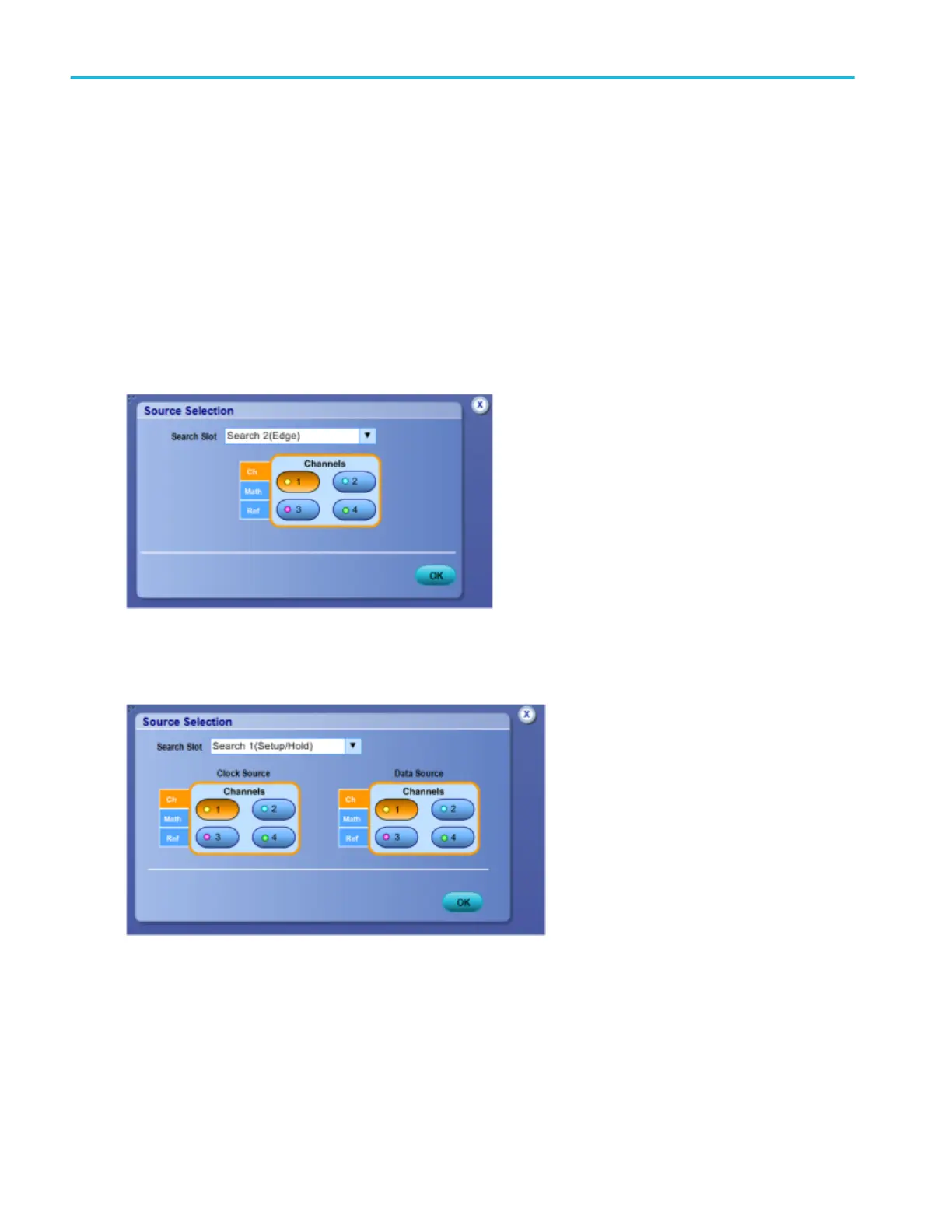

Use the single Source Selection window to set the Channel parameters for an Edge, Glitch, Runt, Transition, Width, Window, or
Timeout search.
Use the dual Source Selection window to set the Clock and Data Source parameters for a Setup and Hold search.
Use the Logic Source Selection window to set the threshold parameters for a Pattern or State logic search.
Analyzing waveforms
300 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
