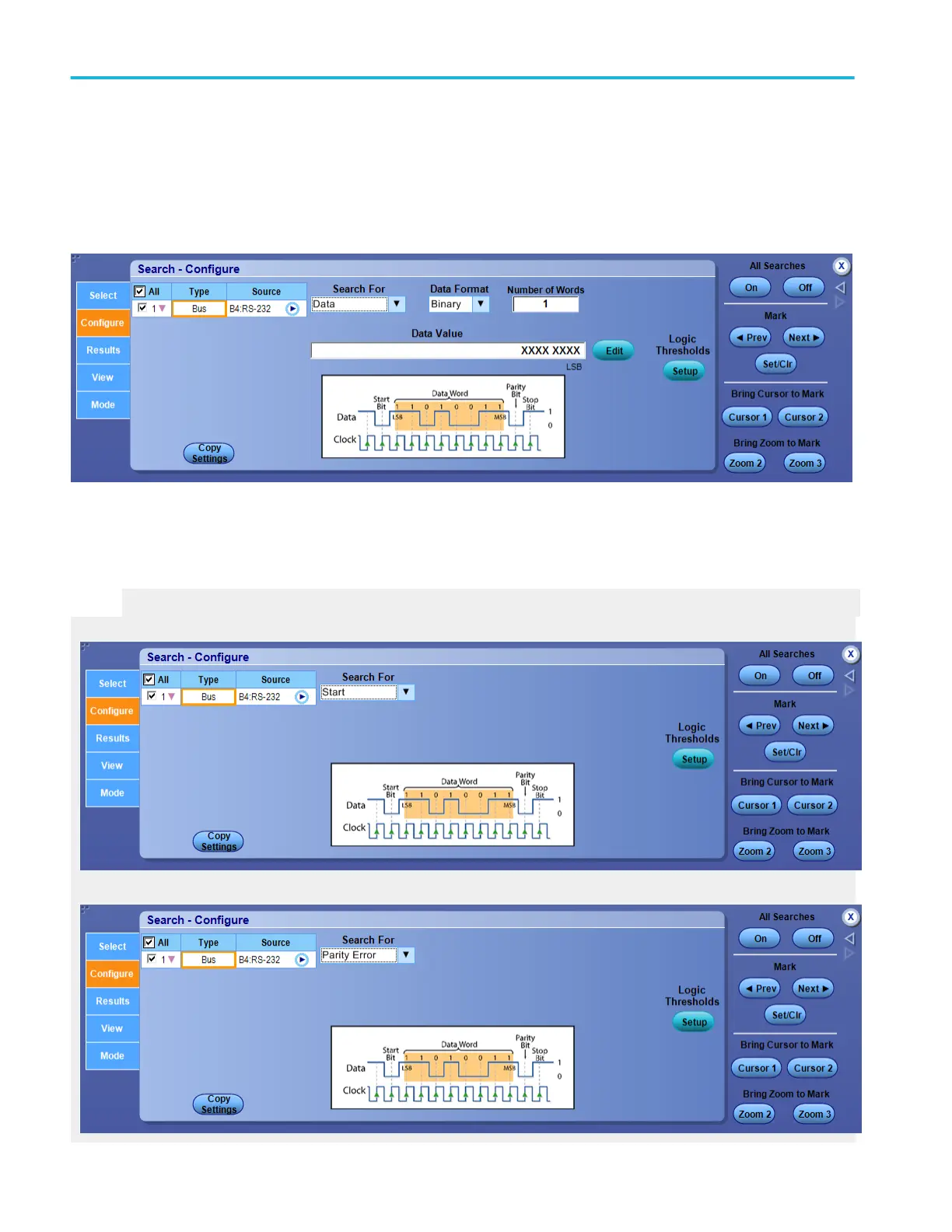

For some Search For selections, you must set additional fields to define other parameters such as for a Data.

In this example, you need to set a Number of Bytes, Data Format, and Data Value (click the Edit button). Optionally, you can

also set the component threshold levels through the Logic Thresholds Setup button.

Click the Search For selections Start, Parity Error, or Data to view their parameters.

What do you want to do next?

Learn about bus setups.

Search for start

Search for parity error

Analyzing waveforms
