Tektronix DPO7054C Printable Help

To use.
■
Click the Trigger Type box and select Bus from the drop-down list.
■
Click the Bus box and select the bus number or name from the drop-down list.
NOTE. You have the option to add a user-defined label for bus sources.
■
Click the Logic Thresholds Setup button to set the voltage threshold levels for the channels in the bus.
■
Select the type of bus cycle or activity to use as the trigger from the Trigger On drop-down list.
■
For some Trigger On selections, you must set additional fields to define other parameters such as for a Data Packet.

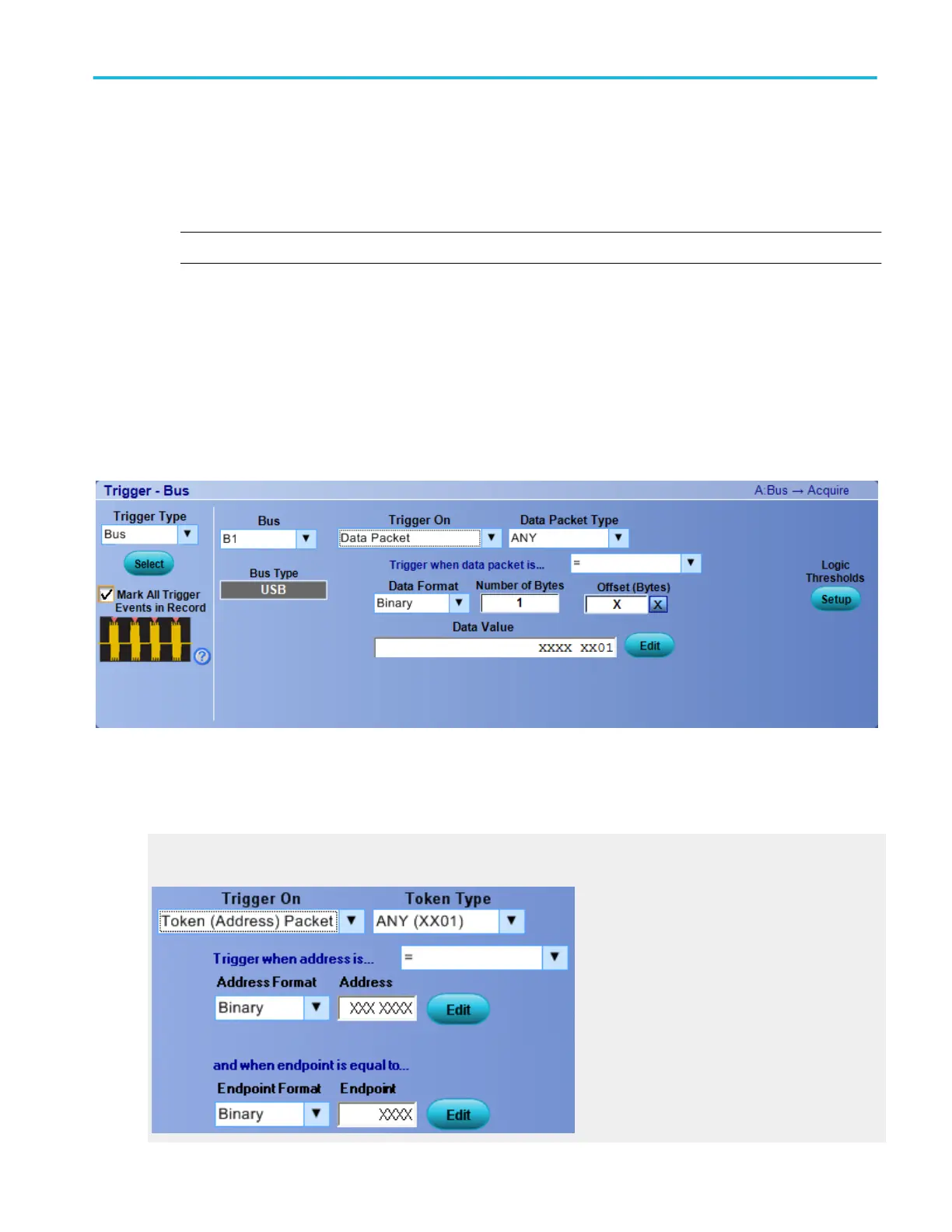

In this example, you need to set a Data Packet Type, Trigger when data packet is, Data Format, Number of Bytes, Byte
Offset, and Data Value (click the Edit button). Optionally, you can also set the component threshold levels through the Logic
Thresholds Setup button.
Click the Trigger On selections Token (Address) Packet, Handshake Packet, Special Packet, or Error to view their parameters.
What do you want to do next?
Learn about bus setups.
Trigger on Token (Address) Packet
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 393
