NOTE. The Bit Stuffing error type option is not available on high speed bus.

Start/Complete

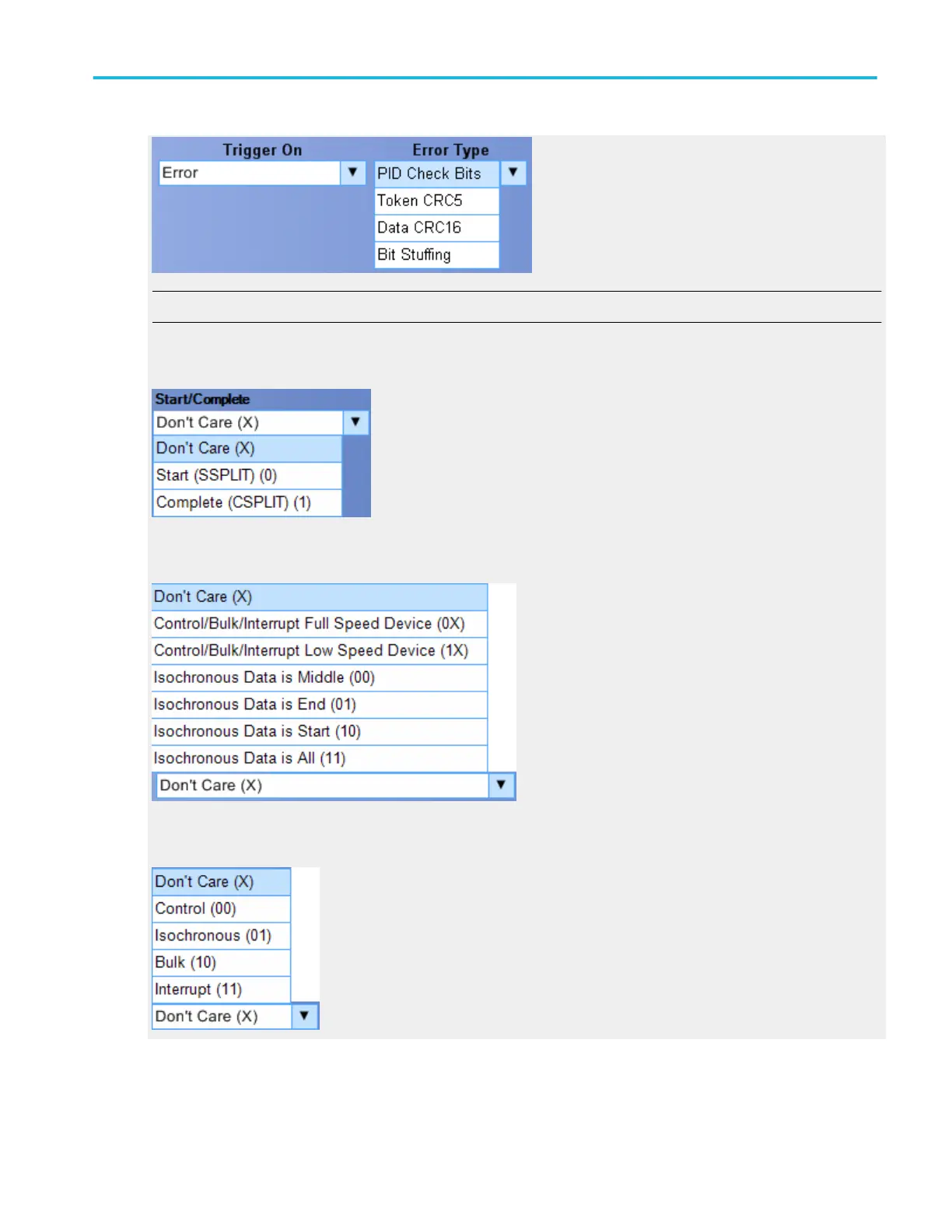

The options available in Start/Complete are as follows:

Start and end bits

The options available in Start and End bits are as follows:

Endpoint type

The options available in Endpoint Type are as follows:

Trigger setups

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 395
