Tektronix DPO7054C Printable Help

Trigger on nth event (B-Event scan). B-Event Scan is not available on MSO/DPO5000B Series instruments.
From the Trig menu, select A - B Trigger Sequence.

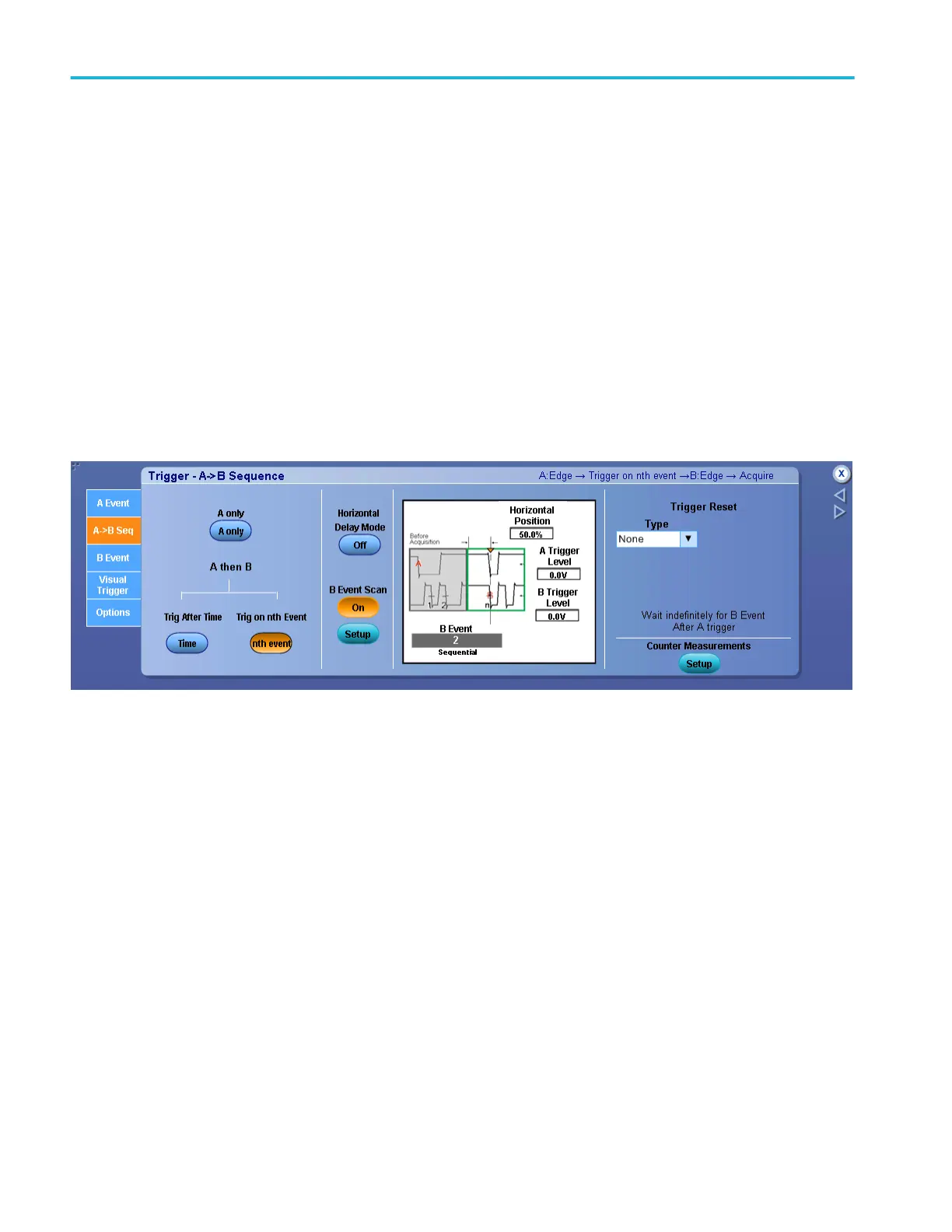

Overview. Use the controls in this window to define the parameters for the A ->B Sequence trigger with B-Event Scan on.
For information on the controls, click the buttons.
■
Trigger Level
■
Trigger Events
■
B-Event Scan
■
Horizontal Position
■
Trigger Reset
■
Counter Measurements
To use.
1. Set up the A Event and B Events from their individual tabs.
2. Select the A–>B Seq tab; then click Trig on nth Event.
3. Set the Horizontal Delay Mode button to Off.
4. Set the B Event Scan button to On.
5. Click Setup button to set the values for B Event Advance mode, Start Event, End Event, and Advance After.
Trigger setups
456 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
