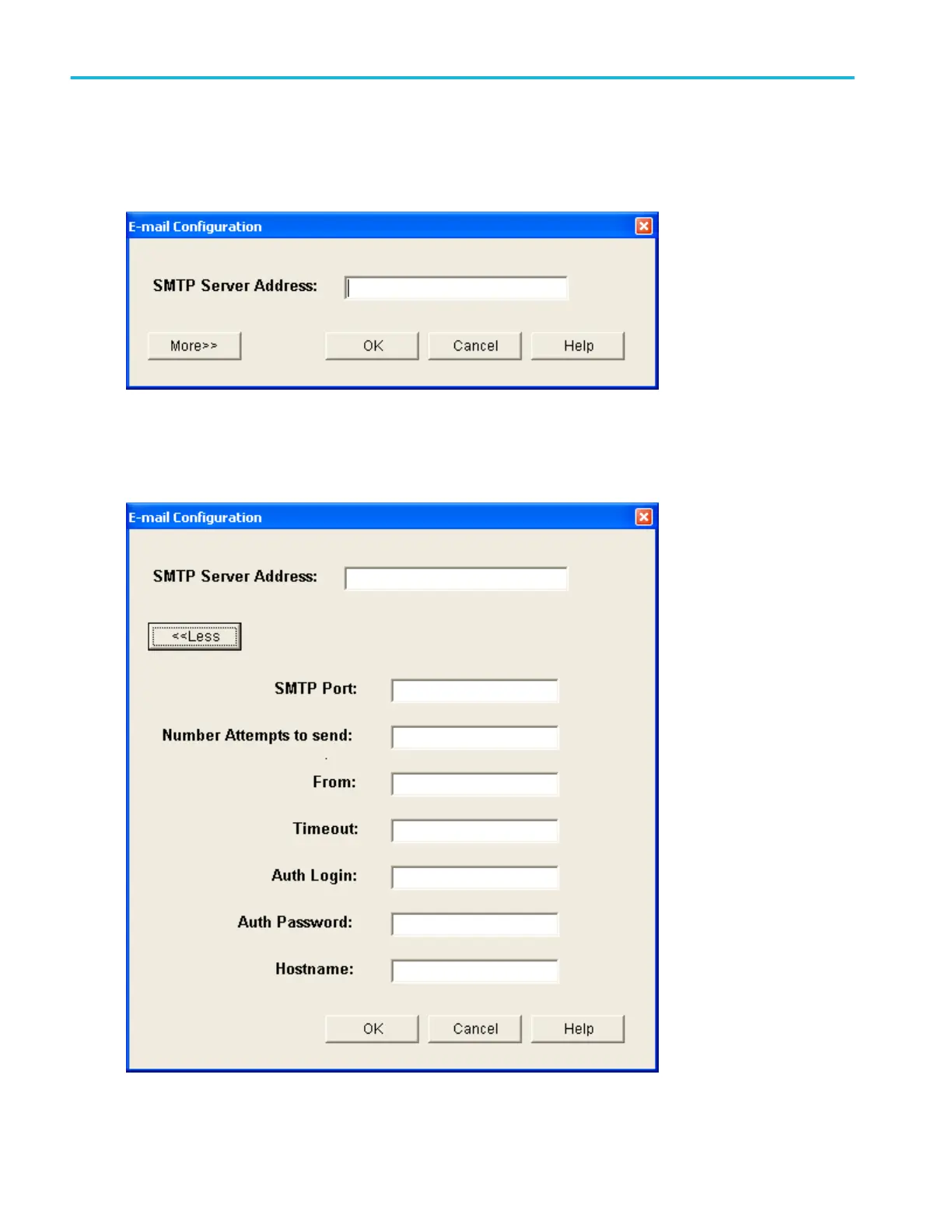

Overview. Use this dialog box to enter the address of the mail server to use when sending E-mail on events. You must have a

server entered in the SMTP Server Address box for your instrument to send e-mail.

You can customize your e-mail by selecting the number of attempts to make, entering a From address, setting the time out

length, entering a login and password if necessary, and entering a host name.
