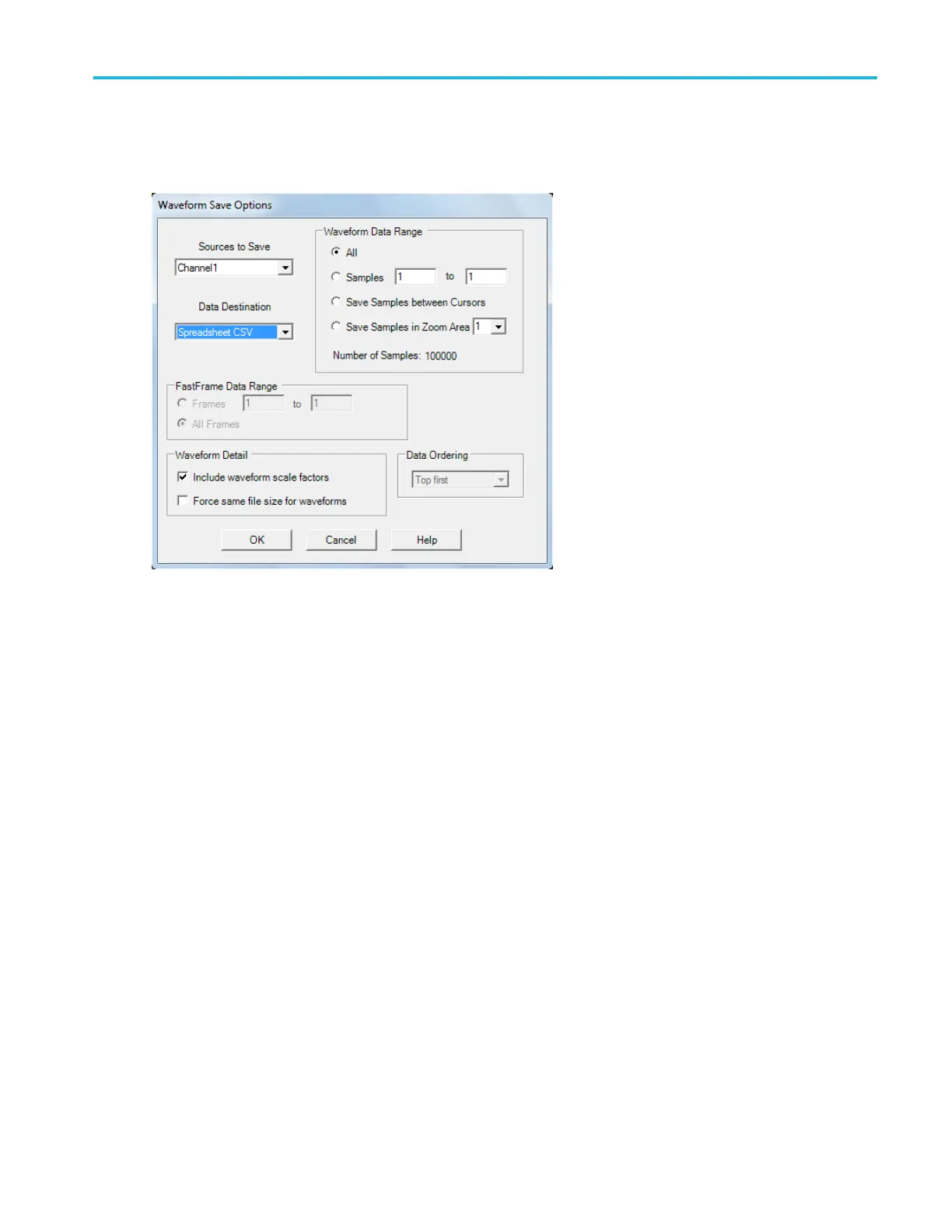

Overview. Use the Waveform Save Options dialog box to set the parameters for the waveform you want to save.

Oscilloscope reference

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 805

Default Chapter5
