Web interface Home page

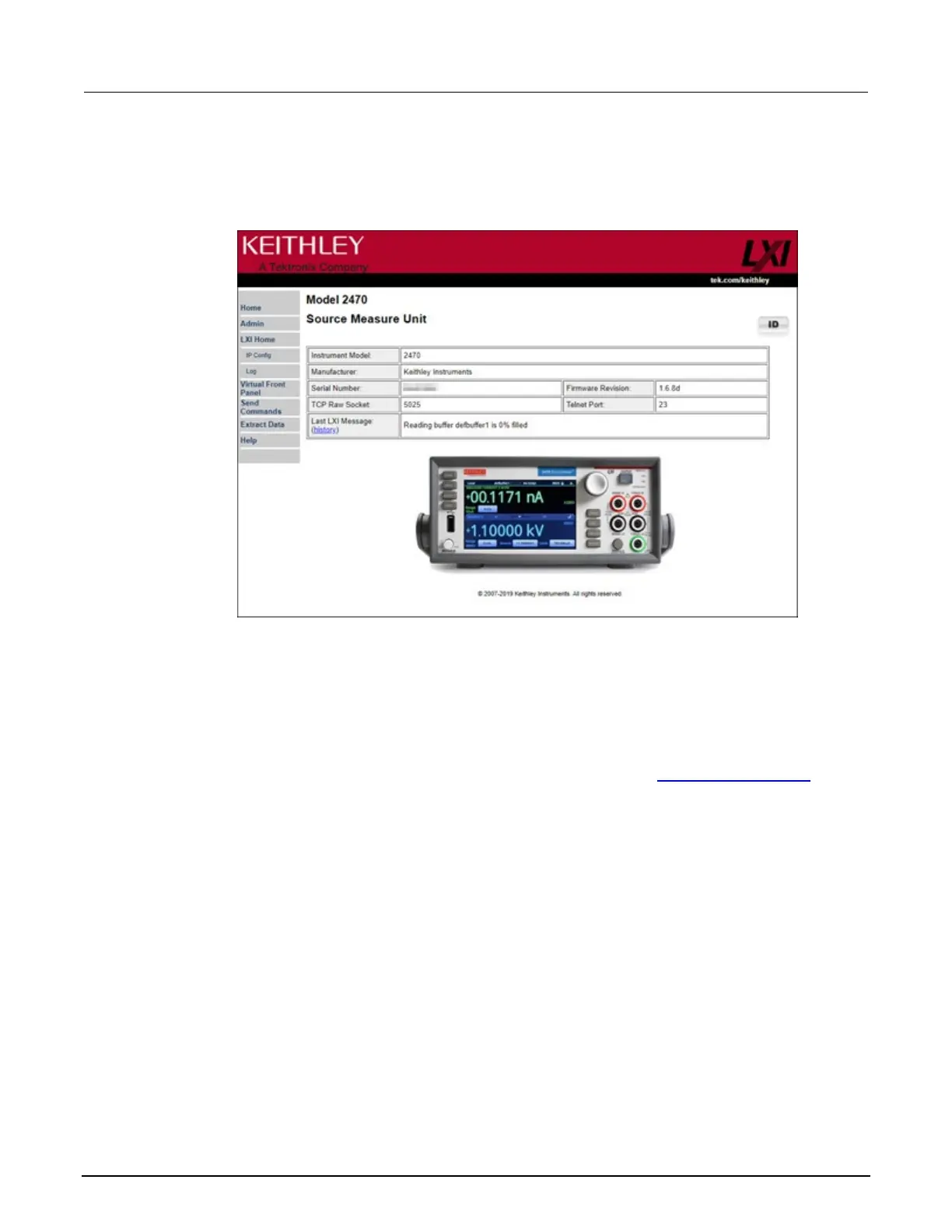

Figure 18: 2470 web interface Home page
The Home page of the instrument provides information about the instrument. It includes:
• The instrument model number, manufacturer, serial number, and firmware revision number.
• The TCP Raw Socket number and Telnet Port number.
• The last LXI message. The history link opens the LXI Home page.
• The ID button, which allows you to identify the instrument. Refer to Identify the instrument (on
page 3-14).
Identify the instrument
If you have a bank of instruments, you can select the ID button to determine which one you are
communicating with.
To identify the instrument:
1. On the Home page, select the ID button. The button turns green and the LAN status indicator on
the
instrument blinks. On instruments with a front-panel interface, the System Communications
menu also opens and the LXI LAN indicator on the LAN tab blinks.
2. Select the ID button again to return the button to its original color and return the LAN status
indicators to steady on.
