6: Measure I-V characteristics of FETs Model 2470 High Voltage SourceMeter Instrument
User's Manual
6-6 2470-900-01 Rev. B / August 2019

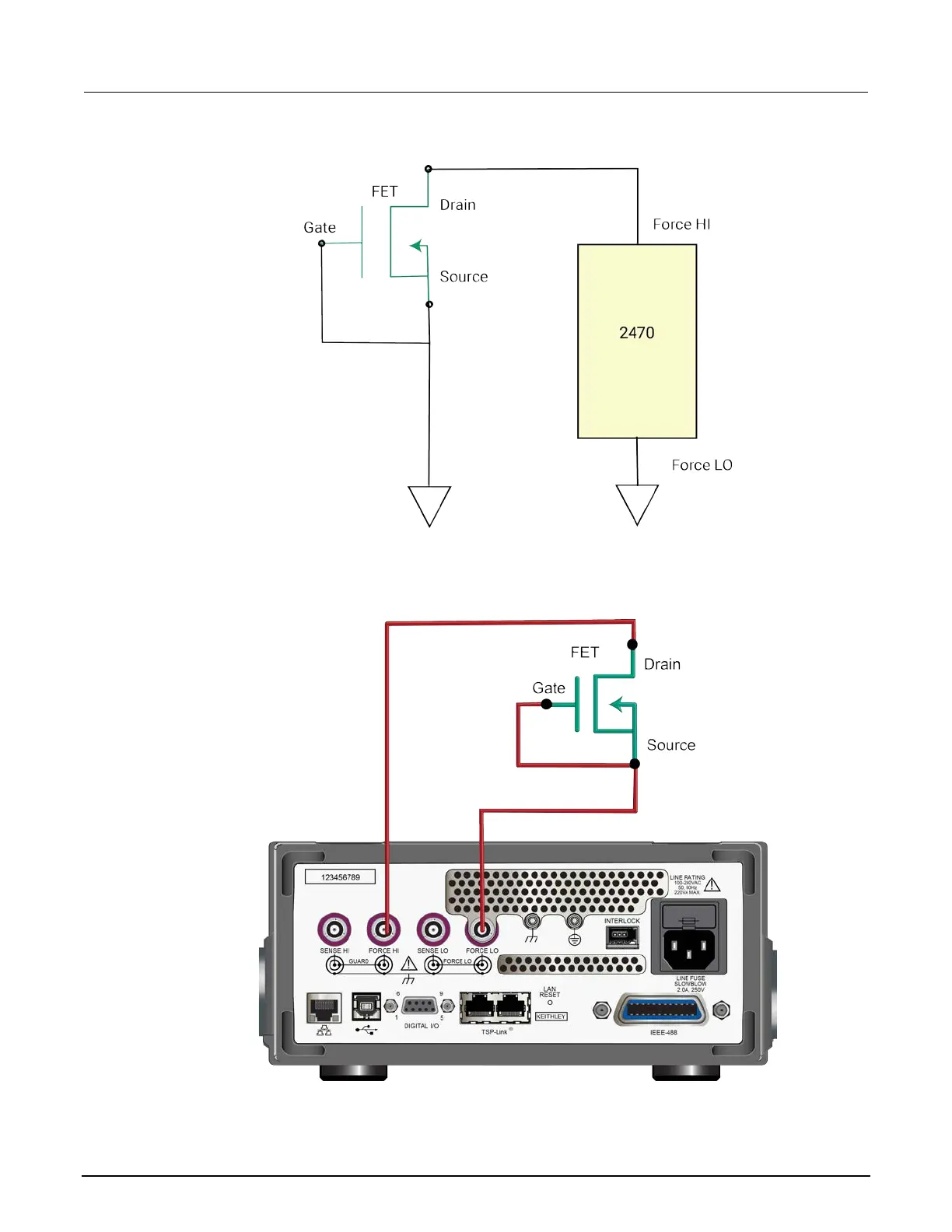

Figure 31: Drain leakage current measurement device connections
The following figure shows the connections from the rear-panel terminals of the 2470.
Figure 32: Drain leakage current measurement rear-panel terminal connections
