Get Acquainted with the Instrument

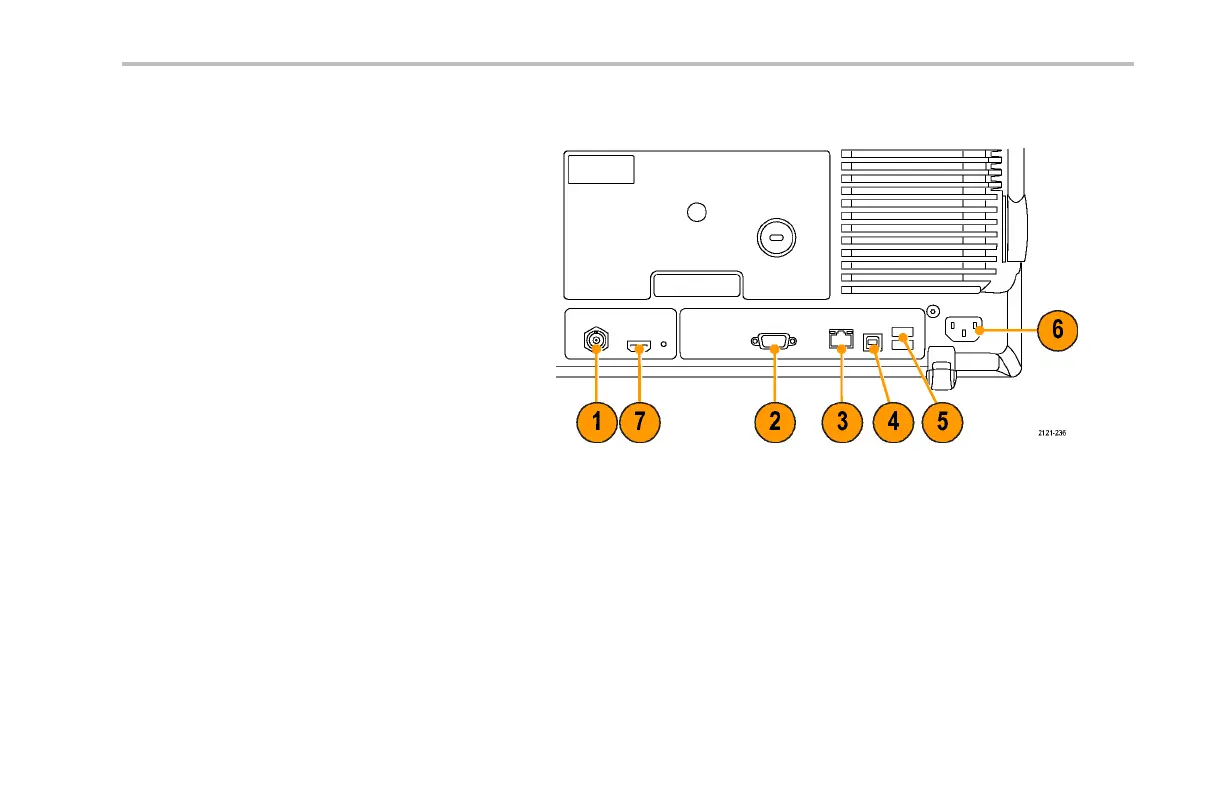

Rear-Panel Connectors
1. Trigger Out. U se the trigger signal output
to synchronize other test equipment
with your oscilloscope. A LOW to
HIGH transition indicates that th e trigger
occurred. The logic level for Vout (HI) is
≥2.5V open circuit; ≥1.0Vintoa50Ω load
to ground. The logic level f or Vout (LO) is
≤0.7 V into a load of ≤4mA;≤0.25 V into a
50Ω load to ground.
2. XGA Out. Use the XGA Video port (DB-15
female connector) to show the oscilloscope
display on an external monitor or projector.
3. LAN. Use the LAN (Ethernet) port (RJ-45
connector) to connect the oscilloscope to a
10/100 Base-T local area network.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 79
